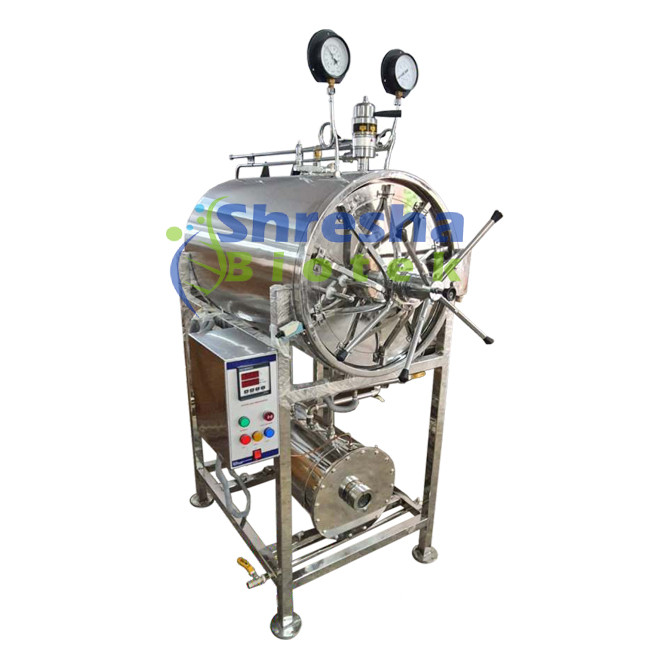

CYLINDRICAL STEAM STERILISER

Product Code: DR M4 CAC

Categories: AUTOCLAVES & STERILISATIONS, CENTRAL STERILE SERVICES DEPARTMENT INSTRUMENTS, CYLINDRICAL, HORIZONTAL & VERTICAL TYPE AUTOCLAVES

FEATURES

Solenoid valves
Vacuum Drying
Chamber Condensate Line with Steam Trap & chuck valve
Digital Temperature Gauge
Digital Pressure Gauges for Steam Generator
Jacket & Chamber
Digital Timer
Water Level Indicator & Sight Glass
Expandable Silicon Rubber Door Gasket
Audiovisual Alarms System

S.NO.	MODEL	DESCRIPTION	CHAMBER SIZE (MM)	CHAMBER VOLUME
1	DR M4 CAC S150	Horizontal Cylindrical Automatic Single Door	400 Dia x 1200 L	150 Ltr
2	DR M4 CAC D150	Horizontal Cylindrical Automatic Double Door	400 Dia x 1200 L	150 Ltr
3	DR M4 CAC S175	Horizontal Cylindrical Automatic Single Door	500 Dia x 900 L	175 Ltr
4	DR M4 CAC D175	Horizontal Cylindrical Automatic Double Door	500 Dia x 900 L	175 Ltr
5	DR M4 CAC S235	Horizontal Cylindrical Automatic Single Door	500 Dia x 1200 L	235 Ltr
6	DR M4 CAC D235	Horizontal Cylindrical Automatic Double Door	500 Dia x 1200 L	235 Ltr
7	DR M4 CAC S340	Horizontal Cylindrical Automatic Single Door	600 Dia x 1200 L	340 Ltr

Related products

TABLE TOP FRONT LOADING

Advantages:

Sterilizing, exhaust of water & steam drying are fully automatic.
Requires a sterilizing time of just 7 minutes at 134°C (instead of 20 minutes at 121°C).
A totally hassle and tension free sterilizer which can even be kept inside an operation theatre.
Results reproducible because full cycle is automatic, requiring no human intervention.
Single lever pronged closure system with patented Silicone Gasket (registered design No. 208774.)
µP Controller with following parameters programmable by user: Sterilizer Time: up to 99 minutes. Sterilizing Temperature: up to 134°C. Drying time: up to 99 minutes.
Valves for water filing and exhaust.
Drying with door open facility.

Model	Capacity	Inner Dimensions	Tray	Gross Dimension / Weight
DR T2FL AC01	16 L	230 x 400 mm	2 trays	870 x 840 x 740 mm / 81.4 kg
DR T2FL AC02	22 L	250 x 450 mm	3 trays	840 x 810 x 740 mm / 81.4 kg

Model	Working Chamber Size / Capacity
DR T2FL AC A1	300 x 500 mm / 35 L
DR T2FL AC A2	400 x 600mm / 75 L

VERTICAL AUTOCLAVE

S.NO.	MODEL	DESCRIPTION	CHAMBER SIZE (MM)	CHAMBER VOLUME
1	DR VAC HM 3WD75	Vertical, Triple Walled, Basic with Drying System	400 Dia x 600 H	75 Ltr
2	DR VAC HM 2W75	Vertical, Double Walled, Basic	400 Dia x 600 H	75 Ltr
3	DR VAC HM 2W35	Vertical, Double Walled, Basic	300 Dia x 500 H	35 Ltr

S.NO.	MODEL	DESCRIPTION	CHAMBER SIZE (MM)	CHAMBER VOLUME
1	DR VAC HM 3WST75	Vertical, High Pressure, Triple Walled, Steam Storage with PLC Controlled Temperature, Low Water Cut-off, Timer,Alarm	400 Dia x 600 H	75 Ltr
2	DR VAC HM 3WS75	Vertical, High Pressure, Triple Walled, Steam Storage with PLC Controlled Temperature, Low Water Cut-off	400 Dia x 600 H	75 Ltr

HORIZONTAL AUTOCLAVE

Model	DR 42M HAC 234U	DR 42M HAC 432U	DR 42M HAC 540U	DR 42M HAC 648U	DR 42M HAC 864U
Model	DR 42M HAC 234T	DR 42M HAC 432T	DR 42M HAC 540T	DR 42M HAC 648T	DR 42M HAC 864T
Capacity (L)	324	432	540	648	864
Chamber Dim (mm)	600 x 600 x 900	600 x 600 x 1200	600 x 600 x 1500	600 x 900 x 1200	600 x 900 x 1600
Door	Single Door – for models ending with ‘U’ Double Door – for models ending with ‘T’
Max Operating Parameters	206.8 kPA (30 psi) / 135˚C / Vacuum

Model No: DR-STZ-SS
Type of Product: Instrument Sterilizer
Size: 30.48×20.32×15.24 cm
Material: Stainless Steel
Application: Hospital, Laboratory, Clinics
Power: 2KW
Voltage: 220 v
Color: Silver
