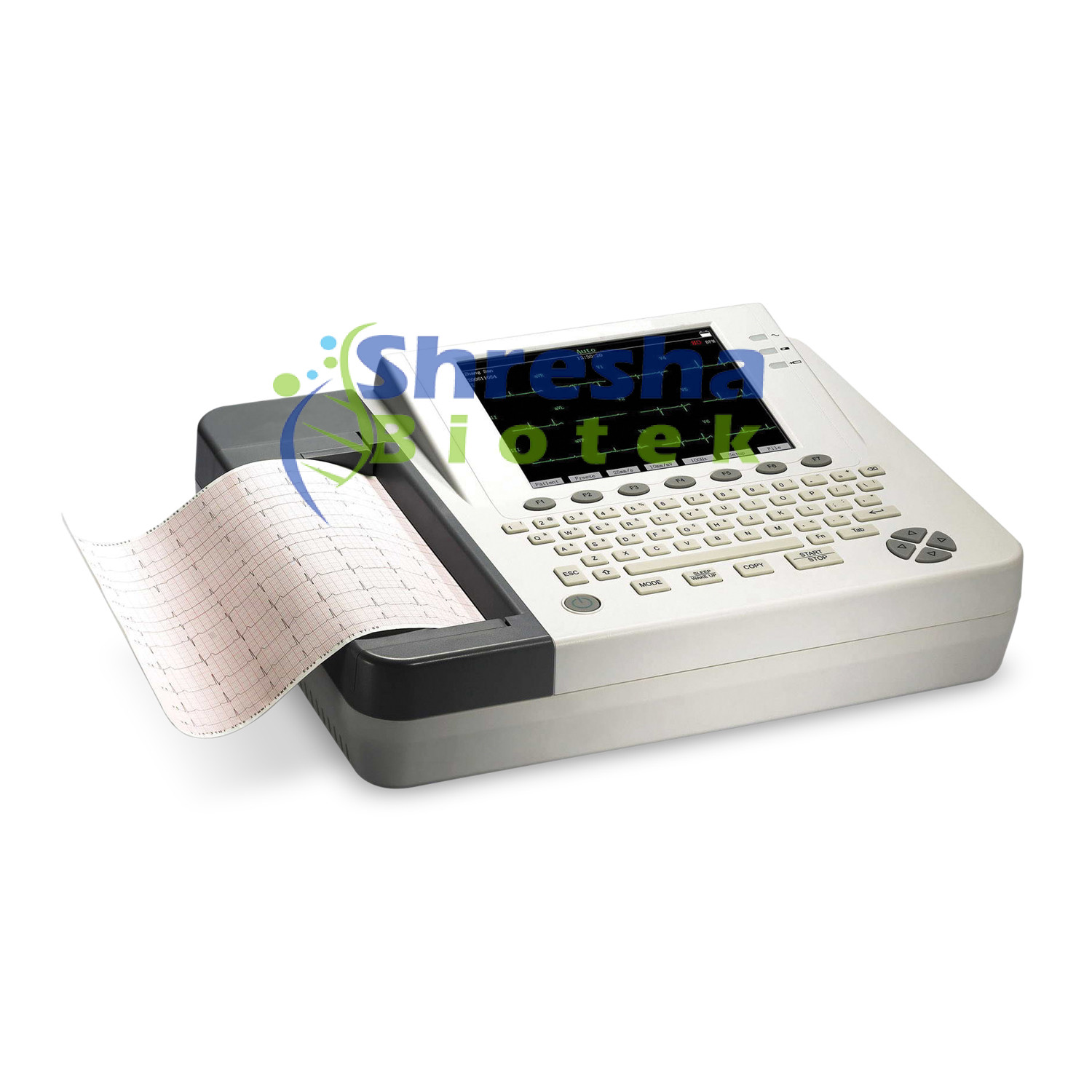

Electrocardiograph (12 Channel)

Electrocardiograph (12 Channel)

Product Code: N/A
Categories: ,

       Features

  • High resolution 8 inch color TFT with touch screen
  • Suitable for clinics, hospitals and outdoor camps
  • On screen display of 3/6/12- lead ECG with interpretation
  • Compact light weight and portable with carry handle
  • Lead-off and printer paper out indication
  • LED indicators for charging and AC/DC operation
  • In-built thermal printer with auto and manual mode
  • Digital filters to eliminate baseline drift, AC and EMG interface
  • Isolation protection against defibrillation
  • Soft touch alphanumeric and on screen virtual pop-up keyboard for data input
Electrocardiograph (12 Channel)

Price Enquiry Form

Price Form
  • A/D Resolution : 24 Bit
  • Lead Selection : Standard 12 Leads
  • Notch Filter : 50/60 Hz
  • Noise Level : ≤12µVp-p
  • Acquisition : Auto/Manual
  • Memory : 1000 patients
  • Input impedance : ≥50M ohm(10Hz)
  • Frequency Response : 0.05-150Hz
  • CMRR : > 60 dB,> 100 dB
  • Time Constant : ≥3.2 sec
  • Sensitivity : 2.5, 5, 10, 20, 40mm/mV
  • Measurement : HR, P-R interval, P Duration, QRS Duration, T Duration,
    Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5) amplitude,
    S(V1) amplitude, R(V5)+S(V1) Amplitude

Related products

Sphygmomanometer Mercurial (Floor Model)

Sphygmomanometer Mercurial (Floor Model)

Read more

Sphygmomanometer Mercurial (Floor Model)

Specifications:

  • Measurement Method: Manual

  • Measurement Range: 0 – 300 mmHg

  • Accuracy: ±2 mmHg

  • Graduation: 2 mmHg increments

  • Cuff Size: 22 – 42 cm

  • Bladder Material: Latex or PVC, 2-tube system

  • Bulb Type: Rubber inflation bulb with chrome-plated release valve

  • Valve Type: Precision screw-type air control

  • Mercury Column: Glass tube with metal scale backing

  • Stand Type: Height-adjustable pole with 5-leg wheeled base

  • Tubing: Extendable tubing

  • Unit Height: Adjustable from 900 mm to 1300 mm

  • Weight: 4.5 – 6 kg

  • Operating Temperature: 10°C – 40°C

  • Storage Temperature: -10°C – 50°C

Read more
Pulse Oximeter (Fingertip)

Pulse Oximeter (Fingertip)

Read more

Pulse Oximeter (Fingertip)

Specifications

  • Measurement Parameters: SpOâ‚‚ (Oxygen Saturation) & Pulse Rate

  • SpOâ‚‚ Measurement Range: 70% – 100%

  • Pulse Rate Range: 30 – 250 bpm

  • Accuracy (SpOâ‚‚): ±2%

  • Accuracy (Pulse Rate): ±2 bpm or ±2%

  • Display Type: OLED or LED

  • Power Supply: 2 × AAA batteries

  • Battery Life: ~20 – 30 hours of continuous use

  • Weight: Approx. 50 – 60 grams

  • Operating Temperature: 5°C – 40°C (41°F – 104°F)

  • Storage Temperature: -10°C – 50°C

Read more
Electrocardiograph (1 Channel)

Electrocardiograph (1 Channel)

Read more

Electrocardiograph (1 Channel)

Technical Specifications

  • A/D Resolution: 10 Bit
  • Lead Selection: Standard 12 Leads
  • Filters: Low pass filter: 35, 100Hz , High pass filter: 0.05Hz, Notch filter 50 Hz (on/off)
  • Acquisition : Auto/Manual
  • Memory : Last patient
  • Input impedance : >100 M ohm
  • Frequency Response        0.05-100Hz
  • CMRR : 100dB
  • Time Constant : 3.2 sec
  • Sensitivity : 5mm/mV, 10mm/mV,20mm/mV
  • Leakage Current : <10 micro Ampere

Read more
Diagnostic Otoscope and Ophthalmoscope Set

Diagnostic Otoscope and Ophthalmoscope Set

Read more

Diagnostic Otoscope and Ophthalmoscope Set

Basic Specifications

  • Light Source: LED or Halogen

  • Power: AA batteries or rechargeable handle

  • Magnification: Otoscope – 3x; Ophthalmoscope – adjustable lens wheel

  • Lens Range: ±20 diopters

  • Case: Compact and protective with foam interior

Read more
