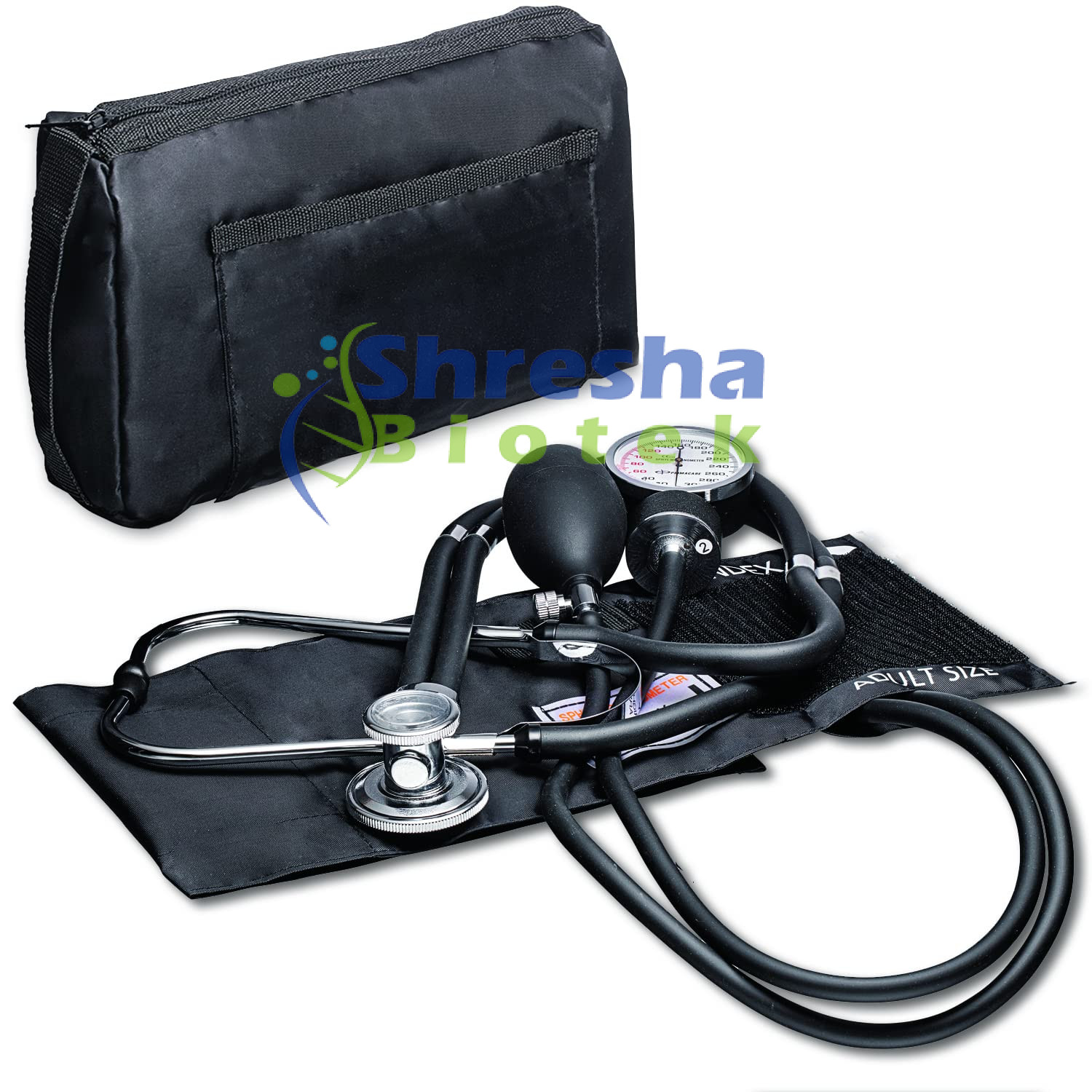

Manual blood pressure monitor with aneroid gauge
Universal cuff fits a wide range of arm sizes
Easy-to-read dial with clear markings
Durable metal manometer casing for long-term use
Adjustable Velcro cuff for secure and comfortable fit
Precision air-release valve for controlled deflation
Latex or latex-free inflation system
Compatible with all standard stethoscopes
Portable and suitable for clinical or home use
Includes carry pouch for storage and transport
Measurement Method: Manual (Aneroid, Auscultatory)
Measurement Range: 0 – 300 mmHg
Accuracy: ±3 mmHg
Cuff Size Range: 22 – 42 cm
Dial Diameter: 50 mm
Manometer Type: Aneroid with 2 mmHg graduation
Bladder Material: Latex or PVC, 2-tube design
Bulb: Rubber inflation bulb with chrome-plated valve
Valve Type: Screw-type precision air release
Stethoscope: Optional, single-head compatible
Weight: 500 g
Operating Temperature: 5°C – 40°C
Storage Temperature: -10°C – 50°C
Knee Rest Angle: 0° – 35°
Platform Type: 4-section, ventilated
Frame Material:Â steel with epoxy coating
Head & Foot Panels: ABS, detachable with secure locking system
Side Rails: Collapsible or swing-down, aluminum or ABS
Accessories Included: IV pole socket, drainage bag holders, mattress retainers
Height Adjustment Range (Hi-Lo): 450 mm – 750 mm
Backrest Angle: 0° – 75° (manual crank)
Knee Rest Angle: 0° – 35° (manual crank)
Trendelenburg: 0° – 12° (manual)
Reverse Trendelenburg: 0° – 12° (manual)
Platform Sections: 4-section perforated MS platform
Frame Material:Â steel with epoxy powder coating
Head & Foot Panels: ABS, detachable
Side Rails: Collapsible, aluminum or ABS
Crank System: 3 separate crank handles (backrest, knee rest, Hi-Lo)
Safe Working Load: 200 – 250 kg
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube system
Bulb Type: Rubber inflation bulb with chrome-plated release valve
Valve Type: Precision screw-type air control
Mercury Column: Glass tube with metal scale backing
Stand Type: Height-adjustable pole with 5-leg wheeled base
Tubing: Extendable tubing
Unit Height: Adjustable from 900 mm to 1300 mm
Weight: 4.5 – 6 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Light Source: High-efficiency LED
Color Temperature: Approx. 5500K – 6500K (natural white light)
Illuminance: 50,000 – 100,000 lux at a working distance of 30 cm
Battery Type: Rechargeable lithium-ion battery
Battery Life: Typically 4 – 8 hours per full charge
Charging Time: 3 – 4 hours
Spot Size: Adjustable from ~10 mm to 100 mm at 30 cm
Headlight Weight: Around 200 – 350 grams (without battery)
LED Lifespan: Up to 50,000 hours
Power Source: AC adapter with battery pack
Material: Medical-grade plastic and metal components
Usage Environment: Clinical, surgical, dental, and veterinary settings
