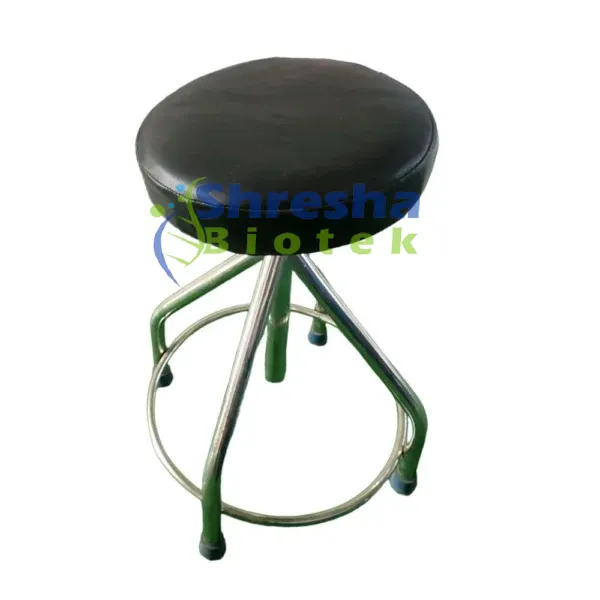

Features
Sturdy and compact design suitable for clinical and hospital environments
Constructed with stainless steel or epoxy powder-coated mild steel frame
Comfortable round cushioned seat with high-density foam
Covered in washable, anti-microbial, and fire-retardant vinyl upholstery
Height adjustable with smooth screw or pneumatic mechanism (optional)
Mounted on durable swivel castors for easy movement
Non-slip rubber stoppers
Lightweight and easy to reposition as needed
Ideal for attendants, medical staff, and procedural support
Specifications
Material: Stainless Steel or powder-coated mild steel
Seat: Padded round seat with high-density foam
Upholstery: Medical-grade vinyl, water-resistant and easy to clean
Height Adjustment: Approx. 450mm – 650mm (manual or pneumatic)
Base Options:
4-legged base with rubber tips (fixed type)
5-legged base with swivel castors (mobile type)
Seat Diameter: Approx. 300mm – 350mm
Finish: Matt stainless steel or epoxy-coated
Weight Capacity: Up to 100–120 kg
Usage: Clinics, hospitals, examination rooms, laboratories
Optional Features: Backrest, foot ring, anti-static castors
Measurement Method: Oscillometric manual inflation
Measurement Range:
– Systolic: 60 – 260 mmHg
– Diastolic: 40 – 199 mmHg
– Pulse Rate: 40 – 180 bpm
Accuracy:
– Pressure: ±3 mmHg
– Pulse: ±5%
Display Type: Large LCD with backlight
Cuff Size: 22 – 42 cm
Auto Power Off: After 1 minute of inactivity
Operating Temperature: 5°C – 40°C
Humidity Range: 15% – 85% RH non-condensing
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube system
Bulb Type: Rubber inflation bulb with chrome-plated release valve
Valve Type: Precision screw-type air control
Mercury Column: Glass tube with metal scale backing
Stand Type: Height-adjustable pole with 5-leg wheeled base
Tubing: Extendable tubing
Unit Height: Adjustable from 900 mm to 1300 mm
Weight: 4.5 – 6 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube system
Bulb Type: Rubber inflation bulb with chrome-plated valve
Valve Type: Precision screw-type air release
Mercury Column: Glass tube with metal backing scale
Mounting: Wall-mount bracket with hardware
Weight: 2.5 – 3.2 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
