Features:

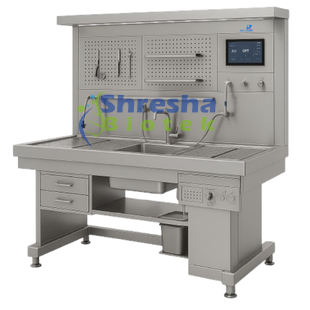

Wall-mounted design with adjustable height (850 to 1200 mm)
Stainless steel AISI-304 polished construction
Corner-free construction to prevent dirt accumulation
Integrated central sink (approx. 400 x 400 mm)
Medical hot/cold faucet with vacuum switch
Medical shower with hydraulic hose and PVC cover
Dissection trays (perforated, removable, 1 mm holes x 2 mm)
Formalin sink with pre-filter, cover, and automatic dispensing pedal
Formalin dispenser tap and mixer
Polyethylene cutting board included
2 storage drawers and 2 shelves
4 electric sockets for equipment
Magnetic instrument support board and instrument holding shelf
Waste bucket and waste disposal system included
Station-trolley anchoring system
Magnetic support for tools
Careneed inferior base and leveling feet
UVC disinfection lighting with eye protection
LED lighting for work area
Ducts for external ventilation connection
Emergency automatic ventilation for formalin spill
Supplied with ISO 9001 and ISO 13485 certification
Specifications:
Stainless steel thickness: 1.5–2 mm
Dimensions: approx. 2400 L x 800 W x 1750 H mm
Ventilation system with centrifugal electro-fan motors
Adjustable suction speed, max capacity 1404 m³/h
Aluminium axis filters with potassium permanganate for formaldehyde
Touch screen control for ventilation and filter monitoring
Filter life control with notification at 800 hrs
Visual alarms and ON/OFF lighting controls
Displays splash shield control, ventilation speed %, filter hours
Water-tight safety covers on switches
Electrical supply: 220V ±20V, 50Hz
Formalin tank storage with ventilated lower enclosure
Height adjustable work area with 350 mm range
Supplied with 2 perforated removable trays (handling holes at corners)
Top Dimensions: Approx. 760 mm (L) × 400 mm (W)
Height Adjustment Range: 750 mm to 1050 mm
Top Material: Laminated wood or MDF with PVC edge banding
Frame Material:Â steel or stainless steel, epoxy powder coated or polished
Height Adjustment: Manual screw knob or pneumatic gas spring
Castors: 50 mm swivel type, 2 with locking brakes
Load Capacity: Approx. 10–15 kg
Finish: Powder coated frame, laminated top
Material: High-density polyethylene (HDPE) or ABS plastic
Weight Capacity: 150 – 180 kg
Net Weight: Approx. 6 – 8 kg
Handholds: 12–16 hand grips (integrated into the body)
Strap Slots: 3 or more, positioned for optimal restraint placement
Radiolucent: Yes (safe for X-ray, CT, and MRI scanning)
Waterproof: Yes (buoyant and suitable for water rescues)
Finish: Seamless, molded, smooth surface
Accessories (Optional): Head immobilizer, restraining straps
Top Platform: 2-section with backrest elevation (0°–75°)
Frame Material:Â steel (epoxy powder coated) or stainless steel
Backrest Adjustment: Manual
Mattress:
– Thickness: 50–75 mm
– Material: PU foam
– Cover: Waterproof, antibacterial PVC
Side Rails: Collapsible or swing-away, stainless steel or aluminum
Castors: 150 mm swivel wheels, 2 with locking brakes
Height Adjustment: Manual crank or fixed
IV Pole: Stainless steel, height adjustable
Oxygen Cylinder Holder: Integrated side or underframe holder
Corner Buffers: Rubberized, impact-resistant
Safe Working Load: 150 – 200 kg
Finish: Epoxy powder coated or polished stainless steel
Knee Rest Elevation: 0° – 35°
Platform Type: Four-section perforated CRCA steel
Frame Material: CRCA steel with epoxy powder coating
Head & Foot Panels: Mild steel or ABS (optional)
Crank System: 2 smooth manual cranks with foldable handles
Balkan Frame: Overhead tubular structure, fixed to bed, with pulleys and traction setup points
Traction Points: Multiple horizontal and vertical attachment points
Safe Working Load: 180 – 200 kg
