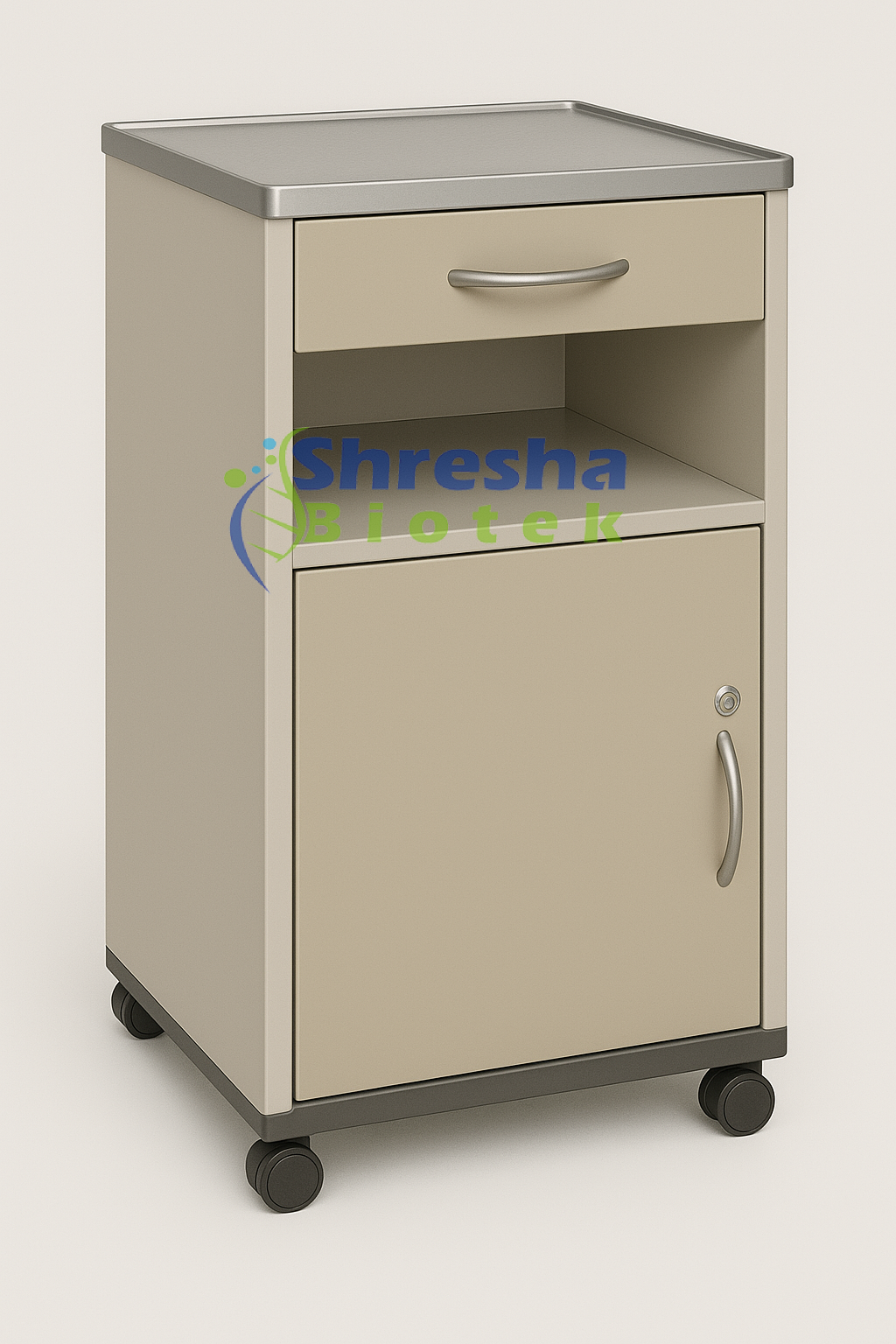

High-quality bedside locker designed for enhanced functionality and modern hospital aesthetics
ABS or laminated top surface with 3-side raised SS railing for safety and hygiene
One smooth-gliding drawer and one spacious cabinet with door for secure storage
Constructed from CRCA steel with durable epoxy powder coating
Elegant design with rounded edges for patient safety
Four swivel castors for smooth, quiet movement; two with locking brakes
Ventilation slots for airflow inside the cabinet
Ergonomic recessed handles for easy access
Designed for ICUs, deluxe wards, private rooms, and high-end hospital setups
Top Surface: ABS or laminated board with SS side rail (3 sides)
Body Material:Â steel, pre-treated and epoxy powder coated
Storage Configuration:
– 1 drawer with smooth telescopic runners
– 1 hinged-door cabinet
Side Rail: Stainless steel, raised on 3 sides
Castors: 50 mm – 75 mm swivel type, 2 with brakes
Ventilation: Perforated cabinet for internal air circulation
Finish: High-quality epoxy powder coating (custom colors available)
Load Capacity (Top Surface): Up to 25–30 kg
Height Adjustment Range (Hi-Lo): 450 mm – 750 mm
Backrest Angle: 0° – 75° (manual crank)
Knee Rest Angle: 0° – 35° (manual crank)
Trendelenburg: 0° – 12° (manual)
Reverse Trendelenburg: 0° – 12° (manual)
Platform Sections: 4-section perforated MS platform
Frame Material: CRCA steel with epoxy powder coating
Head & Foot Panels: ABS, detachable
Side Rails: Collapsible, aluminum or ABS
Crank System: 3 separate crank handles (backrest, knee rest, Hi-Lo)
Safe Working Load: 200 – 250 kg
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube design
Bulb: Rubber inflation bulb with air-release valve
Valve Type: Chrome-plated screw-type
Mercury Column: Glass tube with metal scale backing
Base Material: Powder-coated metal or ABS plastic
Weight: 2.5 – 3 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Measurement Parameters:
– SpO₂ (Oxygen Saturation): 0% – 100%
– Pulse Rate: 30 – 250 bpm
SpO₂ Accuracy: ±2% (for 70% – 100% range)
Pulse Rate Accuracy: ±2 bpm or ±2%
Display Type: Large LED or TFT screen
Waveform Display: Plethysmograph (real-time pulse waveform)
Alarm Functions: Adjustable thresholds for SpOâ‚‚ and PR, with sound and visual indicators
Power Supply:
– AC mains (100 – 240V, 50/60 Hz)
– Built-in rechargeable battery
Battery Backup: 4 – 8 hours of operation
Data Storage: Up to 72 hours or more
Connectivity: USB / RS232 / LAN
Weight: ~1.5 – 3 kg
Operating Environment:
– Temperature: 5°C – 40°C
– Humidity: ≤85% non-condensing
Light Source: High-efficiency LED
Color Temperature: Approx. 5500K – 6500K (natural white light)
Illuminance: 50,000 – 100,000 lux at a working distance of 30 cm
Battery Type: Rechargeable lithium-ion battery
Battery Life: Typically 4 – 8 hours per full charge
Charging Time: 3 – 4 hours
Spot Size: Adjustable from ~10 mm to 100 mm at 30 cm
Headlight Weight: Around 200 – 350 grams (without battery)
LED Lifespan: Up to 50,000 hours
Power Source: AC adapter with battery pack
Material: Medical-grade plastic and metal components
Usage Environment: Clinical, surgical, dental, and veterinary settings
