Features:

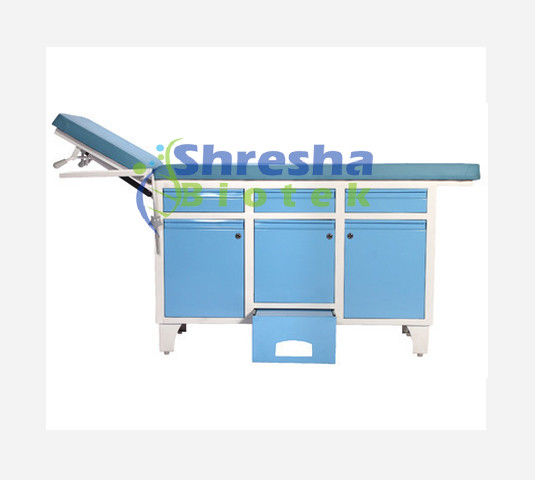

Examination table integrated with storage cabinet and drawers for space efficiency
Padded top section with high-density foam and easy-to-clean synthetic cover
Backrest manually adjustable for patient positioning
Built-in drawers and cabinet beneath the table for storing medical instruments and supplies
Strong and stable construction with smooth, rounded edges for safety
Easy access to storage from either side (in select models)
Suitable for general examinations in clinics, hospitals, and diagnostic centers
Available with both anti-skid rubber shoes and smooth-rolling castors with brakes for mobility and stability
Specifications:
Frame material: Mild steel or stainless steel with epoxy powder coating
Upholstery: Water-resistant, stain-resistant synthetic leather or rexine
Overall dimensions: Approx. 1800 x 600 x 800 mm
Mattress: 50–75 mm thick foam padding
Backrest adjustment: Up to approx. 70°, manually operated
Storage: 2–3 drawers and 1–2 cabinet sections, depending on model
Base: Fitted with anti-skid rubber shoes and/or lockable castors
Load capacity: Up to 150–180 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 60–85 kg
Height Adjustment Range (Hi-Lo): 450 mm – 750 mm
Backrest Angle: 0° – 75° (manual crank)
Knee Rest Angle: 0° – 35° (manual crank)
Trendelenburg: 0° – 12° (manual)
Reverse Trendelenburg: 0° – 12° (manual)
Platform Sections: 4-section perforated MS platform
Frame Material:Â steel with epoxy powder coating
Head & Foot Panels: ABS, detachable
Side Rails: Collapsible, aluminum or ABS
Crank System: 3 separate crank handles (backrest, knee rest, Hi-Lo)
Safe Working Load: 200 – 250 kg
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube system
Bulb Type: Rubber inflation bulb with chrome-plated release valve
Valve Type: Precision screw-type air control
Mercury Column: Glass tube with metal scale backing
Stand Type: Height-adjustable pole with 5-leg wheeled base
Tubing: Extendable tubing
Unit Height: Adjustable from 900 mm to 1300 mm
Weight: 4.5 – 6 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube system
Bulb Type: Rubber inflation bulb with chrome-plated valve
Valve Type: Precision screw-type air release
Mercury Column: Glass tube with metal backing scale
Mounting: Wall-mount bracket with hardware
Weight: 2.5 – 3.2 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Measurement Method: Oscillometric
Measurement Range:
– Systolic: 60 – 260 mmHg
– Diastolic: 40 – 199 mmHg
– Pulse Rate: 40 – 180 bpm
Measurement Accuracy:
– Pressure: ±3 mmHg
– Pulse: ±5%
Display Type: LCD/LED digital screen
Memory Capacity: 60 – 120 readings per user
Power Supply:Â batteries or AC adapter
Cuff Size: 22 – 42 cm
Auto Power Off: After 1 minute of inactivity
Weight: 300 – 400 g
Operating Temperature: 5°C – 40°C
Humidity Range: 15% – 85% RH non-condensing
