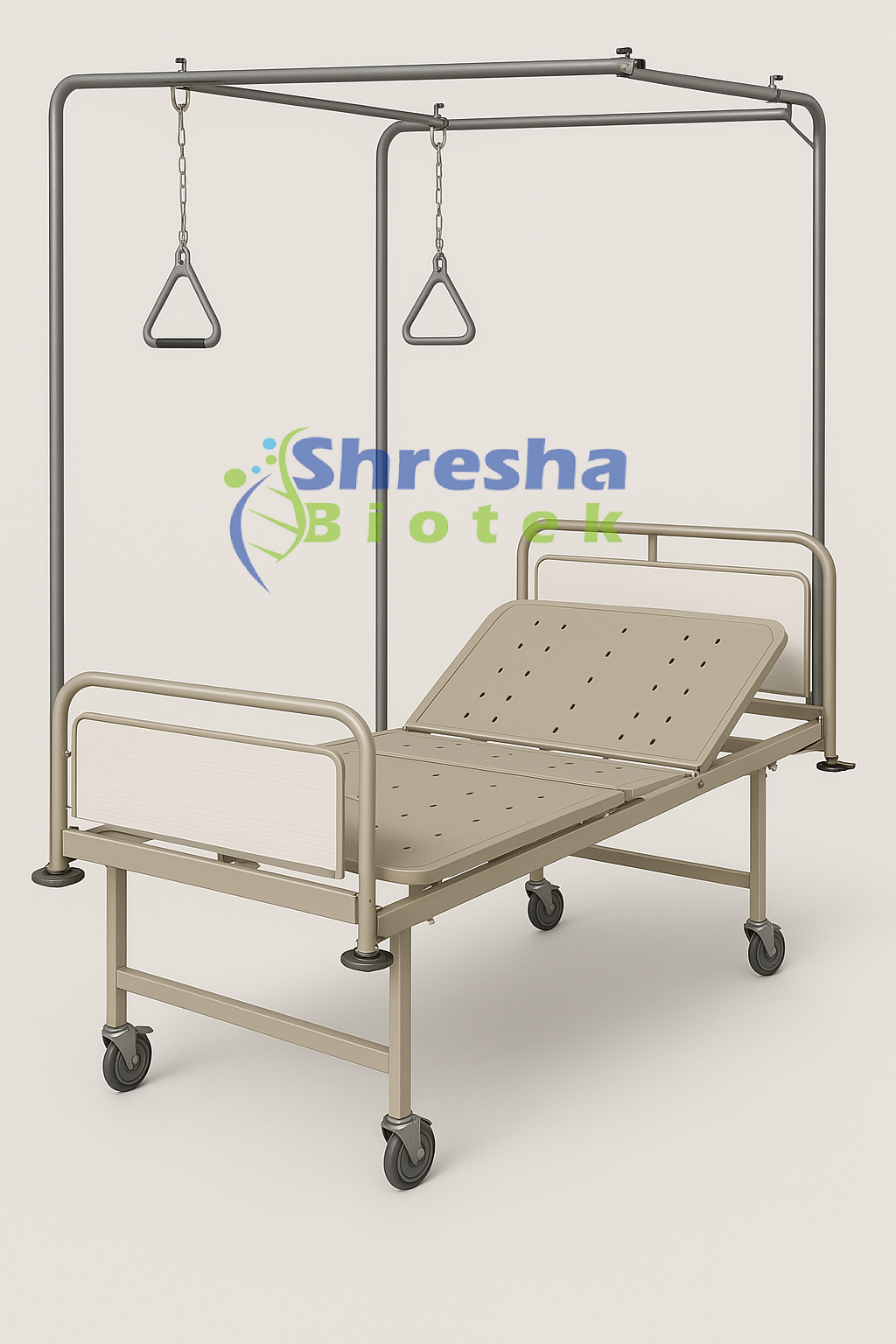

General-purpose Fowler bed with Balkan frame attachment for orthopedic traction
Manual two-function bed with backrest and knee rest adjustment
Four-section perforated mattress platform for ventilation and patient comfort
Sturdy steel Balkan frame with multiple pulleys and hooks for limb suspension
Mild steel frame construction with pre-treated epoxy powder coating
Detachable head and foot panels made of mild steel or optional ABS
IV pole provision and drainage bag holders included
Mounted on smooth castors for mobility; two with locking brakes
Ideal for orthopedic wards, trauma care, and post-operative recovery
Knee Rest Elevation: 0° – 35°
Platform Type: Four-section perforated CRCA steel
Frame Material: CRCA steel with epoxy powder coating
Head & Foot Panels: Mild steel or ABS (optional)
Crank System: 2 smooth manual cranks with foldable handles
Balkan Frame: Overhead tubular structure, fixed to bed, with pulleys and traction setup points
Traction Points: Multiple horizontal and vertical attachment points
Safe Working Load: 180 – 200 kg
Height Adjustment Range (Hi-Lo): 450 mm – 750 mm
Backrest Angle: 0° – 75° (manual crank)
Knee Rest Angle: 0° – 35° (manual crank)
Trendelenburg: 0° – 12° (manual)
Reverse Trendelenburg: 0° – 12° (manual)
Platform Sections: 4-section perforated MS platform
Frame Material: CRCA steel with epoxy powder coating
Head & Foot Panels: ABS, detachable
Side Rails: Collapsible, aluminum or ABS
Crank System: 3 separate crank handles (backrest, knee rest, Hi-Lo)
Safe Working Load: 200 – 250 kg
Overall Dimensions: 2200 mm (L) × 1000 mm (W)
Height Adjustment Range: 450 mm – 750 mm
Backrest Angle: 0° – 75°
Knee Rest Angle: 0° – 35°
Trendelenburg Angle: 0° – 12°
Reverse Trendelenburg Angle: 0° – 12°
Lateral Tilt (Left/Right): ±12°
Frame Material: CRCA steel with epoxy powder coating
Platform Sections: Four-section, ventilated design
Head & Foot Boards: ABS, detachable with locking system
Side Rails: Collapsible aluminum or ABS
Castors: 125 mm diameter, 4 with brakes
Control System: Wired remote with individual function buttons
Power Supply: 220V AC, 50Hz
Battery Backup: 1–2 hours operation
Safe Working Load: 250 kg
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube system
Bulb Type: Rubber inflation bulb with chrome-plated release valve
Valve Type: Precision screw-type air control
Mercury Column: Glass tube with metal scale backing
Stand Type: Height-adjustable pole with 5-leg wheeled base
Tubing: Extendable tubing
Unit Height: Adjustable from 900 mm to 1300 mm
Weight: 4.5 – 6 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube system
Bulb Type: Rubber inflation bulb with chrome-plated valve
Valve Type: Precision screw-type air release
Mercury Column: Glass tube with metal backing scale
Mounting: Wall-mount bracket with hardware
Weight: 2.5 – 3.2 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
