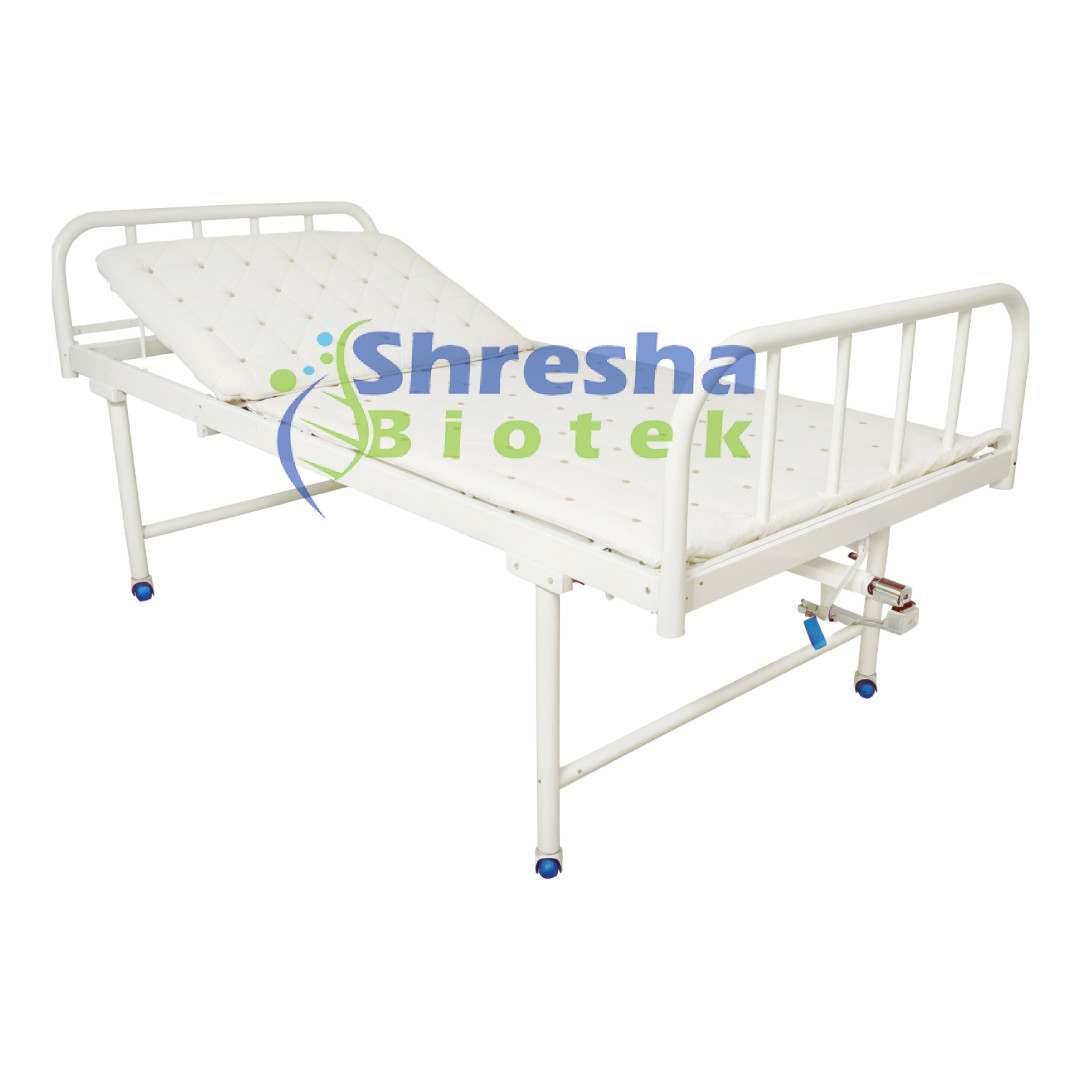

Manual two-function hospital bed for patient positioning
Backrest and knee rest elevation via mechanical cranks
Four-section perforated mattress platform for ventilation and comfort
Mild steel frame construction with durable finish
Detachable head and foot panels
Optional collapsible or fixed side rails for patient safety
Mounted on castors for mobility, with braking system on two wheels
Suitable for general wards, post-op recovery, and home care
Provision for IV pole and urine bag holders
Backrest Adjustment: 0° – 75°
Knee Rest Adjustment: 0° – 35°
Platform Type: Four-section, perforated CRCA steel platform
Frame Material: CRCA steel, pre-treated and powder coated
Head & Foot Panels: Mild steel (standard), ABS (optional)
Side Rails: Optional (fixed or collapsible, aluminum or steel)
Castors: 100 – 125 mm diameter, 2 with brakes
Crank System: 2 manual cranks with foldable handles
Safe Working Load: 180 – 200 kg
Finish: Epoxy powder coated, corrosion-resistant
Accessories Included: IV pole provision, drainage bag hooks
Height Adjustment Range (Hi-Lo): 450 mm – 750 mm
Backrest Angle: 0° – 75° (manual crank)
Knee Rest Angle: 0° – 35° (manual crank)
Trendelenburg: 0° – 12° (manual)
Reverse Trendelenburg: 0° – 12° (manual)
Platform Sections: 4-section perforated MS platform
Frame Material: CRCA steel with epoxy powder coating
Head & Foot Panels: ABS, detachable
Side Rails: Collapsible, aluminum or ABS
Crank System: 3 separate crank handles (backrest, knee rest, Hi-Lo)
Safe Working Load: 200 – 250 kg
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube design
Bulb: Rubber inflation bulb with air-release valve
Valve Type: Chrome-plated screw-type
Mercury Column: Glass tube with metal scale backing
Base Material: Powder-coated metal or ABS plastic
Weight: 2.5 – 3 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Measurement Parameters: SpOâ‚‚ (Oxygen Saturation) & Pulse Rate
SpO₂ Measurement Range: 70% – 100%
Pulse Rate Range: 30 – 250 bpm
Accuracy (SpO₂): ±2%
Accuracy (Pulse Rate): ±2 bpm or ±2%
Display Type: OLED or LED
Power Supply: 2 × AAA batteries
Battery Life: ~20 – 30 hours of continuous use
Weight: Approx. 50 – 60 grams
Operating Temperature: 5°C – 40°C (41°F – 104°F)
Storage Temperature: -10°C – 50°C
Light Source: High-efficiency LED
Color Temperature: Approx. 5500K – 6500K (natural white light)
Illuminance: 50,000 – 100,000 lux at a working distance of 30 cm
Battery Type: Rechargeable lithium-ion battery
Battery Life: Typically 4 – 8 hours per full charge
Charging Time: 3 – 4 hours
Spot Size: Adjustable from ~10 mm to 100 mm at 30 cm
Headlight Weight: Around 200 – 350 grams (without battery)
LED Lifespan: Up to 50,000 hours
Power Source: AC adapter with battery pack
Material: Medical-grade plastic and metal components
Usage Environment: Clinical, surgical, dental, and veterinary settings
