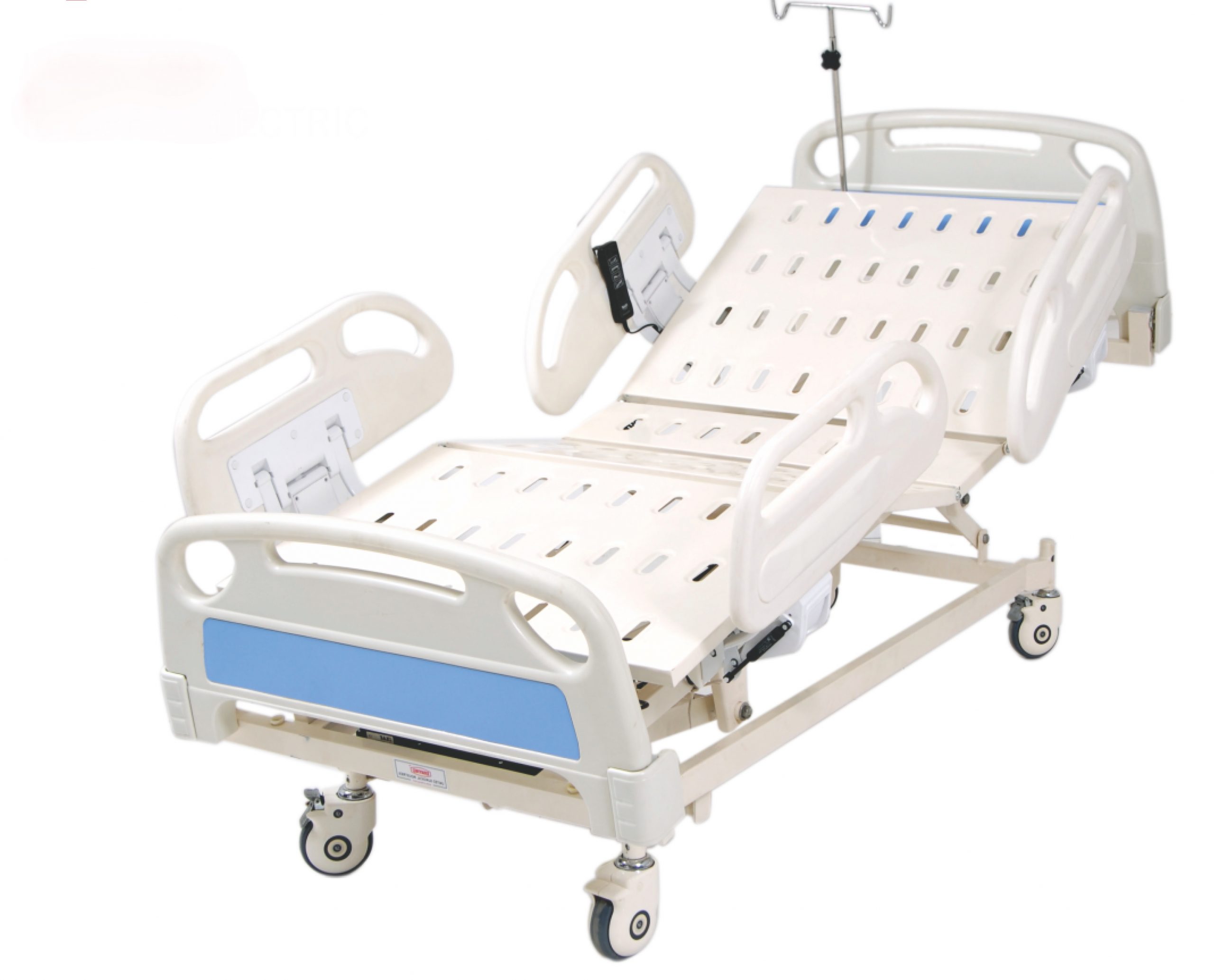

Electrically operated 7-function ICU bed for critical care environments
Remote control handset for easy and precise positioning
Functions include:
Backrest adjustment
Knee rest adjustment
Height adjustment
Trendelenburg position
Reverse Trendelenburg
Left lateral tilt
Right lateral tilt
ABS molded head and foot panels, detachable for emergency access
Four-section perforated MS or ABS mattress platform
Collapsible side rails for patient safety
Central braking system with smooth-rolling castors
Battery backup for uninterrupted operation during power failure
IV pole, drainage hooks, and urine bag holders included
Durable powder-coated or epoxy finish for hygiene and corrosion resistance
Overall Dimensions: 2200 mm (L) × 1000 mm (W)
Height Adjustment Range: 450 mm – 750 mm
Backrest Angle: 0° – 75°
Knee Rest Angle: 0° – 35°
Trendelenburg Angle: 0° – 12°
Reverse Trendelenburg Angle: 0° – 12°
Lateral Tilt (Left/Right): ±12°
Frame Material: CRCA steel with epoxy powder coating
Platform Sections: Four-section, ventilated design
Head & Foot Boards: ABS, detachable with locking system
Side Rails: Collapsible aluminum or ABS
Castors: 125 mm diameter, 4 with brakes
Control System: Wired remote with individual function buttons
Power Supply: 220V AC, 50Hz
Battery Backup: 1–2 hours operation
Safe Working Load: 250 kg
Measurement Method: Oscillometric manual inflation
Measurement Range:
– Systolic: 60 – 260 mmHg
– Diastolic: 40 – 199 mmHg
– Pulse Rate: 40 – 180 bpm
Accuracy:
– Pressure: ±3 mmHg
– Pulse: ±5%
Display Type: Large LCD with backlight
Cuff Size: 22 – 42 cm
Auto Power Off: After 1 minute of inactivity
Operating Temperature: 5°C – 40°C
Humidity Range: 15% – 85% RH non-condensing
Light Source: LED or Halogen
Color Temperature: Approx. 5500K – 6500K (cool white)
Illumination Intensity: Up to 40,000–100,000 lux
Weight: Typically under 400 grams
Operating Time: Depends on intensity setting
Spot Size: Adjustable
Material: High-grade plastic and metal components
Power Supply: AC adapter or battery pack
Usage Duration of Light Source: Up to 50,000 hours
Light Source: LED or Halogen
Power: AA batteries or rechargeable handle
Magnification: Otoscope – 3x; Ophthalmoscope – adjustable lens wheel
Lens Range: ±20 diopters
Case: Compact and protective with foam interior
