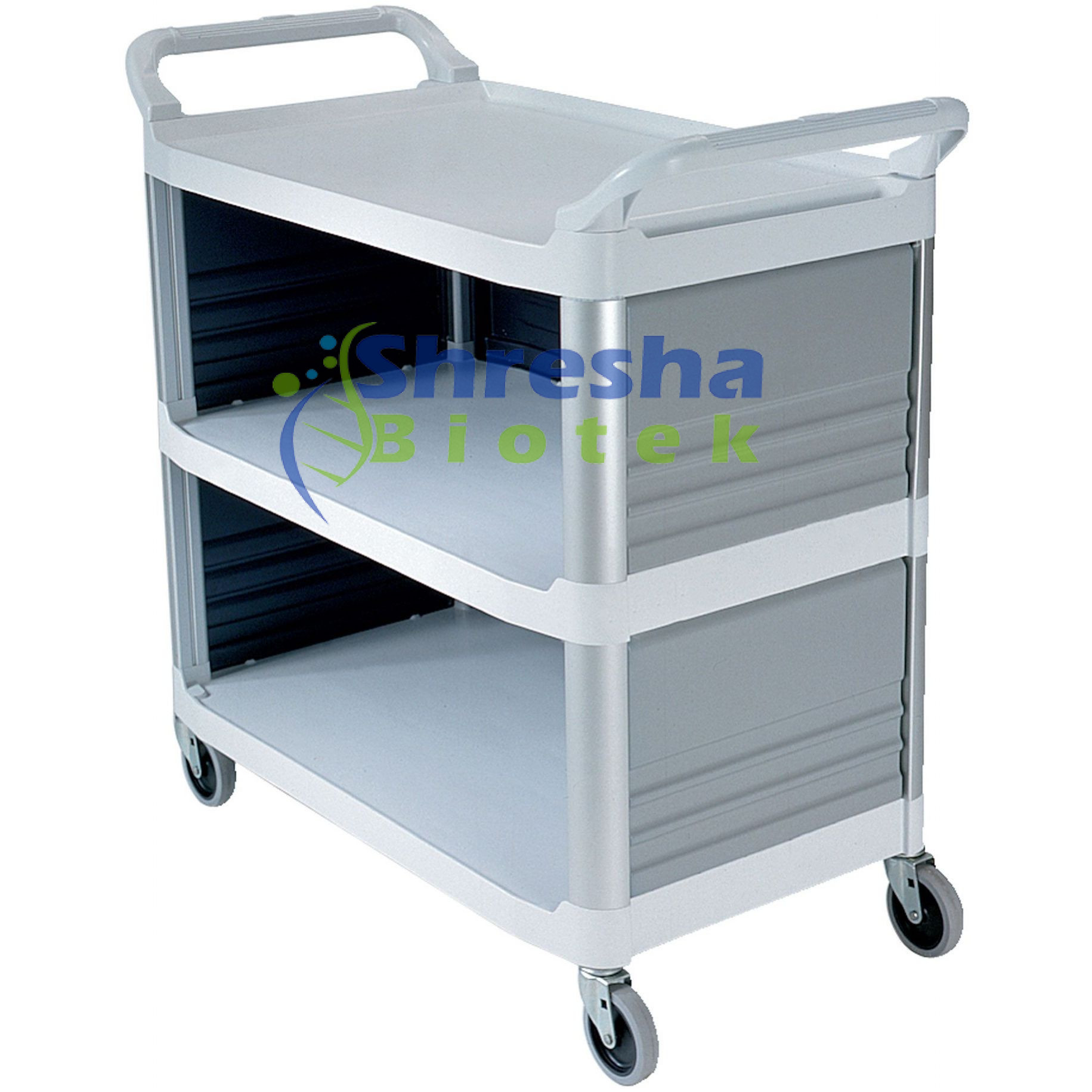

Versatile multi-purpose trolley for transporting instruments, supplies, and equipment in medical settings
Made from CRCA steel, pre-treated and epoxy powder coated for durability and corrosion resistance
Equipped with two or three shelves for organized storage
Side rails on each shelf to prevent items from falling off
Smooth surfaces for easy cleaning and disinfection
Mounted on four swivel castors for smooth and quiet mobility; two with brakes
Ideal for use in wards, ICUs, treatment rooms, and operating theatres
Overall Dimensions: Approx. 750 mm (L) × 450 mm (W) × 900 mm (H)
Frame Material:Â steel, epoxy powder coated
Shelves:
– 2 or 3 shelvesÂ
– Laminated or stainless steel tops
– Guard rails on 3 sides per shelf
Castors: 100 mm swivel type, 2 with locking brakes
Load Capacity: 20–30 kg per shelf
Finish: Epoxy powder coated, available in white or custom colors
Accessories (Optional): IV pole, utility bin holder, removable trays
Overall Dimensions: 2200 mm (L) × 1000 mm (W)
Height Adjustment Range: 450 mm – 750 mm
Backrest Angle: 0° – 75°
Knee Rest Angle: 0° – 35°
Trendelenburg Angle: 0° – 12°
Reverse Trendelenburg Angle: 0° – 12°
Lateral Tilt (Left/Right): ±12°
Frame Material: CRCA steel with epoxy powder coating
Platform Sections: Four-section, ventilated design
Head & Foot Boards: ABS, detachable with locking system
Side Rails: Collapsible aluminum or ABS
Castors: 125 mm diameter, 4 with brakes
Control System: Wired remote with individual function buttons
Power Supply: 220V AC, 50Hz
Battery Backup: 1–2 hours operation
Safe Working Load: 250 kg
Measurement Method: Oscillometric
Measurement Range:
– Systolic: 60 – 260 mmHg
– Diastolic: 40 – 199 mmHg
– Pulse Rate: 40 – 180 bpm
Measurement Accuracy:
– Pressure: ±3 mmHg
– Pulse: ±5%
Display Type: LCD/LED digital screen
Memory Capacity: 60 – 120 readings per user
Power Supply:Â batteries or AC adapter
Cuff Size: 22 – 42 cm
Auto Power Off: After 1 minute of inactivity
Weight: 300 – 400 g
Operating Temperature: 5°C – 40°C
Humidity Range: 15% – 85% RH non-condensing
Measurement Parameters:
– SpO₂ (Oxygen Saturation): 0% – 100%
– Pulse Rate: 30 – 250 bpm
SpO₂ Accuracy: ±2% (for 70% – 100% range)
Pulse Rate Accuracy: ±2 bpm or ±2%
Display Type: Large LED or TFT screen
Waveform Display: Plethysmograph (real-time pulse waveform)
Alarm Functions: Adjustable thresholds for SpOâ‚‚ and PR, with sound and visual indicators
Power Supply:
– AC mains (100 – 240V, 50/60 Hz)
– Built-in rechargeable battery
Battery Backup: 4 – 8 hours of operation
Data Storage: Up to 72 hours or more
Connectivity: USB / RS232 / LAN
Weight: ~1.5 – 3 kg
Operating Environment:
– Temperature: 5°C – 40°C
– Humidity: ≤85% non-condensing
Measurement Parameters: SpOâ‚‚ (Oxygen Saturation) & Pulse Rate
SpO₂ Measurement Range: 70% – 100%
Pulse Rate Range: 30 – 250 bpm
Accuracy (SpO₂): ±2%
Accuracy (Pulse Rate): ±2 bpm or ±2%
Display Type: OLED or LED
Power Supply: 2 × AAA batteries
Battery Life: ~20 – 30 hours of continuous use
Weight: Approx. 50 – 60 grams
Operating Temperature: 5°C – 40°C (41°F – 104°F)
Storage Temperature: -10°C – 50°C
