Features:

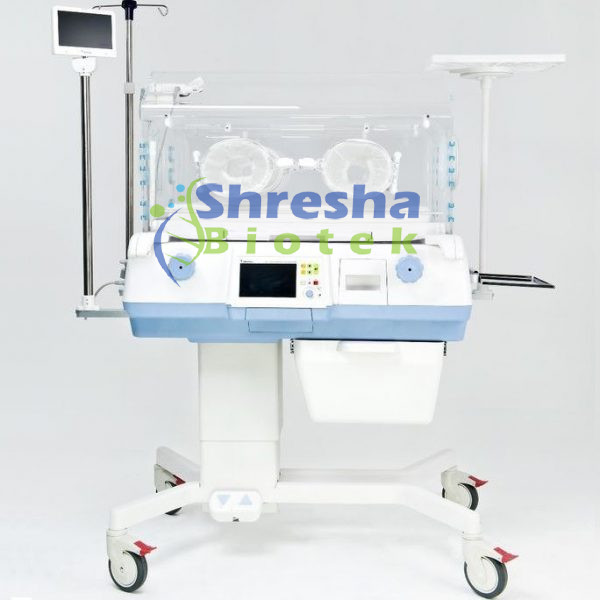

Provides a thermally regulated environment for premature or low-birth-weight infants
Maintains stable temperature, humidity, and oxygen levels to support neonatal care
Transparent acrylic chamber allows full visibility while maintaining isolation
Servo-controlled heating system with skin and air temperature probes
Humidification system to reduce water loss and maintain skin integrity
Access ports and portholes allow caregiving without opening the chamber
Integrated alarms for temperature deviation, power failure, and probe disconnection
Optional features include oxygen concentration control, phototherapy, or weighing scale
Mounted on a mobile trolley with locking wheels for easy transport and positioning
Specifications:
Temperature control range: 30°C to 38°C (servo and manual modes)
Humidity control: Up to 80% RH (adjustable, model-dependent)
Chamber material: Transparent, medical-grade acrylic
Heating method: Forced air circulation with uniform heat distribution
Display: Digital LED or LCD for temperature, humidity, and system status
Alarms: Over/under temperature, system error, sensor disconnection
Power supply: 220–240 V, 50/60 Hz
Optional features: In-built phototherapy unit, battery backup, X-ray cassette tray
Measurement Method: Oscillometric
Measurement Range:
– Systolic: 60 – 260 mmHg
– Diastolic: 40 – 199 mmHg
– Pulse Rate: 40 – 180 bpm
Measurement Accuracy:
– Pressure: ±3 mmHg
– Pulse: ±5%
Display Type: LCD/LED digital screen
Memory Capacity: 60 – 120 readings per user
Power Supply:Â batteries or AC adapter
Cuff Size: 22 – 42 cm
Auto Power Off: After 1 minute of inactivity
Weight: 300 – 400 g
Operating Temperature: 5°C – 40°C
Humidity Range: 15% – 85% RH non-condensing
Measurement Parameters:
– SpO₂ (Oxygen Saturation): 0% – 100%
– Pulse Rate: 30 – 250 bpm
SpO₂ Accuracy: ±2% (for 70% – 100% range)
Pulse Rate Accuracy: ±2 bpm or ±2%
Display Type: Large LED or TFT screen
Waveform Display: Plethysmograph (real-time pulse waveform)
Alarm Functions: Adjustable thresholds for SpOâ‚‚ and PR, with sound and visual indicators
Power Supply:
– AC mains (100 – 240V, 50/60 Hz)
– Built-in rechargeable battery
Battery Backup: 4 – 8 hours of operation
Data Storage: Up to 72 hours or more
Connectivity: USB / RS232 / LAN
Weight: ~1.5 – 3 kg
Operating Environment:
– Temperature: 5°C – 40°C
– Humidity: ≤85% non-condensing
Light Source: LED or halogen (battery-operated or rechargeable)
Materials: Stainless steel instruments
Common Tools Included:
Otoscope with specula
Nasal speculum
Laryngeal mirror with handle
Tongue depressor
Case: Compact, foam-lined protective box
