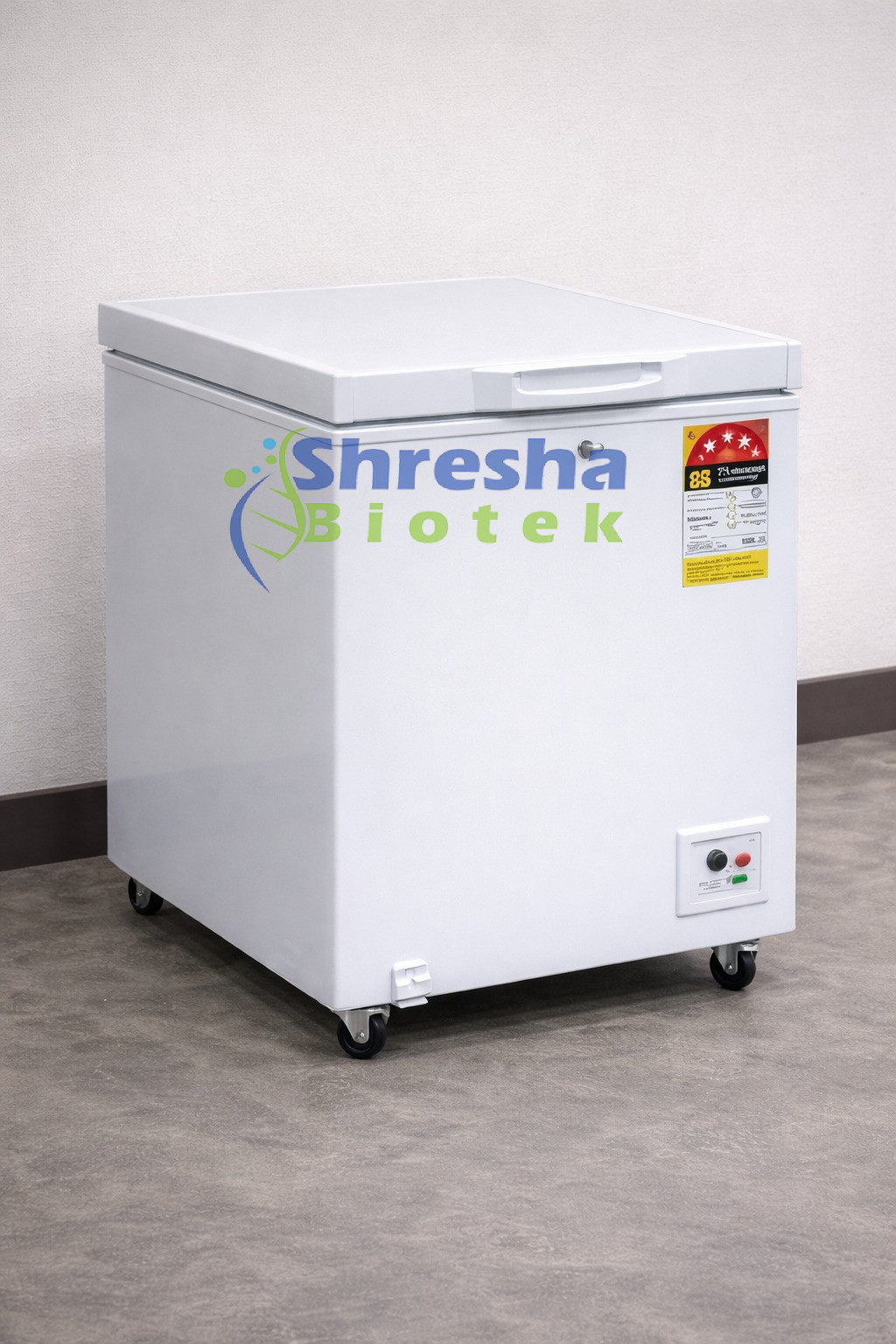

-18°C DEEP FREEZER

Product Code: DR-CF-01

Categories: LABORATORY EQUIPMENTS, MICROBIOLOGY, PATHOLOGY

Convertible Functionality: Operates as both Freezer (-18°C) and Cooler (0°C to 7°C)
Capacity: 120 Liters (Net Storage: 114 Liters)
Energy Efficient: 3-Star BEE Rated
Cooling Technology: Direct Cool System for fast and uniform cooling
Temperature Control: Electro-mechanical thermostat for precise temperature regulation
Build Type: Single Door, Hard Top Chest Freezer
Insulation: High-density PUF insulation (60 mm) for superior temperature retention
Refrigerant: Eco-friendly HC (R600a)
Compressor: High-performance reciprocating compressor
Evaporator & Condenser: Skin-type design for efficient cooling
Mobility: Equipped with heavy-duty rollers for easy movement
Convenience Features:
1.Removable PVC door gasket
2.Sunken handle design
3.Lockable door for safety
Compact Design: Space-saving footprint suitable for laboratories,

Related products

Model	DR-RCB-6	DR-RCB-12
Make	DR Labs	DR Labs
Temp. Control Range	-20°C ~ 100°C	-20°C ~ 100°C
Temp. Resolution	0.01°C	0.01°C
Temp. Accuracy	±0.05°C	±0.05°C
Temp. Control	Microprocessor PID	Microprocessor PID
Display	LCD	LCD
Refrigeration Model	Air cooled refrigeration through compressor	Air cooled refrigeration through compressor
Refrigerant	R134A	R134A
Pump Circulation	Internal & External	Internal & External
Temp. Sensor	PT-100	PT-100
Pump Flow Rate	6L/min	6L/min
Tank Capacity	6L	12 L
Tank Size	250 x 200 x 150 mm	300 x 250 x 200 mm
Bath Opening	180 x 140 mm	235 x 160 mm
Bath Depth	150 mm	200 mm
Power Supply	AC 220 V / 50 Hz	AC 220 V / 50 Hz
Dimensions	320 x 370 x 655 mm	320 x 370 x 765 mm
Packing Dimensions & Weight	530 x 450 x 800 mm & 44 kgs	530 x 450 x 900 mm & 50 kgs

Category	DR-B2
External Size (WDH)	13837752250 mm
Internal Size (WDH)	1210600660 mm
Tested Opening	Safety height 10″
Max Opening	470 mm
Airflow Volume (Exhaust)	100%: 1320 m³/h (776 cfm)
Front Window	Motorized;Two-layer laminated toughened glass ≤6mm, Anti-UV
Filter	ULPA,99.9995% efficiency at 0.12μm (02), filter life indicator
Filter Guard Type	Aluminum alloy frame
Noise	NSF 49 ≤60 dB
Illumination	≥1000 Lux
Socket	2, Total consumption ≤500W
Display	Touch screen
Tap	Water tap1, Gas tap1
Power Supply	AC220V,50/ 60Hz
Consumption	400W
Alarm	Abnormal airflow velocity; Filter replacement; Front window at unsafe height
Blower	One ECM motor, 230V AC; Speed adjustable, high efficiency and low power consumption
Material	Working area: 304 stainless steel Frame,Decorative Plate: cold-rolled steel with anti- bacteria powder coating
UV Lamp	30W
Germicidal UV Lamp	Emission of 253.7 nanometers for most efficient decontamination
Certification	NSF 49
Illuminating Lamp	LED lamp, 20W*2
Standard Accessory	LED lamp2, UV lamp2, Base stand, SS water tap1, Gas tap1, Drain valve, Waterproof socket*2
Optional Accessory	Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, exhaust duct
Package Size (WDH)	154010801900 mm
Gross Weight	340 kg

Parameters	Specifications
Temperature range	Lights Off: 5°C to 60°C; Light ON: 10°C to 60°C
Temperature controller	Digital PID controller with SV & PV values
Temperature accuracy	±1%
Humidity	50% to 90%
Humidity controller	Digital PID controller with SV & PV values
Humidity accuracy	±3%
Illumination	3 sides illumination with detachable LED lights(10000 LUX or 23000 LUX)
Light timer	24×7 weekly digital timer
Shelves	Stainless steel or chrome plated (Height adjustable)
Humidity system	SS boiler tank with immersion heater and automatic water replenishment by external tank
Safety	Audio / visual alarm for temperature deviation
Optional	Exterior made of stainless steel 304 / 316 White painted steel inner walls Door open alarm Plant growth racks UV lamp PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels
Power supply	220 Volts / 50 Hz
