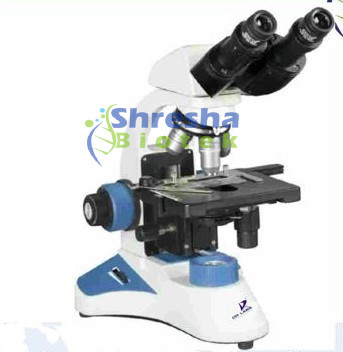

Specifications

• Stand:
  Die-cast single mold construction with rectangular heavy and stable base. C-shape arm fixed stand ensures fatigue-free working. Metallic body is sturdy, corrosion, acid, and stain resistant.

• Tube:
  Binocular head inclined at 30° Siedentopf, rotatable 360°. Equipped with anti-reflection and fungus-resistant coated prismatic set with diopter adjustment.

• Nosepiece:
  Reverse quadruple nosepiece mounted on high-grade steel ball bearings with dust-proof carrier for smooth rotation and parfocal performance.

• Focusing Mechanism:
  Co-axial coarse and fine focusing system with four-stage reduction gears and ball-bearing guideways ensuring smooth movement with minimal wear and no backlash. Includes tension adjustment ring.

• Stage:
  Ball bearing type rackless double stage with co-axial mechanical controls.
  Stage size: 125 × 140 mm with hard surface and vernier scale (least count 0.1 mm).
  Travel range: 75 mm × 50 mm.

• Condenser:
  Two-lens Abbe condenser (N.A. 1.25) with iris diaphragm and filter holder. Adjustable through rack and pinion mechanism.

• Illumination:
  High intensity 3W LED built-in light source with solid state transformer, ON/OFF switch and light intensity control. Operates on 220–240V, 50 Hz AC supply with 3–4 hours battery backup.

• Optics:
  Color-corrected anti-reflection and fungus resistant optics providing flat image, parfocal and pre-centered alignment.

• Eyepieces:
  WF 10X / FN 20 mm (strain free) eyepiece with pointer.

• Objectives:
  Infinity corrected objectives:

  • 4X

  • 10X

  • 40X (SL)

  • 100X (SL) Oil immersion

• Packing:
  Supplied in thermofoam packed attractive ply-board box with lock and key. Includes accessories like spare LED bulb, power cord, vinyl cover, cleaning cloth, lens cleaning paper, brush, immersion oil, cleaning solution, and silica gel.
