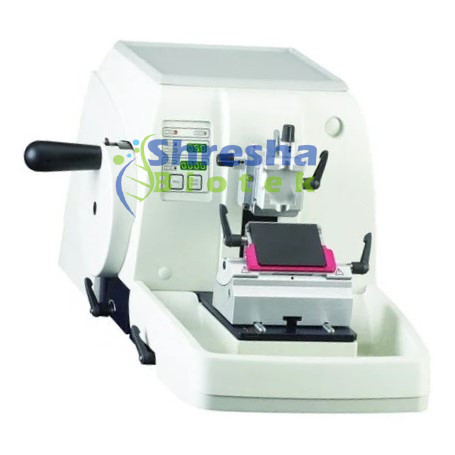

Fully automatic rotary microtome
Motorised feed mechanism with electronic and manual cutting
Electronic cutting -3
Both high profile and low profile disposable balde
Emergency breaker
Length of vertical strokes 70mm
Horizontal specimen feed -30mm
Universal cassette clamp for specimen holder
Specimen Retraction: In Manual Sectioning Mode: 5 – 100 μm (in 5μm increments); can be turned off , In Motorized Sectioning Mode:Speed-Dependent; can be turned off
| Shaker Speed (20 – 250 RPM) (350,400 & 500 OPTIONAL) | |
|---|---|
| Orbit Diameter | ø 25 mm |
| Accuracy | ± 2% of maximum speed |
| Temperature range | 5˚C above RT to 60˚C & with cooling 5°C-60°C (Customize temperature options available) |
| Resolution | 0.1°C |
| Temp. accuracy | ± 0.3˚C |
| Power supply | 230V ± 10%, 50Hz |
| Flasks | 12X12 | 16X16 | 18X18 | 24X24 |
| 50ml | 19 | 40 | 45 | 60 |
| 100ml | 12 | 16 | 18 | 24 |
| 250ml | 9 | 12 | 16 | 24 |
| 500ml | 4 | 6 | 8 | 10 |
| 1000ml | 2 | 3 | 3 | 5 |
| 2000ml | 1 | 2 | 2 | 4 |
| Chamber design | Round and Rectangular |
|---|---|
| Vacuum range | Up to -760 mmHg |
| Temperature range | Ambient+5°C to 150°C (Optional 200ºC) |
| Temperature sensor | PT100 |
| Temperature controller | Digital PID controller Display of SV & PV |
| Inner chamber | Hermetically welded stainless steel 304 sheet |
| External cabinet | Powder coated GI sheet |
| Door | Solid door with clamp & toughened glass window |
| Gasket | High temperature silicon gasket |
| Shelves | Removable SS shelves |
| Vacuum fittings | Vacuum valve / exhaust valves (Rubber hose) |
| Standard fittings | Mains on/off switch Vacuum pump on/off switch Electric socket for vacuum pump |
| Power supply | 220 Volts 50Hz |
| Optional | KF25 flange vacuum connection 21 CFR compliance software Temperature up to 250°C All SS 304 construction (GMP) Digital vacuum control through solenoid valves PLC + HMI controller with USB interface Diaphragm valves for inert gas Timer 99 hours 59 min Oil-free vacuum pump |
| Category | DR-B2 |
|---|---|
| External Size (W*D*H) | 1383*775*2250 mm |
| Internal Size (W*D*H) | 1210*600*660 mm |
| Tested Opening | Safety height 10″ |
| Max Opening | 470 mm |
| Airflow Volume (Exhaust) | 100%: 1320 m³/h (776 cfm) |
| Front Window | Motorized;Two-layer laminated toughened glass ≤6mm, Anti-UV |
| Filter | ULPA,99.9995% efficiency at 0.12μm (02), filter life indicator |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49 ≤60 dB |
| Illumination | ≥1000 Lux |
| Socket | 2, Total consumption ≤500W |
| Display | Touch screen |
| Tap | Water tap*1, Gas tap*1 |
| Power Supply | AC220V,50/ 60Hz |
| Consumption | 400W |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
| Blower | One ECM motor, 230V AC; Speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steel Frame,Decorative Plate: cold-rolled steel with anti- bacteria powder coating |
| UV Lamp | 30W |
| Germicidal UV Lamp | Emission of 253.7 nanometers for most efficient decontamination |
| Certification | NSF 49 |
| Illuminating Lamp | LED lamp, 20W*2 |
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, Gas tap*1, Drain valve, Waterproof socket*2 |
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, exhaust duct |
| Package Size (W*D*H) | 1540*1080*1900 mm |
| Gross Weight | 340 kg |
