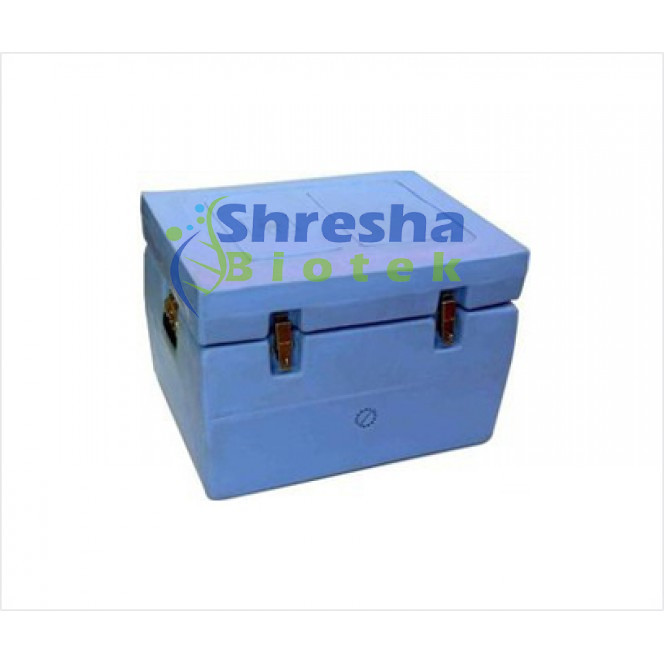

| Model | Â DR316L |
| Type | Â Cold Box, Long Range |
| WHO PQS CODE | Â E004/024 |
| Vaccine Storage Capacity As per Standard PQS load | Â 18.0 Litres |
| Gross Storage Capacity | Â 23.70 Litres |
| Weight-Fully Loaded | Â 47.86kg |
| Weight-Empty (with empty Ice Packs) | Â 20.78kg |
| External Surface Material | Â LLDPE (Linear Low Density Polyethylene) |
| Internal Lining Material | Â LLDPE (Linear Low Density Polyethylene) |
| Insulation Material | Â CFC Free Polyurethane |
| Insulation Thickness | Â 100mm |
| External Dimension (L X W XH) | Â 77,00 x 61,80 x 51,30cm |
| Internal Dimension (L X W XH) | Â 52,90 x 37,50 x 30,00cm |
| Vaccine Storage Dimensions | Â 44,20 x 29,30 x 18,30cm |
| Lid Type & Fixings | Â Hinged |
| Number of Ice-packs Required | Â 31 |
| Number of Ice-packs Supplied | Â 31 |
| Ice-pack type | Â 0.6L compliant with PQS E0S/IP0I.1 |
| Volume of Ice-pack | Â 0.4 Litres |
| Performance | Â Min. Cold Life Std. Req. 96hrs |
| WHO PQS Reference Number | Â E04/CB01.1 |
| Cold life without opening at +43°C |  145 hrs 51 minutes |
| Warm Life at -20° C |  57 hrs 41 minutes |
| Cool Life at +43° C |  34 hrs 35 minutes |
Specifications:
Material: Polypropylene or polyethylene
Diameter: 11–14 mm (varied based on vial cap size)
Color options: often sets of 5–10 colors (e.g., red, blue, green, yellow, white, etc.)
Temperature range: -80°C to 121°C
Compatibility: fits external or internal thread cryo vials (varied by model)
Specifications:
Material: Polycarbonate, polypropylene, or cardboard with water-repellent coating
Capacity: 25, 40, 81, or 100 cryo vials
Compatibility: 1.0 mL to 5.0 mL cryo vials
Dimensions: 133 mm × 133 mm × 52 mm (for standard 100-place box)
Temperature range: -196°C to 121°C
Grid format: 5×5, 8×8, 9×9, or 10×10 layout (based on model)
Specifications:
Material: Polystyrene (medical or optical grade)
Formats: 96-well, 384-well
Well volume: 300 µL (96-well), 100 µL (384-well)
Surface types: high-binding, medium-binding, non-binding, or tissue culture-treated
Well shape: flat-bottom (standard), sometimes round- or U-bottom for specific applications
Dimensions: standard ANSI/SLAS microplate footprint
Temperature resistance: up to 60°C
Sterilization method (for sterile versions): gamma irradiation or ethylene oxide
Specifications:
Material: Borosilicate glass or polypropylene (based on model)
Sizes: 250 mL, 500 mL, 1000 mL, 2000 mL
Chambers: three vertically aligned sections—top (acid), middle (solid reactant), bottom (liquid reservoir)
Valves: glass or plastic stopcocks for gas outlet control
Temperature resistance: up to 180°C (for glass models)
Chemical compatibility: resistant to acids and common laboratory reagents
