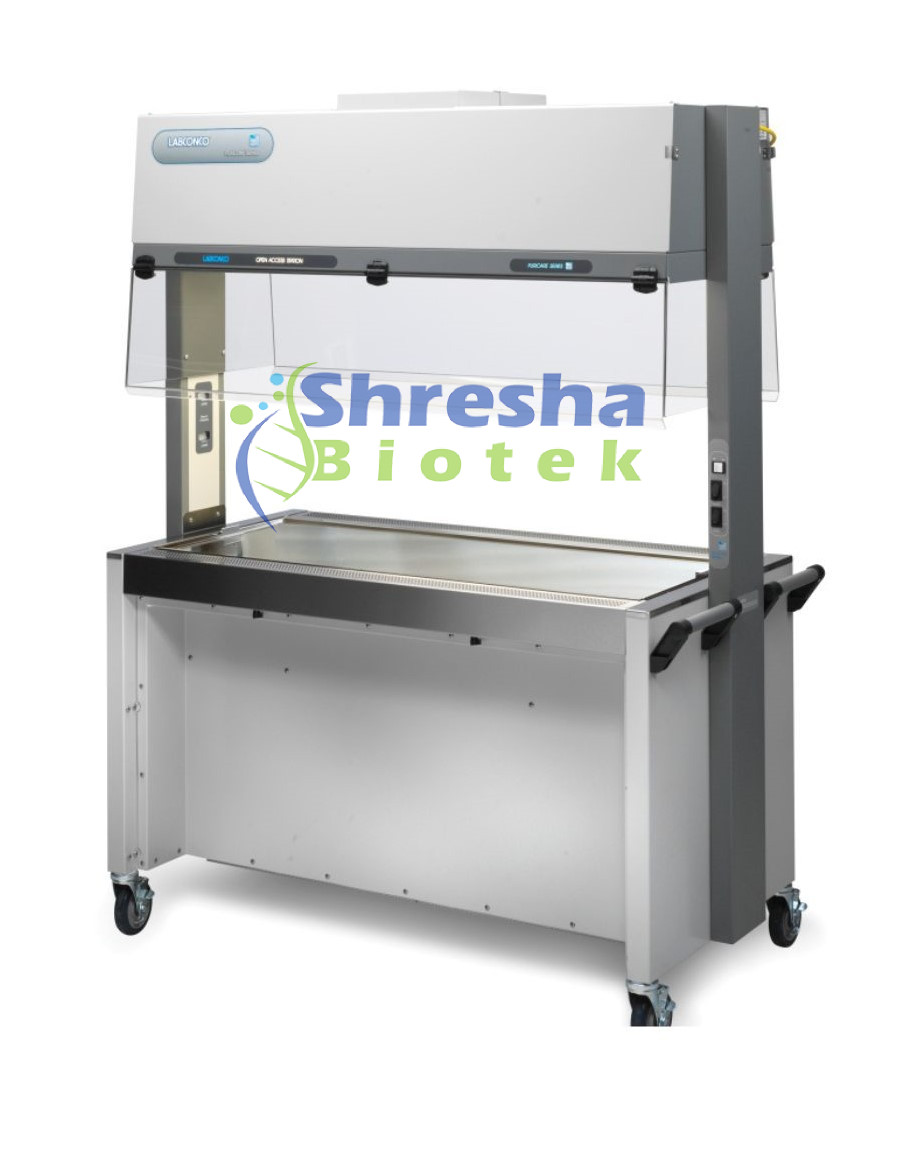

ANIMAL TRANSFER STATION

Product Code: DR-BC-2F-A2

  • Design & Purpose: Self-contained, mobile ventilated workbench ensuring safe animal transfer with dual protection for operator and animal.
  • Construction: Made of heavy-gauge SS 316 (1.2 mm) with MS frame and GI covering, featuring rounded edges for safety.
  • Work Surface: Smooth SS 316 top with airflow perforations, removable spill tray, and ergonomic armrest.
  • Lighting & Drainage: Recessed LED lights for uniform visibility and integrated SS 316 drain tray with tap for cleaning.
  • Mobility & Lifting: Four 125 mm nylon caster wheels (two lockable) and electro-hydraulic lift adjustable up to 300 mm.
  • Dimensions & Weight: Overall size 1550×760×1750 mm with approximate weight of 160 ±5 kg.
    • Air Handling & Filtration: Equipped with G4/G5 pre-filters and H14 HEPA filters (99.995%, 0.3 µm) ensuring sterile laminar airflow.
    • Exhaust & Protection: Includes HEPA-filtered exhaust with air curtain and suction, ISO 14644-1 compliant.
    • Fans & Drive System: Direct-driven, low-noise EC/AC fans with auto purge and airflow compensation features.
    • Control System: PLC-based touchscreen controller with data logging, alarms, and smart software functions.
    • Monitoring & Sensors: Real-time airflow and pressure monitoring with sensors and “Safe to Use” display prompts.
    • Electrical & Extra Features: Operates on 220V AC with UPS backup, UV lamp, polycarbonate barriers, and USB/Ethernet ports.
