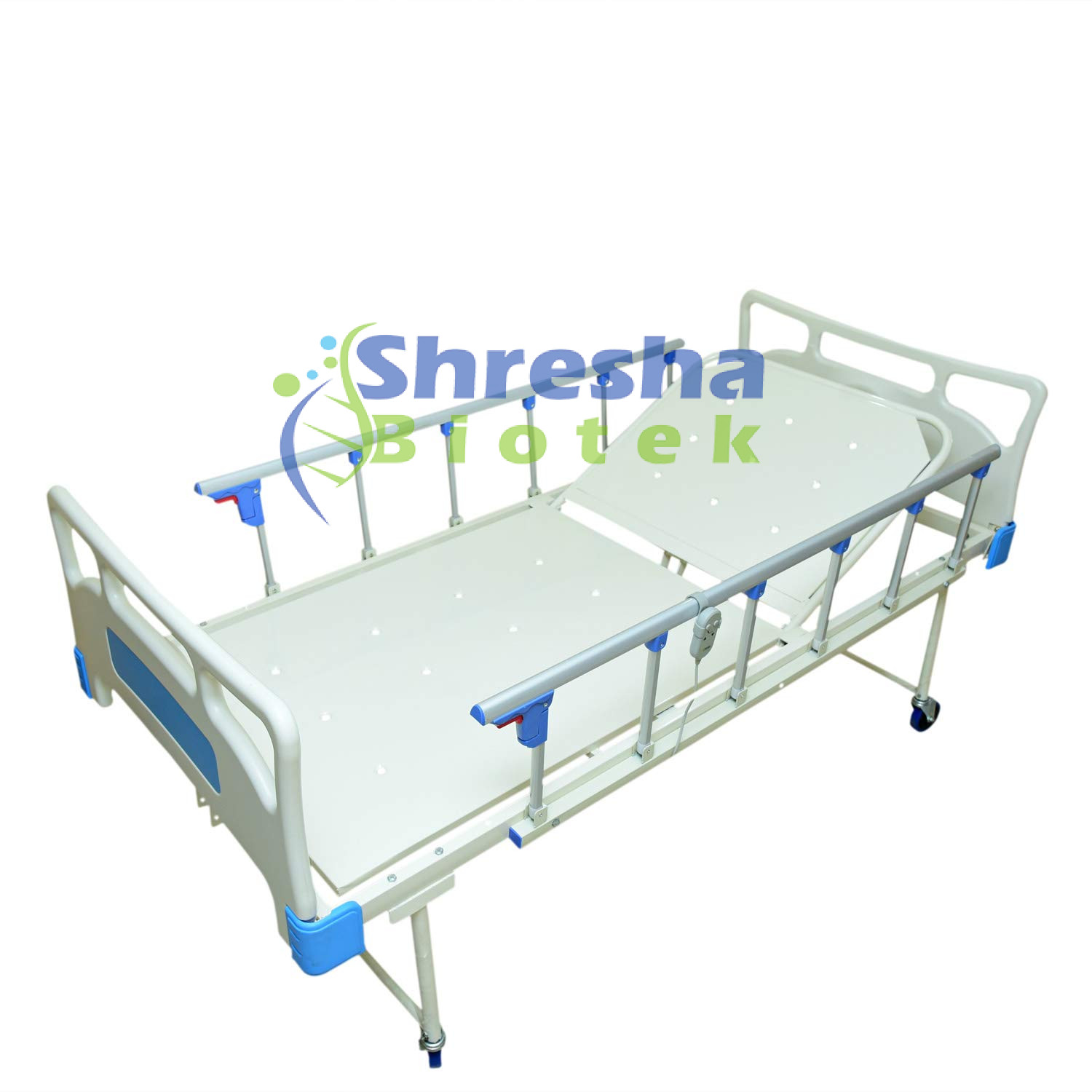

Manual single-function hospital bed for backrest elevation
ABS molded head and foot panels, detachable for hygiene and access
Two-section perforated bed platform for airflow and patient comfort
Smooth crank mechanism for effortless backrest adjustment
Mild steel frame with epoxy powder-coated finish for durability and corrosion resistance
Collapsible or swing-down side rails for added safety (aluminum or ABS)
Mounted on four smooth-rolling castors, two with locking brakes
Designed for patient wards, recovery rooms, and long-term care
IV pole provision and drainage bag holders included
Backrest Elevation: 0° – 75°
Platform Type: Two-section perforated steel platform
Frame Material:Â steel with epoxy powder coating
Head & Foot Panels: ABS, detachable with secure locking
Side Rails: Collapsible or swing-down (aluminum or ABS)
Castors: 125 mm diameter, 2 with brakes
Crank Mechanism: Single manual crank with foldable handle
Safe Working Load: 180 – 200 kg
Finish: Pre-treated and epoxy powder coated
Accessories Included: IV pole socket, drainage bag hooks, mattress retainers
Overall Dimensions: 2200 mm (L) × 1000 mm (W)
Height Adjustment Range: 450 mm – 750 mm
Backrest Angle: 0° – 75°
Knee Rest Angle: 0° – 35°
Trendelenburg Angle: 0° – 12°
Reverse Trendelenburg Angle: 0° – 12°
Lateral Tilt (Left/Right): ±12°
Frame Material: CRCA steel with epoxy powder coating
Platform Sections: Four-section, ventilated design
Head & Foot Boards: ABS, detachable with locking system
Side Rails: Collapsible aluminum or ABS
Castors: 125 mm diameter, 4 with brakes
Control System: Wired remote with individual function buttons
Power Supply: 220V AC, 50Hz
Battery Backup: 1–2 hours operation
Safe Working Load: 250 kg
Measurement Method: Manual (Aneroid, Auscultatory)
Measurement Range: 0 – 300 mmHg
Accuracy: ±3 mmHg
Cuff Size Range: 22 – 42 cm
Dial Diameter: 50 mm
Manometer Type: Aneroid with 2 mmHg graduation
Bladder Material: Latex or PVC, 2-tube design
Bulb: Rubber inflation bulb with chrome-plated valve
Valve Type: Screw-type precision air release
Stethoscope: Optional, single-head compatible
Weight: 500 g
Operating Temperature: 5°C – 40°C
Storage Temperature: -10°C – 50°C
Technical Specifications
