Specifications:

• Measurement Method: Manual (Aneroid, Auscultatory)

• Measurement Range: 0 – 300 mmHg

• Accuracy: ±3 mmHg

• Cuff Size Range: 22 – 42 cm

• Dial Diameter: 50 mm

• Manometer Type: Aneroid with 2 mmHg graduation

• Bladder Material: Latex or PVC, 2-tube design

• Bulb: Rubber inflation bulb with chrome-plated valve

• Valve Type: Screw-type precision air release

• Stethoscope: Optional, single-head compatible

• Weight: 500 g

• Operating Temperature: 5°C – 40°C

• Storage Temperature: -10°C – 50°C

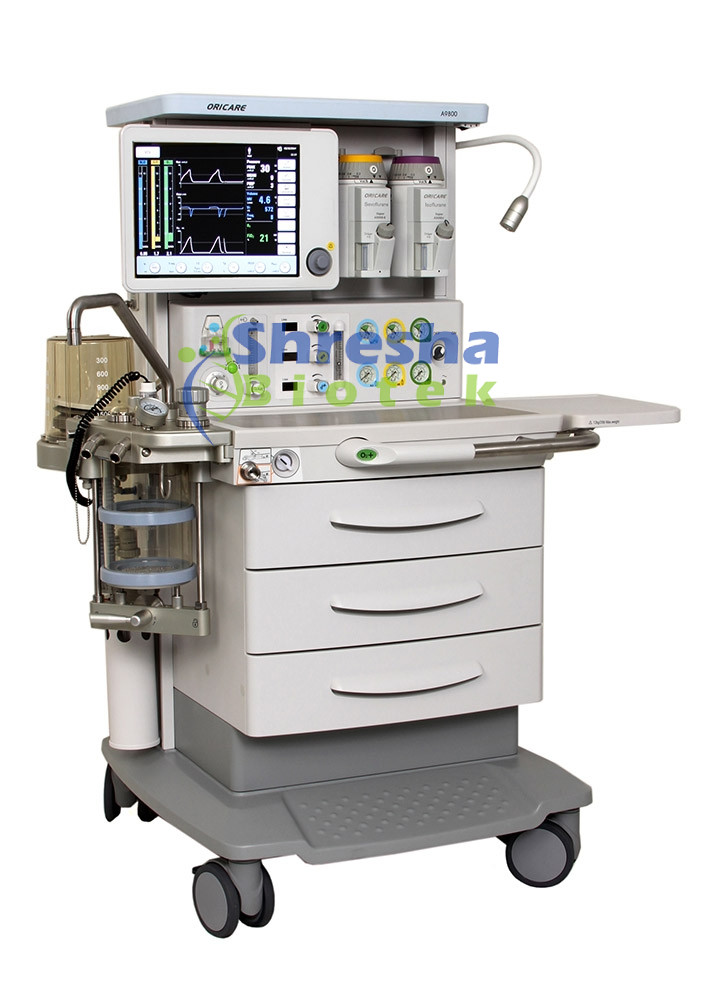

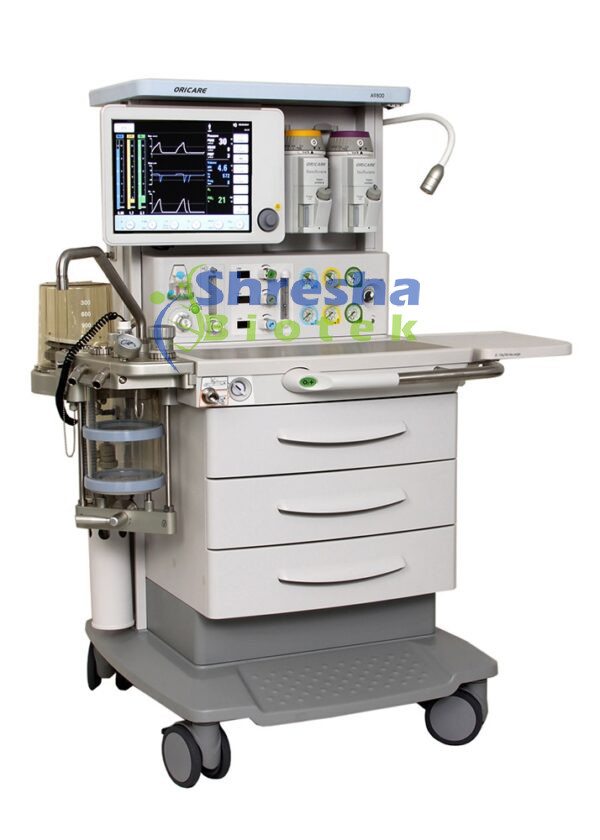

• Two Capacious drawers for keeping Anesthesia kit/accessories
• Extended platform at rear for two 5 litre. (Water Cap.) cylinder
• Large roller bearings 125mm , antistatic castors, for easy mobility and brakes
• Top tray provided at eye level for keeping monitoring equipment_ Hook for breathing circuit. Wipe clean stainless steel top.
• Provision to fit ventilator
• One CO₂ circle absorber system
• Unitized Rota meter block for oxygen & nitrous oxide with fine adjustment controls & colour coated knob and luminous back plate. Oxygen flow meter calibrated from 100cc/min to 10 litre./ Minute & Nitrous oxide flow meter from 200cc/min to 12 liters/min down Stream receipt of oxygen & (air 0 to 12 litre) (Optional)
• One vaporizer for Halothane / Isoflurane / Sevoflurane
• Non return cum blow off valve in circuit ensures that pressure does not hold-up beyond 200 cm. Water column & minimizes risk of back flow of gases.
• 60 psl outlet for driving ventilator
• Change over system open circuit or close circuit
• Emergency Oxygen flush valve at table level to give 35-60 litre/min for emergencies.
• Cylinder yokes: Pin indexed yokes two each of oxygen & nitrous oxide a 50 mm diameter, colour coded gauges fitted at convenient angle for better visibility & clarity.
• High efficiency regulators for reliability two each for O₂ & N₂O
• Vaporizer, Halothane / Isoflurane / Sevoflurane
