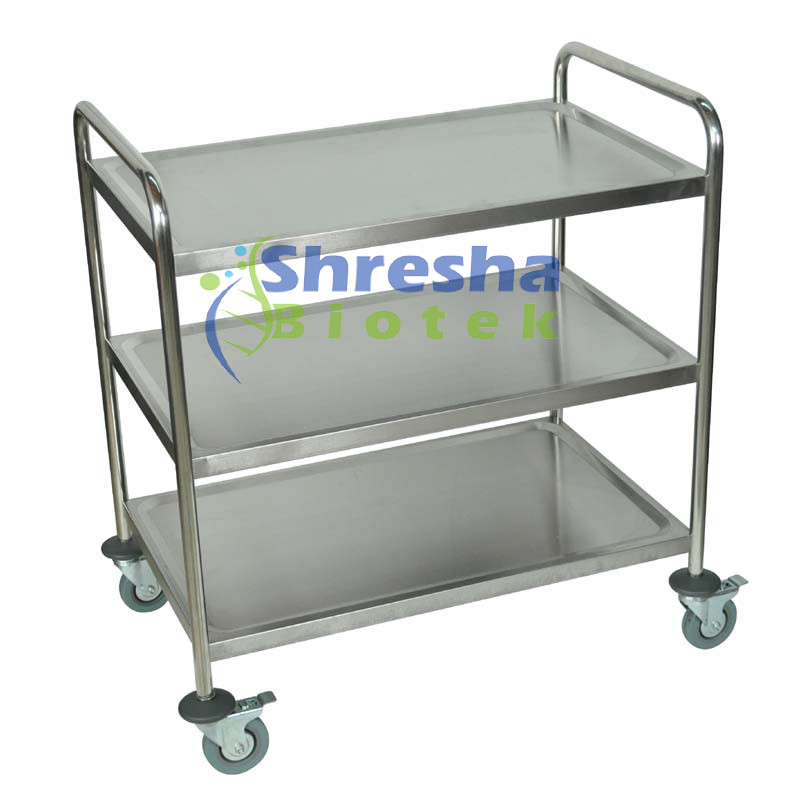

Multi-purpose trolley for use in hospitals, ICUs, OTs, and laboratories
Constructed from high-grade stainless steel for superior hygiene and corrosion resistance
Comes with two or three fixed shelves for organizing and transporting medical supplies and instruments
Raised edges/guard rails on shelves to prevent items from slipping off during movement
Smooth, easy-to-clean surfaces ideal for sterile environments
Mounted on four swivel castors for smooth mobility: two castors with brakes for secure positioning
Strong and durable structure designed for daily heavy-duty hospital use
Overall Dimensions: Approx. 750 mm (L) × 450 mm (W) × 900 mm (H)
Material: Stainless Steel
Shelves:
– 2 or 3 fixed SS shelves
– Shelves with 3-side or full perimeter guard rails
Castors: 100 mm swivel type, noiseless rubber wheels; 2 with locking brakes
Load Capacity: 25–40 kg per shelf
Finish: Polished stainless steel, satin/matte finish
Accessories (Optional): IV pole, removable bins/trays, handlebar
Overall Dimensions: 2200 mm (L) × 1000 mm (W)
Height Adjustment Range: 450 mm – 750 mm
Backrest Angle: 0° – 75°
Knee Rest Angle: 0° – 35°
Trendelenburg Angle: 0° – 12°
Reverse Trendelenburg Angle: 0° – 12°
Lateral Tilt (Left/Right): ±12°
Frame Material: CRCA steel with epoxy powder coating
Platform Sections: Four-section, ventilated design
Head & Foot Boards: ABS, detachable with locking system
Side Rails: Collapsible aluminum or ABS
Castors: 125 mm diameter, 4 with brakes
Control System: Wired remote with individual function buttons
Power Supply: 220V AC, 50Hz
Battery Backup: 1–2 hours operation
Safe Working Load: 250 kg
Measurement Parameters:
– SpO₂ (Oxygen Saturation): 0% – 100%
– Pulse Rate: 30 – 250 bpm
SpO₂ Accuracy: ±2% (for 70% – 100% range)
Pulse Rate Accuracy: ±2 bpm or ±2%
Display Type: Large LED or TFT screen
Waveform Display: Plethysmograph (real-time pulse waveform)
Alarm Functions: Adjustable thresholds for SpOâ‚‚ and PR, with sound and visual indicators
Power Supply:
– AC mains (100 – 240V, 50/60 Hz)
– Built-in rechargeable battery
Battery Backup: 4 – 8 hours of operation
Data Storage: Up to 72 hours or more
Connectivity: USB / RS232 / LAN
Weight: ~1.5 – 3 kg
Operating Environment:
– Temperature: 5°C – 40°C
– Humidity: ≤85% non-condensing
Light Source: LED or Halogen
Power: AA batteries or rechargeable handle
Magnification: Otoscope – 3x; Ophthalmoscope – adjustable lens wheel
Lens Range: ±20 diopters
Case: Compact and protective with foam interior
