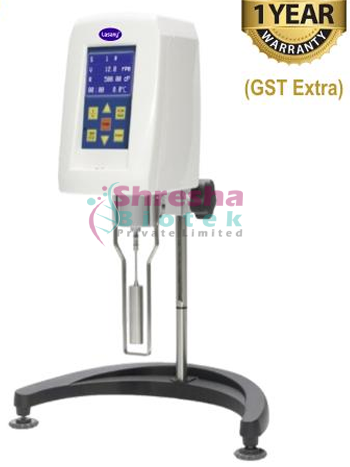

DIGITAL VISCOMETER

Shaker Speed (20 – 250 RPM) (350,400 & 500 OPTIONAL)
Orbit Diameter	ø 25 mm
Accuracy	± 2% of maximum speed
Temperature range	5˚C above RT to 60˚C & with cooling 5°C-60°C (Customize temperature options available)
Resolution	0.1°C
Temp. accuracy	± 0.3˚C
Power supply	230V ± 10%, 50Hz

Temperature range	5°C to 60°C
Temperature accuracy	±0.2°C @37°C
Temperature controller	Dual display PID controller Display SV & PV Auto tuning feature
Temperature sensor	PT100
Inner chamber	SS 304
External cabinet	Powder coated GI sheet
Insulation	Glass wool
Door	Insulated door Mechanical latch/clamp Glass window
Heaters	Resistance wire heaters
Shelves	SS wire mesh (removable)
Air circulation	Motorized blower / Axial fan
Standard fittings	Mains on/off switch Load Indicator Fan on/off switch
Power supply	220 Volts 50Hz
Optional	– Calibration certificate – Data logger w/ USB – Interface thermal printer. – Inner chamber LED light.

Parameter	Specification
★ Measuring Range	10–2,000,000 mPa·s
★ Speed	0.3, 0.6, 1.5, 3, 6, 12, 30, 60 RPM
★ Spindles	#1, #2, #3, #4 are standard configuration
★ Reading & Display	Direct viscosity reading and temperature display
★ Measurement Parameters	All measurement parameters
★ Display	LCD display with back light
★ Range Function	Auto range function
★ Quality Control	Three stages of quality check before dispatch
★ Installation / Demonstration	Online installation / demonstration provided free of cost
★ Video Support	Demonstration / installation video CD are provided at free of cost
★ Optional #0 Spindle	#0 spindle range: 1–2,000,000 mPa·s available at extra cost

Item Name	CO2 Incubator
Model No.	DR-CO2-80UV	DR-CO2-80	DR-CO2-80+	DR-CO2-180UV	DR-CO2-180	DR-CO2-180+
Sterilization	UV	140°C	180°C	UV	140°C	180°C
Volume	80L	80L	80L	180L	180L	180L
Microprocessor-based controller	Proprietary algorithm to control CO2 and temperature
Display	LCD touch display
Temp control range	Ambient +5°C- 60°C
Temp stability	±0.1°C
Temp field uniformity	±0.3°C (at 37°C )
Timer function	0 – 999hr 59 min.
CO2 measurement principle	Infrared (IR) detection
CO2 control range	0-20%
CO2 display resolution	0.10%
CO2 supply	0.05~0.1MPa is recommended
Relative Humidity	Ambient humidity ~95% at 37°C
HEPA filtration	HEPA filters at the gas inlet, ISO 5 level, 5 minutes
Temperature recovery time	≤10 min (open door 30sec room temperature 25°C set value 37°C)
O2 concentration recovery time	≤5 min (open the door 30sec set value 5%)
MOC	The inner chamber is made up of stainless steel and outer chamber with MS with powder coating
Light	Florescent light
Historical data storage	250,000 messages
Data export interface	USB interface
Scalability	Up to 2 units can be stacked.
Working environment temperature	18~30°C
Power supply	230V±10%, 50~60Hz
Inner Dimensions (L x D x H) mm	450x450x450			550x600x600
Outer Dimensions (L x D x H) mm	650x650x750			750x800x850
