₹102,300.00 Original price was: ₹102,300.00.₹93,000.00Current price is: ₹93,000.00.

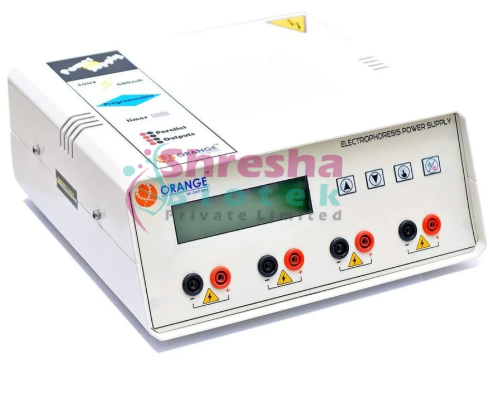

Characteristic feature
Type of Output: Constant-Voltage
Increment: 1V, 1mA, 1W
Output Range: 5-300V, 1-400mA, 1-120W.
Timer Range: 1min~99hr, 59min
Display: LCD display with backlight
TECHNICAL PARAMETERS
Volume [L]: 220
Temp. Range [°C]: +5 to 60
Temp. Resolution [°C]: 0.1
Temp. Fluctuation at 37°C [°C]: ±0.5
Temp. Uniformity at 37°C [°C]: ±1
Rotation Rate [rpm]: 1~300
Rotation Accuracy [rpm]: ±1
Vibration Amplitude [mm]: Ø25
Timer Range [h]: 0~999
Number of Trays [pc]: 1 included ( 2 optional)
Power Supply [V, Hz]: 220, 50/60
Internal Dimensions W×D×H [mm]: 600x600x600
Housing Dimensions W×D×H [mm]: 755×870×1310
Tray Size W×D [mm]: 595x595mm
Standard Configuration [pcxml]: 16×250/500 or 9×1000 ml or 4×2000 ml
Net Weight [kg]: 220
| Category | DR-B2 |
|---|---|
| External Size (W*D*H) | 1383*775*2250 mm |
| Internal Size (W*D*H) | 1210*600*660 mm |
| Tested Opening | Safety height 10″ |
| Max Opening | 470 mm |
| Airflow Volume (Exhaust) | 100%: 1320 m³/h (776 cfm) |
| Front Window | Motorized;Two-layer laminated toughened glass ≤6mm, Anti-UV |
| Filter | ULPA,99.9995% efficiency at 0.12μm (02), filter life indicator |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49 ≤60 dB |
| Illumination | ≥1000 Lux |
| Socket | 2, Total consumption ≤500W |
| Display | Touch screen |
| Tap | Water tap*1, Gas tap*1 |
| Power Supply | AC220V,50/ 60Hz |
| Consumption | 400W |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
| Blower | One ECM motor, 230V AC; Speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steel Frame,Decorative Plate: cold-rolled steel with anti- bacteria powder coating |
| UV Lamp | 30W |
| Germicidal UV Lamp | Emission of 253.7 nanometers for most efficient decontamination |
| Certification | NSF 49 |
| Illuminating Lamp | LED lamp, 20W*2 |
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, Gas tap*1, Drain valve, Waterproof socket*2 |
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, exhaust duct |
| Package Size (W*D*H) | 1540*1080*1900 mm |
| Gross Weight | 340 kg |
| Air flow direction | Vertical and Horizontal |
|---|---|
| Air cleanliness | Class 100 |
| Construction | SS / Powder coated MS / GI sheet/ wooden with 18 gauge ss. |
| Sash (front door) | Manual/ Motorized sliding type (Acrylic transparent and tiffin glass) |
| Side panels | Acrylic /polycarbonate / SS |
| Air velocity | 0.4 m/s to 0.6 m/s/ 0.45m/sec |
| Illumination | Fluorescent or LED light/ UV light (800lux, glare-free) |
| Noise level | 65 ±5 dB |
| Power supply | 220 volts / 50 Hz |
| Air filtration |
|
| Air filtration |
|
| Optional |
|
| Parameters | Specifications |
|---|---|
| Temperature range | Lights Off: 5°C to 60°C; Light ON: 10°C to 60°C |
| Temperature controller | Digital PID controller with SV & PV values |
| Temperature accuracy | ±1% |
| Humidity | 50% to 90% |
| Humidity controller | Digital PID controller with SV & PV values |
| Humidity accuracy | ±3% |
| Illumination | 3 sides illumination with detachable LED lights(10000 LUX or 23000 LUX) |
| Light timer | 24×7 weekly digital timer |
| Shelves | Stainless steel or chrome plated (Height adjustable) |
| Humidity system | SS boiler tank with immersion heater and automatic water replenishment by external tank |
| Safety | Audio / visual alarm for temperature deviation |
| Optional | Exterior made of stainless steel 304 / 316 White painted steel inner walls Door open alarm Plant growth racks UV lamp PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels |
| Power supply | 220 Volts / 50 Hz |
| DR-150PGC | 800 x 500 x 380 | 150 L |
| DR-250PGC | 550 x 450 x 1000 | 250 L |
| DR-350PGC | 550 x 550 x 1200 | 350 L |
| DR-450PGC | 800 x 600 x 1250 | 600 L |
| DR-800PGC | 1120 x 600 x 1200 | 800 L |
| DR-1000PGC | 1150 x 670 x 1300 | 1000 L |
