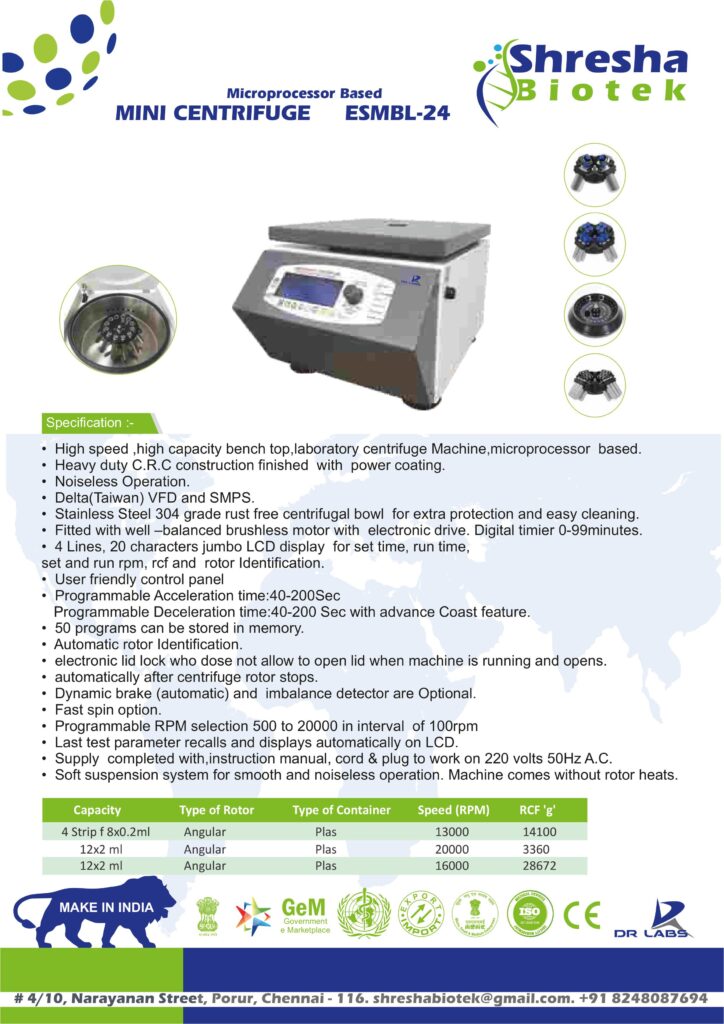

CENTRIFUGE / MICRO CENTRIFUGE/NON-REFRIGERATED CENTRIFUGE/ MINI CENTRIFUGE

Rotor

Max Speed (rpm)

Max Volume (ml)

Max. RCF（×g

Swing Rotor(Round bucket)

4000

4x250ml

2880

Swing Rotor(Square bucket)

4000

4x250ml

2830

Swing Rotor

4000

4x16x7ml

2860

Swing Rotor

4000

4x16x5ml

2470

Swing Rotor

4000

4x13x10ml

2830

Microplate rotor(box type)

4000

2×3×96 well

2310

Microplate rotor(fame type)

4000

2×3×96 well

2270

Swing out rotor

5000

4×1×50ml

4730

Swing out rotor

5000

4×1×100ml

4730

Swing out rotor

4000

4×2×100ml

3020

Swing out rotor

4000

4×2×50ml

3020

Swing out rotor

4000

4×4×15ml

3020

Swing out rotor

4000

4×6×15ml

3200

Swing out rotor

4000

4×4×10/7ml

2770

Swing out rotor

4000

4×4×10/7ml

2770

Swing out rotor

4000

4×4×5ml adapter

2360

Swing out rotor

4000

4×6×10/7ml

2770

Swing out rotor

4000

4×6×5ml adapter

2360

Swing out rotor

4000

4×8×10/7ml

2770

Swing out rotor

4000

4×8×5ml adapter

2360

Swing out rotor

4000

4×12×5ml

2480

Swing out rotor

4000

4×12×7ml

2760

Swing out rotor

4000

4×10×10ml

2880

Fixed Rotor

14000

4×8PCR

12070

Fixed Rotor

13000

6×8PCR

16080

Fixed Rotor

14000

8×8PCR

13390

Fixed Rotor

13000

12×8PCR

17220

Fixed Rotor

14000

40×0.5ml

19960

18B-33

Fixed Rotor

18500

12×1.5ml

23990

ax. Speed	18500rpm
Max. RCF	23990×g
Max. Capacity	4×250ml
Time Range	0~99min
RPM/RCF Convert	Yes
Noise (dB)	≤ 55
Temperature	/
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	/
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Certificates	CE,ISO & Calibration report are available
Size (W x D x Hmm)	400×570×320mm
Net Weight(Kg)	40KG

Rotors :

NO	Rotor	Max Speed (rpm)	Max Volume (ml)	Max. RCF（×g
1	Swing Rotor(Round bucket)	4000	4x250ml	2880
2	Swing Rotor(Square bucket)	4000	4x250ml	2830
3	Swing Rotor	4000	4x16x7ml	2860
4	Swing Rotor	4000	4x16x5ml	2470
5	Swing Rotor	4000	4x13x10ml	2830
6	Microplate rotor(box type)	4000	2×3×96 well	2310
7	Microplate rotor(fame type)	4000	2×3×96 well	2270
8	Swing out rotor	5000	4×1×50ml	4730
9	Swing out rotor	5000	4×1×100ml	4730
10	Swing out rotor	4000	4×2×100ml	3020
11	Swing out rotor	4000	4×2×50ml	3020
12	Swing out rotor	4000	4×4×15ml	3020
14	Swing out rotor	4000	4×6×15ml	3200
15	Swing out rotor	4000	4×4×10/7ml	2770
16	Swing out rotor	4000	4×4×10/7ml	2770
17	Swing out rotor	4000	4×4×5ml adapter	2360
18	Swing out rotor	4000	4×6×10/7ml	2770
19	Swing out rotor	4000	4×6×5ml adapter	2360
20	Swing out rotor	4000	4×8×10/7ml	2770
21	Swing out rotor	4000	4×8×5ml adapter	2360
22	Swing out rotor	4000	4×12×5ml	2480
23	Swing out rotor	4000	4×12×7ml	2760
24	Swing out rotor	4000	4×10×10ml	2880
25	Fixed Rotor	14000	4×8PCR	12070
26	Fixed Rotor	13000	6×8PCR	16080
27	Fixed Rotor	14000	8×8PCR	13390
28	Fixed Rotor	13000	12×8PCR	17220
29	Fixed Rotor	14000	40×0.5ml	19960
18B-33	Fixed Rotor	18500	12×1.5ml	23990

Model no.	DR -80
Volume	450 L
Temperature	-40 TO -80℃
Insulation thickness	150mm
Cooling type	Direct cooling
Electric protection	I/B
Refrigerant	Mixed
Interior dimension	552x635x1142mm
Consumption	9.8kW. h/24h
Power	1000W
Power Supply	220V/50Hz
Climate class	N
Alarm type	Sound/ light
Exterior dimension	855x965x1865mm
Package dimension	960x1030x2030mm
Net weight	205 kg
Gross weight	255 kg
Optional function	Printer & recorder

Construction	Economy Model	Double Walled Model	Triple Walled Model
MOC Exterior	Painted MS sheet	SS 304 (mirror finish)	SS 304 (mirror finish)
No. of walls	Two	Two	Three
Lid	Polished MS	SS 304	SS 304
Interior	SS 304 with silicon gasket
Working Pressure	15-30 psi
Working Temp.	121°C to 134°C
Controller	Auto set to 15psi & 121°C
Pressure display	Analogue dial gauge
Timer	Mechanical timer
Programmable	Programmable automatic start timer
Hydraulic tested	Hydraulically Tested up to 40 psi (ASME Guideline)
Lick lock	Single hand easy lock system for operating and closing
	Program for heating sterilization, exhaust, warming and completion.
Basket	Stainless steel basket	Stainless steel basket	Not Required
Power supply	220 Volts 50Hz
Standard Fittings	Low water indicator; Automatic pressure switch; Pedal lifting device Steam release valve; Water outlet valve; Spring loaded safety valve Power cable with three pin tops
Optional Accessories	Fully stainless steel construction (GMP) Up to 134°C temperature range PID temperature controller cum timer with alarm (buzzer) PLC with HMI interface with data logging 21 CFR Part 11 software Thermal Printer Lower water cut-off

Air flow direction	Vertical and Horizontal
Air cleanliness	Class 100
Construction	SS / Powder coated MS / GI sheet/ wooden with 18 gauge ss.
Sash (front door)	Manual/ Motorized sliding type (Acrylic transparent and tiffin glass)
Side panels	Acrylic /polycarbonate / SS
Air velocity	0.4 m/s to 0.6 m/s/ 0.45m/sec
Illumination	Fluorescent or LED light/ UV light (800lux, glare-free)
Noise level	65 ±5 dB
Power supply	220 volts / 50 Hz
Air filtration	Pre-Filter – 5 microns (washable) HEPA filter (0.3 Microns)
Air filtration	Air / gas cock, Mains on/off switch, Light on/off switch UV Light on/off switch, Blower on/off switch
Optional	Motorized sliding door LCD display for velocity, time & lamp on/off UV Germicidal lamp UV Hour meter Magnehelic gauge Extra power outlet switchr Foot rest Levelling legs for stand DOP HEPA filter testing
