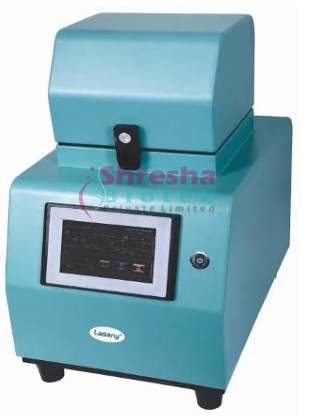

Tissue Grinder Homogenizer

Parameter	DR-04WB	DR-06WB
Column	2 rows 4 holes	2 rows 6 holes
Temp. range	Rt+5~100℃
Temp. Resolution Ratio	0.1℃
Temp. Motion	±0.5℃
Temp. Uniformity	±1℃
Water sink	Stainless steel, surface electrolysis treatment
Outer shell	Cold rolled steel plate, surface electrostatic powder spray.
Heater	Stainless steel U-type heating tube
Power rating	1200 W
Temp. control mode	PID Controller
Timer	0 – 999 min（with timing function）
Timing function	Timing function, auto stop feature
Program	Optional: multi-section program control
Additional function	Deviation correction, menu key lock, power failure back-up, power-off parameter memory, PID-Tunable control
Sensor	Thermal resistor
Safety device	Over-temperature alarm, short-circuit protection.
Inner Chamber size(WLH)	305 x 305 x 130 mm	305 x 470 x 130 mm
Packing size (WLH)	415 x 415 x 275 mm	400 x 560 x 250 mm
Internal volume	12 L	18.6 L
Cover number per hole	∅120 mm
Power Supply 50/60Hz	220V, 50/60 Hz
Weight	6.5 kg	8 kg

Specification	Details
Test Tube Holder Size & Capacity	2 ml × 24 holes
Maximum Speed	2500 RPM
Make	Lasany
Fixture Stroke	32 mm (vertical)
Time Setting	Yes
Frequency Setting	Yes
Pause Setting	Yes
Sample Crushing Vibration	600–2100 times/min
Rated Power Display	375 W
Display	Touch Screen
Alarm Function	Yes
Auto Storage Program	Yes

Characteristic	Description
Test Holder Capacity	2 ml × 24 holes
Grinding and Homogenization	The tissue grinder homogenizer can perform dry grinding, wet grinding, mixing, and homogenization.
Frequency Tracking and Safety	It features automatic frequency tracking and side-lock for additional safety and can process a wide variety of samples, including plant tissues, animal tissues, cells, bacteria, and yeast.
Microprocessor Technology	The microprocessor technology includes automatic fault alarms and automatic storage of programs. It is widely used in the fields of Biochemistry, Microbiology, Pharmaceutical Chemistry, Surface Chemistry, Physical Chemistry, and Zoology.
Tissue Grinder Homogenizer Function	A tissue grinder homogenizer, also known as a bead beater, is a laboratory device that breaks down tissues into uniform samples by releasing cellular components for analysis.
Applications	It is commonly used in Molecular Biology, Biochemistry, and research for the preparation of DNA, RNA, protein, and other analysis.

Temperature range	5°C to 60°C
Temperature controller	Digital PID controller
Temperature accuracy	±1%
Temperature sensor	PT-100
Humidity range	50% to 90% RH
Humidity controller	Digital PID controller
Humidity accuracy	±3%
Light	150-170 micromole/m2/sec
Light timer	24×7 weekly digital timer
Construction	Double walled
Exterior	Mild steel powder coated
Interior	Stainless steel 304
Outer door	Single or double solid doors with lock & key
Inner door	Glass door to view samples
Shelves	3 to 12 (Height adjustable)
Safety	Audio / visual alarm for temperature deviation
Optional	Exterior made of stainless steel 304 / 316 PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels
Power supply	220 Volts / 50 Hz
