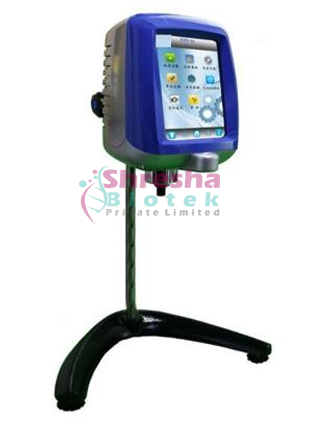

TOUCH SCREEN RHEOMETER

Sale!

Product Code: DR-V400

Categories: BIOCHEMISTRY, LABORATORY EQUIPMENTS, MICROBIOLOGY

Original price was: ₹654,500.00.Current price is: ₹595,100.00.

Specifications:

Measuring Range mpa.s	20~2000000 mPa.s
Rotation Rate (RPM/min)	0.3 – 100 RPM (Resolution 0.1 RPM)
Rotor	1#, 2#, 3#, 4#
Demand Amount of Test Sample	400-500mL (According to different rotators)
Display Information	Viscosity, rotor, rotation rate, torque%, measurement time, temperature, shear rate, shear stress
Test Accuracy	±1% (Newtonian Fluid FS)
Repeatability	±0.2%
Reproducibility	±0.2%
Stop Mode	Three kinds of measurement end condition settings : time, temperature, torque
Power Supply	Input : AC 220V / 50Hz
Power	40W

Features:

1. 7 inch touch screen : rich information and easy to operate

2. DV Software (optional): record flow profile

3. Shear rate and shear stress are displayed

4. Anti-static shell and melt lifter

5. Build-in RTD temp probe

6. ARM chip processor : higher data processing speed

7. New designed durableaxle

8. Powerful human-computer interactive interface

9. Variety of viscosity units

Available On Order

1 YEAR WARRANTY

(GST Extra)
