BIO SAFETY CABINET A2

Product Code: DR-BSC-A2

Categories: ANALYTICAL INSTRUMENTS, LABORATORY EQUIPMENTS, MICROBIOLOGY, MOLECULAR BIOLOGY

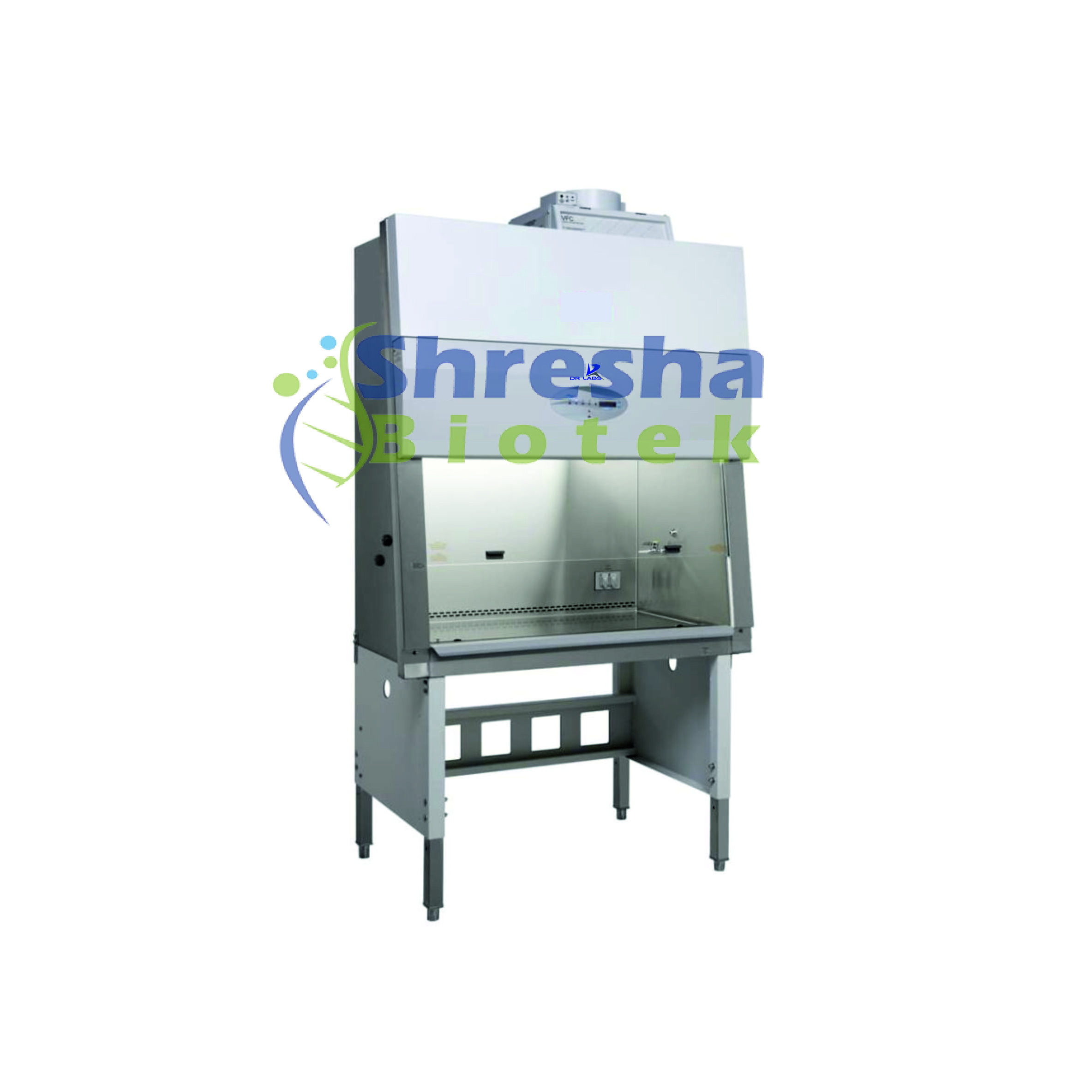

The Class II, Type A2 Biosafety Cabinet is designed to provide protection to the operator, environment, and product during handling of low to moderate risk biological materials. It is ideal for use in microbiological research and pharmaceutical environments where protection against contaminants is essential.
The A2 model utilizes a combination of inflow and downflow HEPA/ULPA filtered air, creating a sterile environment within the work area, while simultaneously preventing exposure to hazardous substances. Featuring a motorized/ manual front window, touch screen/LCD display, and advanced airflow control system, this cabinet ensures ease of use, safety, and superior performance

These cabinets are ergonomically designed to provide long service life. Only thick metal sheets and pipes are used in construction so that you may get the finest and safest Biosafety Cabinet in the market today. There are three different MOC used.
Complete Stainless Steel 304 / 316.
Inner Stainless Steel, Outer Mild Steel.
Stainless Steel bench, rest mild Steel.
NSF-certified unit is built with an anti-bacterial powder-coated steel sheet exterior and an interior work chamber crafted from SS 304 stainless steel.

Motorized/Manual Front Window: Adjustable front window made from two-layer laminated toughened glass with UV protection.
Capacitive Touch Display/LCD: Real-time monitoring, fault alarms, and display of various values.
Adjustable Airflow: ECM (DC) blower/EBM (AC) blower with automatic wind speed adjustment.
Power-Off Memory: Automatically restores settings post power-off, with visual and alarm prompts
Ergonomic Design: Integrated operation area for easier disassembly and cleaning, with customizable base height.
Safety Interlocks: UV lamp interlocks with front window and fan to ensure safety during operation
Pre-set Timers: Schedule automatic startup/shutdown, control UV lamps, fans, and sockets.
Comfortable Hand Resting Surface: Large contact area for comfort during operation.
Energy Efficient: Airspeed adjustable to match filter blockage, reducing energy consumption.
