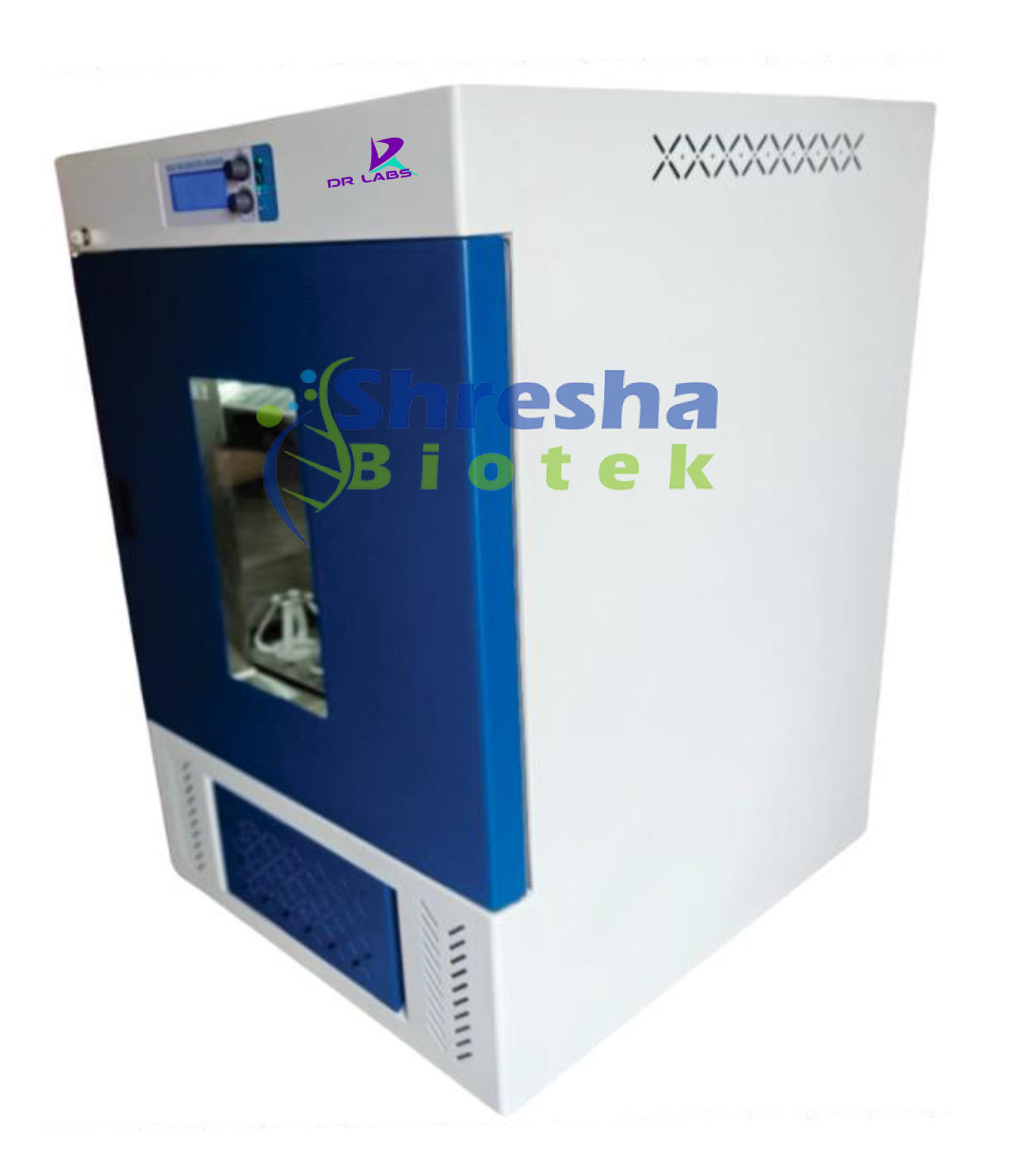

COOLING INCUBATOR SHAKER

Product Code: DR-CI-220

Categories: ANALYTICAL INSTRUMENTS, LABORATORY EQUIPMENTS, MICROBIOLOGY, MOLECULAR BIOLOGY

It is widely used in germ culture, ferment, hybridization, and research of biochemical reaction, enzyme and cellular tissue and all those require high temperature and oscillation frequency.

PRODUCT FEATURES

Vertical double-layered construct, compact but capacious.
Intelligent micro processing controller with Audio visual alarm.
Large LCD screen displays the setting parameters and the measured parameters.
7 inch full color touch display optional
The operating parameter locked by password to avoid mis-operation.
Timer up to 999 hours and 59 minutes;
Brushless DC motor design, wide speed range, constant torque, constant rotation speed, no carbon brush,maintenance- free.

Adopts imported bearing, long service life and low noise. Over temperature acoustic alarm function, the power supply can be cut off automatically when temperature is out of control.
Power-off recovery function, the equipment can restore working automatically according to the original setting program when the external power is recovered after a sudden cut off.
The acceleration control circuit starts slowly and accelerates smoothly to ensure the safety of the sample.
Electrostatic spray MS housing, mirror stainless steel chamber, toughened glass observation window;
Equipped with individual temperature limit switch, door switch and door lock.

TECHNICAL PARAMETERS

Volume [L]: 220

Temp. Range [°C]: +5 to 60

Temp. Resolution [°C]: 0.1

Temp. Fluctuation at 37°C [°C]: ±0.5

Temp. Uniformity at 37°C [°C]: ±1

Rotation Rate [rpm]: 1~300

Rotation Accuracy [rpm]: ±1

Vibration Amplitude [mm]: Ø25

Timer Range [h]: 0~999

Number of Trays [pc]: 1 included ( 2 optional)

Power Supply [V, Hz]: 220, 50/60

Internal Dimensions W×D×H [mm]: 600x600x600

Housing Dimensions W×D×H [mm]: 755×870×1310

Tray Size W×D [mm]: 595x595mm

Standard Configuration [pcxml]: 16×250/500 or 9×1000 ml or 4×2000 ml

Net Weight [kg]: 220

Related products

-40°C DEEP FREEZER

SPECIFICATIONS:

Temperature range	-10° C to -40°C
Temperature accuracy	±0.5°C
Temperature Uniformity	±0.1°C
Temperature controller	Dual display PID controller
Temperature sensor	PT100
Inner chamber	SS 304
External cabinet	Powder coated GI sheet
Insulation	Glass wool
Door	Insulated door Mechanical latch / clamp
Heaters	Resistance wire heaters
Shelves	SS wire mesh (removable)
Standard fittings	Mains on/off switch Load Indicator Fan on/off switch
Power supply	220 Volts 50Hz
Optional	GMP construction (Inner & outer SS304) PLC + HMI controller w/ USB interface 21 CFR Part 11software Data logger w/ USB interface Thermal printer Inner chamber LED light

STABILITY / HUMIDITY CHAMBER

SPECIFICATIONS:

Temperature Range	5°C to 60°C
Temperature accuracy	±1°C
Temperature controller	Microprocessor PID controller Display of SV & PV Low / High buzzer
Humidity Range	40% to 95% RH
Humidity accuracy	±3% RH
Humidity controller	Microprocessor PID controller Display of SV & PV Low / High buzzer
Chamber Illumination	Fluorescent white light
Construction	Double walled
Insulation	PUF insulation
Exterior	Powder coated GI sheet
Interior	Stainless steel 304
Door	Solid insulated door with lock and key
Inner door	Glass door fitted in steel frame
Shelves / trays	2 to 5 steel wire mesh trays (height adjustable)
Air Circulation	Axial fan / blower
Refrigeration	CFC Free compressor with condenser, motor and relay complete unit
Humidity system	SS tank with heater Low water buzzer Auto filling water system
Optional	Stainless steel exterior (GMP) PLC based HMI controller w/ USB interface RS 485 interface 21 CFR part 11 software UV light Storage racks Validation port Caster wheels with brake IQ, OQ and PQ documents

Volume (Liters)	Inner Chamber size (mm)	Trays
200 Liters	600 x 600 x 600	2
324 Liters	600 x 600 x 900	2
450 Liters	600 x 600 x 1250	3
600 Liters	600 x 800 x 1250	3
800 Liters	800 x 800 x 1250	4
1000 Liters	800 x 800 x 1570	4

CARBON-DIOXIDE INCUBATOR

SPECIFICATIONS:

Item Name	CO2 Incubator
Model No.	DR-CO2-80UV	DR-CO2-80	DR-CO2-80+	DR-CO2-180UV	DR-CO2-180	DR-CO2-180+
Sterilization	UV	140°C	180°C	UV	140°C	180°C
Volume	80L	80L	80L	180L	180L	180L
Microprocessor-based controller	Proprietary algorithm to control CO2 and temperature
Display	LCD touch display
Temp control range	Ambient +5°C- 60°C
Temp stability	±0.1°C
Temp field uniformity	±0.3°C (at 37°C )
Timer function	0 – 999hr 59 min.
CO2 measurement principle	Infrared (IR) detection
CO2 control range	0-20%
CO2 display resolution	0.10%
CO2 supply	0.05~0.1MPa is recommended
Relative Humidity	Ambient humidity ~95% at 37°C
HEPA filtration	HEPA filters at the gas inlet, ISO 5 level, 5 minutes
Temperature recovery time	≤10 min (open door 30sec room temperature 25°C set value 37°C)
O2 concentration recovery time	≤5 min (open the door 30sec set value 5%)
MOC	The inner chamber is made up of stainless steel and outer chamber with MS with powder coating
Light	Florescent light
Historical data storage	250,000 messages
Data export interface	USB interface
Scalability	Up to 2 units can be stacked.
Working environment temperature	18~30°C
Power supply	230V±10%, 50~60Hz
Inner Dimensions (L x D x H) mm	450x450x450			550x600x600
Outer Dimensions (L x D x H) mm	650x650x750			750x800x850

RECTANGULAR AUTOCLAVE

Construction	Economy Model	Double Walled Model	Triple Walled Model
MOC Exterior	Painted MS sheet	SS 304 (mirror finish)	SS 304 (mirror finish)
No. of walls	Two	Two	Three
Lid	Polished MS	SS 304	SS 304
Interior	SS 304 with silicon gasket
Working Pressure	15-30 psi
Working Temp.	121°C to 134°C
Controller	Auto set to 15psi & 121°C
Pressure display	Analogue dial gauge
Timer	Mechanical timer
Programmable	Programmable automatic start timer
Hydraulic tested	Hydraulically Tested up to 40 psi (ASME Guideline)
Lick lock	Single hand easy lock system for operating and closing
	Program for heating sterilization, exhaust, warming and completion.
Basket	Stainless steel basket	Stainless steel basket	Not Required
Power supply	220 Volts 50Hz
Standard Fittings	Low water indicator; Automatic pressure switch; Pedal lifting device Steam release valve; Water outlet valve; Spring loaded safety valve Power cable with three pin tops
Optional Accessories	Fully stainless steel construction (GMP) Up to 134°C temperature range PID temperature controller cum timer with alarm (buzzer) PLC with HMI interface with data logging 21 CFR Part 11 software Thermal Printer Lower water cut-off
