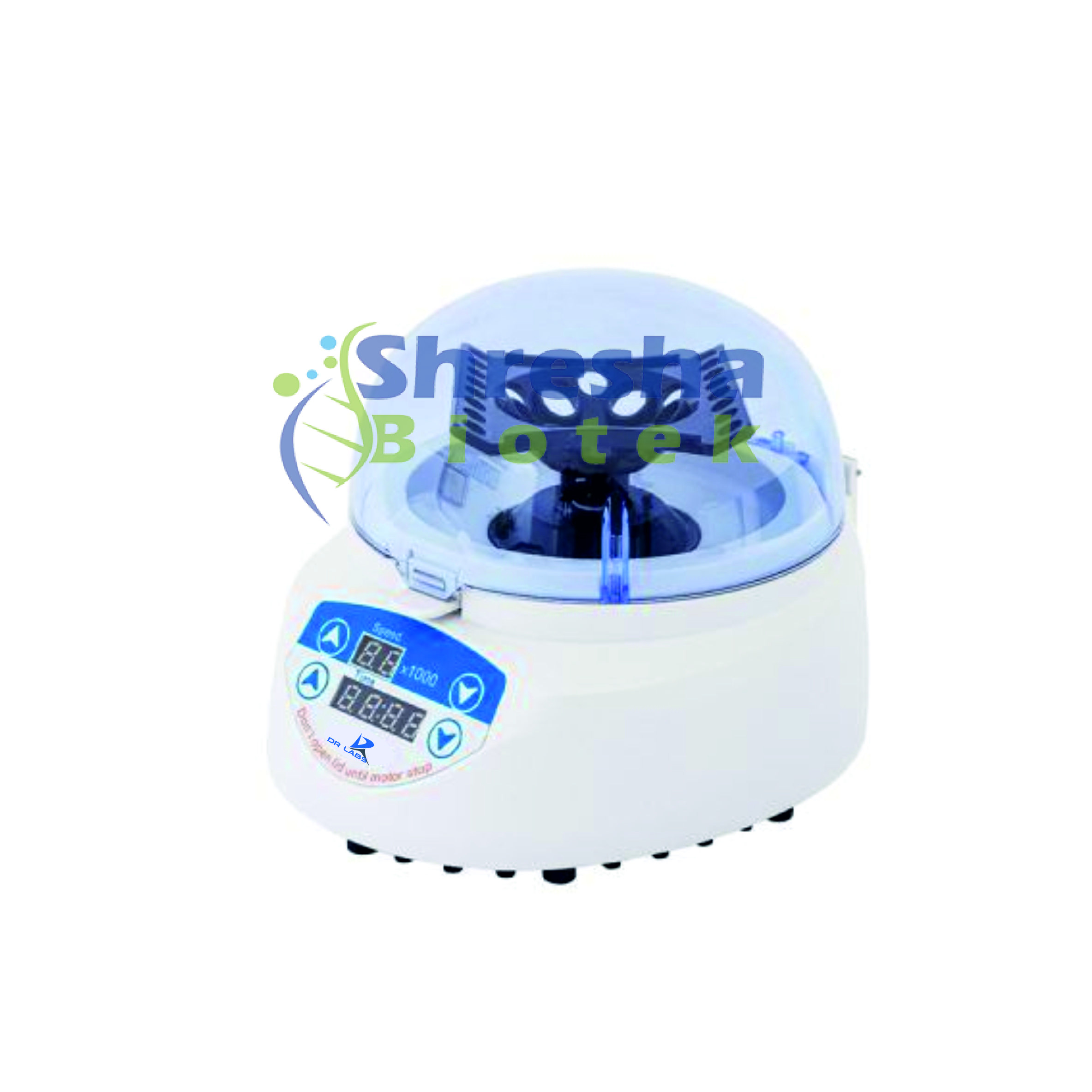

DR Labs DR-MC-15 is a powerful High Speed Micro Centrifuge Machine designed for functionality & safety. It’s brushless motor, door interlock, over-speed detection, strong braking makes it a winner in all fronts.
SALIENT FEATURES:
• Powerful centrifugal force of 15100 x g and Max. speed of 15000rpm
• Dedicated 3D digital wheels to adjust speed and time
• Programmable operation can store up to 10 programs
• Motor-driven lid locking system for high safety and reliability
• Heavy base eliminates vibration and movement when running
• High speed accuracy of ±20rpm
• PULSE offers quick spins
• Large LED display for easy reading
• Fast acceleration and braking system
• Comes with Aluminum rotor with rotor capacity: 1.5/2.0/0.2/0.5mL x 12
• Explosion-proof and fully enclosed strong inner steel structure for full protection
• Metal Rotor
| Model | DR-MC-15 |
|---|---|
| Make | DR Labs |
| Speed Range | 500~15000 RPM |
| Speed Increament | 100 RPM |
| Max. RCF (x g) | 15100, increment: 100 |
| Speed Accuracy | ±20 |
| Rotor Capacity | 0.2ml/0.5ml/1.5ml/ 2ml×12 |
| Timer | Timer: 30s~99 min |
| Motor | Brushless DC Motor |
| Safety Features Noise | Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis |
| Acceleration/Brake Time | Acceleration: 30s, Braking:10s |
| Power Supply | AC 220V / 50Hz |
| Dimension | 256 x 225 x 155 mm & 6 kg |
| Weight | 6 kgs |
TECHNICAL PARAMETERS
Volume [L]: 220
Temp. Range [°C]: +5 to 60
Temp. Resolution [°C]: 0.1
Temp. Fluctuation at 37°C [°C]: ±0.5
Temp. Uniformity at 37°C [°C]: ±1
Rotation Rate [rpm]: 1~300
Rotation Accuracy [rpm]: ±1
Vibration Amplitude [mm]: Ø25
Timer Range [h]: 0~999
Number of Trays [pc]: 1 included ( 2 optional)
Power Supply [V, Hz]: 220, 50/60
Internal Dimensions W×D×H [mm]: 600x600x600
Housing Dimensions W×D×H [mm]: 755×870×1310
Tray Size W×D [mm]: 595x595mm
Standard Configuration [pcxml]: 16×250/500 or 9×1000 ml or 4×2000 ml
Net Weight [kg]: 220
| Parameters | Specifications |
|---|---|
| Temperature range | Lights Off: 5°C to 60°C; Light ON: 10°C to 60°C |
| Temperature controller | Digital PID controller with SV & PV values |
| Temperature accuracy | ±1% |
| Humidity | 50% to 90% |
| Humidity controller | Digital PID controller with SV & PV values |
| Humidity accuracy | ±3% |
| Illumination | 3 sides illumination with detachable LED lights(10000 LUX or 23000 LUX) |
| Light timer | 24×7 weekly digital timer |
| Shelves | Stainless steel or chrome plated (Height adjustable) |
| Humidity system | SS boiler tank with immersion heater and automatic water replenishment by external tank |
| Safety | Audio / visual alarm for temperature deviation |
| Optional | Exterior made of stainless steel 304 / 316 White painted steel inner walls Door open alarm Plant growth racks UV lamp PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels |
| Power supply | 220 Volts / 50 Hz |
| DR-150PGC | 800 x 500 x 380 | 150 L |
| DR-250PGC | 550 x 450 x 1000 | 250 L |
| DR-350PGC | 550 x 550 x 1200 | 350 L |
| DR-450PGC | 800 x 600 x 1250 | 600 L |
| DR-800PGC | 1120 x 600 x 1200 | 800 L |
| DR-1000PGC | 1150 x 670 x 1300 | 1000 L |
| Temperature range | 5°C to 60°C |
| Temperature controller | Digital PID controller |
| Temperature accuracy | ±1% |
| Temperature sensor | PT-100 |
| Humidity range | 50% to 90% RH |
| Humidity controller | Digital PID controller |
| Humidity accuracy | ±3% |
| Light | 150-170 micromole/m2/sec |
| Light timer | 24×7 weekly digital timer |
| Construction | Double walled |
| Exterior | Mild steel powder coated |
| Interior | Stainless steel 304 |
| Outer door | Single or double solid doors with lock & key |
| Inner door | Glass door to view samples |
| Shelves | 3 to 12 (Height adjustable) |
| Safety | Audio / visual alarm for temperature deviation |
| Optional | Exterior made of stainless steel 304 / 316 PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels |
| Power supply | 220 Volts / 50 Hz |
 SIZE:
| Model | Dimensions (mm) | Volume (Litres) | Volume (Cu. Ft.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DR-SGC171 | 505 x 415 x 830 | 171 | 6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC209 | 600 x 550 x 910 | 300 | 10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
STANDARD SIZE:
DR-SGC340 |
650 x 580 x 900 | 340 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC400 | 700 x 640 x 900 | 400 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC580 | 775 x 775 x 970 | 580 | 20 |
