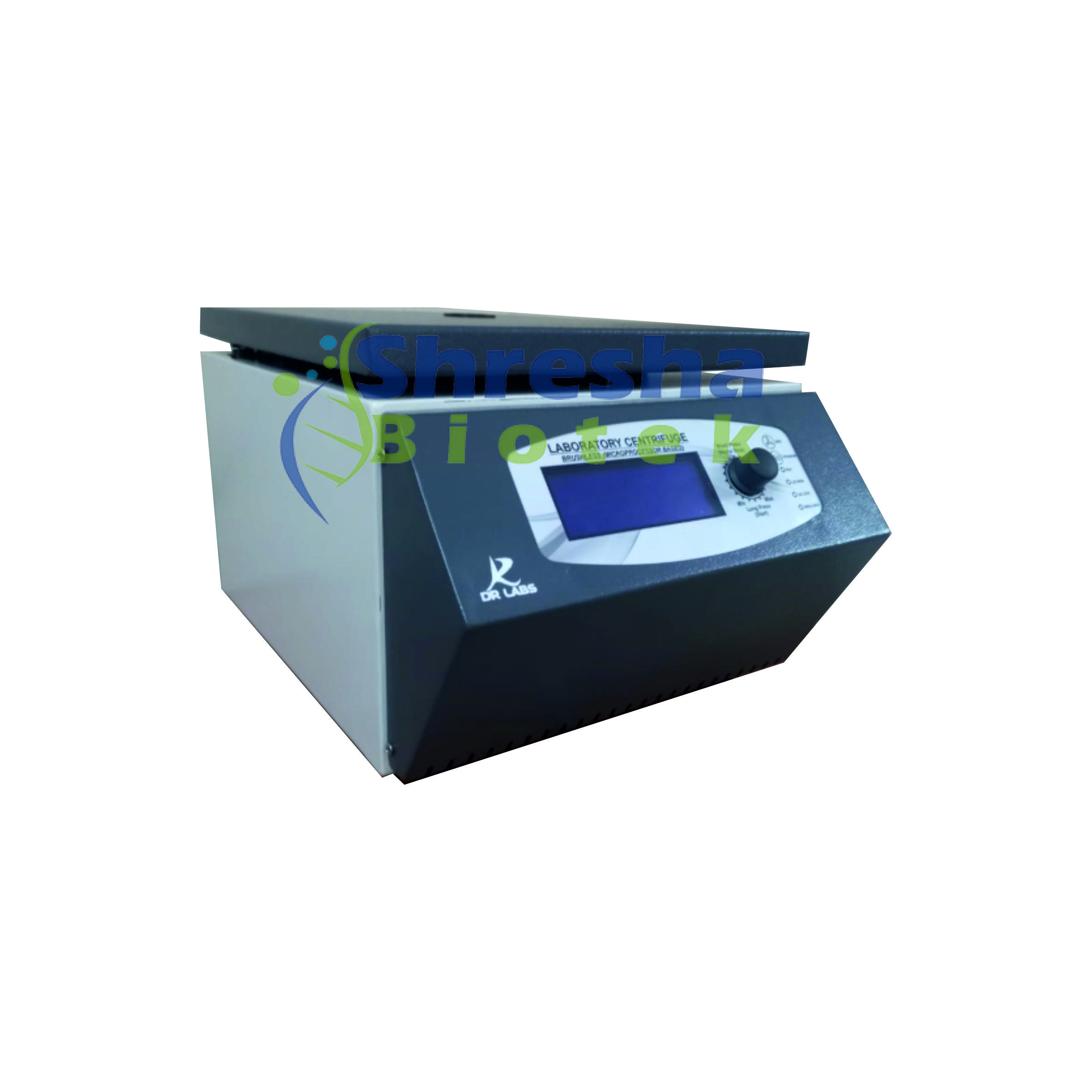

CENTRIFUGE

Product Code: N/A

Categories: ANALYTICAL INSTRUMENTS, LABORATORY EQUIPMENTS, MICROBIOLOGY, MOLECULAR BIOLOGY

Widely used for laboratory, chemistry.
10 kinds of acceleration and deceleration
More than 10 rotors for your choice
low noise, compact design and small vibration
High speed and low speed rotor in one centrifuge.
User-friendly LED display provides speed, time and temperature parameters.
Brushless frequency motor which in great torque, no powder pollution, free maintenance, quick in speed up and down.
Imbalance sensor and over speed sensor, the centrifuge body is made of high-quality steel, very safe.

ax. Speed	18500rpm
Max. RCF	23990×g
Max. Capacity	4×250ml
Time Range	0~99min
RPM/RCF Convert	Yes
Noise (dB)	≤ 55
Temperature	/
Acc/Dec	10 Kinds
Speed Accuracy	±20r/min
Temperature Accuracy	/
Voltage(V/Hz)	AC 220V/110V 50HZ/60HZ
Certificates	CE,ISO & Calibration report are available
Size (W x D x Hmm)	400×570×320mm
Net Weight(Kg)	40KG

NO	Rotor	Max Speed (rpm)	Max Volume (ml)	Max. RCF（×g
1	Swing Rotor(Round bucket)	4000	4x250ml	2880
2	Swing Rotor(Square bucket)	4000	4x250ml	2830
3	Swing Rotor	4000	4x16x7ml	2860
4	Swing Rotor	4000	4x16x5ml	2470
5	Swing Rotor	4000	4x13x10ml	2830
6	Microplate rotor(box type)	4000	2×3×96 well	2310
7	Microplate rotor(fame type)	4000	2×3×96 well	2270
8	Swing out rotor	5000	4×1×50ml	4730
9	Swing out rotor	5000	4×1×100ml	4730
10	Swing out rotor	4000	4×2×100ml	3020
11	Swing out rotor	4000	4×2×50ml	3020
12	Swing out rotor	4000	4×4×15ml	3020
14	Swing out rotor	4000	4×6×15ml	3200
15	Swing out rotor	4000	4×4×10/7ml	2770
16	Swing out rotor	4000	4×4×10/7ml	2770
17	Swing out rotor	4000	4×4×5ml adapter	2360
18	Swing out rotor	4000	4×6×10/7ml	2770
19	Swing out rotor	4000	4×6×5ml adapter	2360
20	Swing out rotor	4000	4×8×10/7ml	2770
21	Swing out rotor	4000	4×8×5ml adapter	2360
22	Swing out rotor	4000	4×12×5ml	2480
23	Swing out rotor	4000	4×12×7ml	2760
24	Swing out rotor	4000	4×10×10ml	2880
25	Fixed Rotor	14000	4×8PCR	12070
26	Fixed Rotor	13000	6×8PCR	16080
27	Fixed Rotor	14000	8×8PCR	13390
28	Fixed Rotor	13000	12×8PCR	17220
29	Fixed Rotor	14000	40×0.5ml	19960
18B-33	Fixed Rotor	18500	12×1.5ml	23990

Related products

Parameter	DR-04WB	DR-06WB
Column	2 rows 4 holes	2 rows 6 holes
Temp. range	Rt+5~100℃
Temp. Resolution Ratio	0.1℃
Temp. Motion	±0.5℃
Temp. Uniformity	±1℃
Water sink	Stainless steel, surface electrolysis treatment
Outer shell	Cold rolled steel plate, surface electrostatic powder spray.
Heater	Stainless steel U-type heating tube
Power rating	1200 W
Temp. control mode	PID Controller
Timer	0 – 999 min（with timing function）
Timing function	Timing function, auto stop feature
Program	Optional: multi-section program control
Additional function	Deviation correction, menu key lock, power failure back-up, power-off parameter memory, PID-Tunable control
Sensor	Thermal resistor
Safety device	Over-temperature alarm, short-circuit protection.
Inner Chamber size(WLH)	305 x 305 x 130 mm	305 x 470 x 130 mm
Packing size (WLH)	415 x 415 x 275 mm	400 x 560 x 250 mm
Internal volume	12 L	18.6 L
Cover number per hole	∅120 mm
Power Supply 50/60Hz	220V, 50/60 Hz
Weight	6.5 kg	8 kg

Chamber design	Round and Rectangular
Vacuum range	Up to -760 mmHg
Temperature range	Ambient+5°C to 150°C (Optional 200ºC)
Temperature sensor	PT100
Temperature controller	Digital PID controller Display of SV & PV
Inner chamber	Hermetically welded stainless steel 304 sheet
External cabinet	Powder coated GI sheet
Door	Solid door with clamp & toughened glass window
Gasket	High temperature silicon gasket
Shelves	Removable SS shelves
Vacuum fittings	Vacuum valve / exhaust valves (Rubber hose)
Standard fittings	Mains on/off switch Vacuum pump on/off switch Electric socket for vacuum pump
Power supply	220 Volts 50Hz
Optional	KF25 flange vacuum connection 21 CFR compliance software Temperature up to 250°C All SS 304 construction (GMP) Digital vacuum control through solenoid valves PLC + HMI controller with USB interface Diaphragm valves for inert gas Timer 99 hours 59 min Oil-free vacuum pump

NNER CHAMBER	SS 304 / 316/FRP COATING/PHENOLIC RESIN
EXTERIOR	Powder coated MS / Stainless Steel /GI
WORK TOP	SS 304 /Jet black granite
ILLUMINATION	Fluorescent tube light
BLOWER	Centrifugal exhaust blower (direct drive motor)
STANDARD FITTINGS	Water tap, sink with drainage system, electrical sockets and Canopy ventilation
OPTIONAL	FRP coating on inner walls Air foil Scrubber system Storage cabinet Caster wheels with brake Wet & dry service valves Certification (ASHRAE110- 1995 / EN-14175- 2003) Air Temperature indicator Flow Monitor IQ/OQ/PQ

Shaker Speed	(20 – 250 RPM) (350,400 & 500 OPTIONAL)
Orbit Dia	ø 25 mm
Accuracy	± 2% of maximum speed
Temperature range	5˚C above RT to 60˚C & with cooling 5°C-60°C (Customize temperature options available)
Resolution	0.1°C
Temp. accuracy	± 0.3 ̊C
Power supply	230V ± 10%, 50Hz
