GEL DOCUMENTATION SYSTEM

Product Code: N/A

Categories: ANALYTICAL INSTRUMENTS, LABORATORY EQUIPMENTS, MOLECULAR BIOLOGY

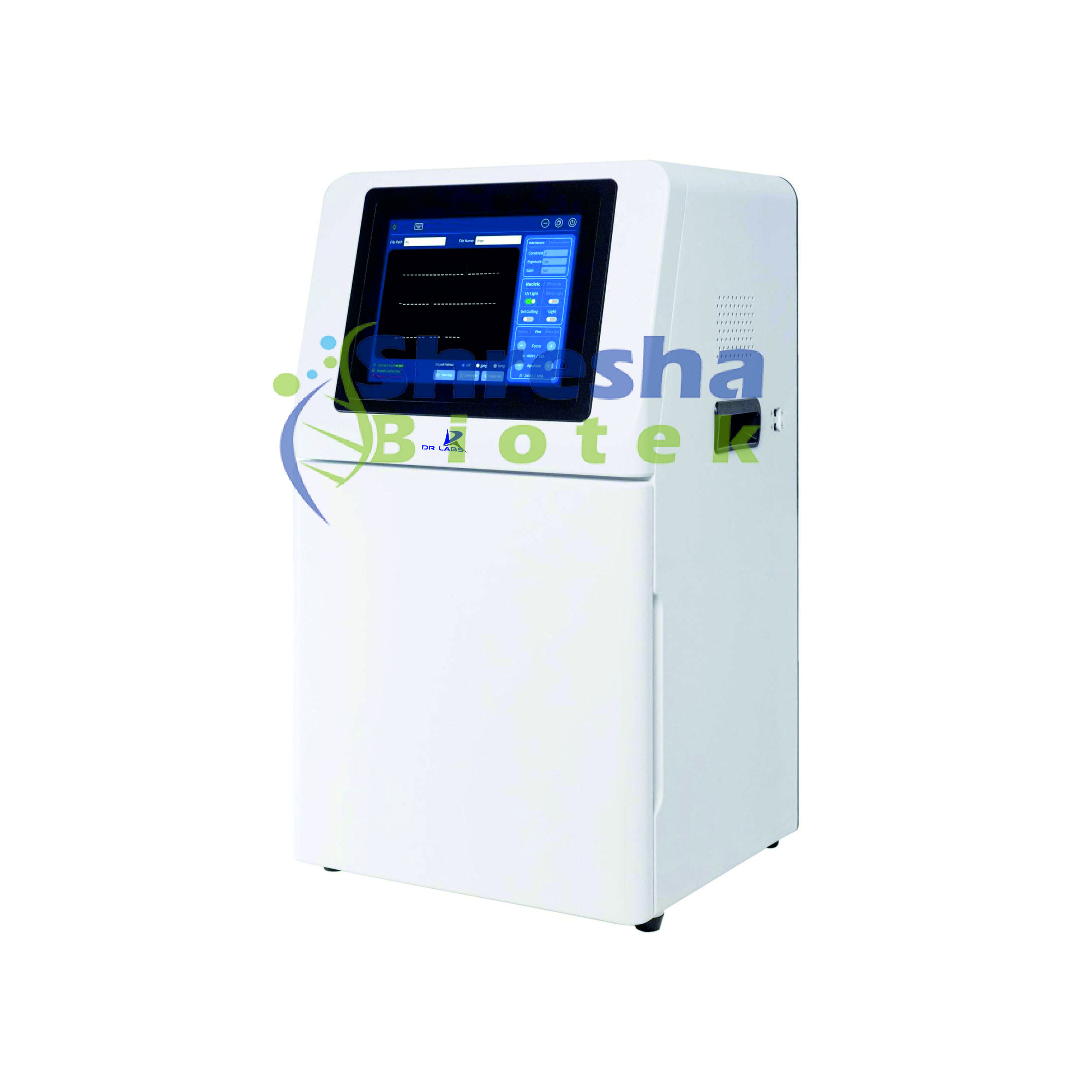

DR Labs is a device for imaging detection and analysis of gels, equipped with a high sensitivity 6.3- megapixel camera for rapid, accurate, and high- throughput detection and imaging of samples. It is widely used in the fields of life sciences, medicine, and environmental protection.

ANALYSIS SOFTWARE:

Analyze gel images from any source
Automatic lane and band detection
With full manual control over adding, modifying, and deleting lanes and bands.
Fix run distortions through Re-calibration.
Define any number of absolute Rf curves on the image to correct run distortions.
Define and subtract profile background.
Use the built in automatic methods or define background manually.

Pixel Resolution:	6.3 million pixels (3072 x 2048)
Pixel Size:	2.4 x 2.4 μm
Exposure Time:	17 μs – 15 s
Focal Length:	8-48mm
Grayscale:	16-bit (256 levels)
Field of View:	220 x 220 mm
Operating System:	Windows OS, 10.4-inch display (1024 x 768 resolution)
External Interfaces:	USB 3.0 x 2
Operating Voltage:	100V-240V
Power Consumption:	200W
Net Weight:	27kg
1D Image analysis:	1D image analysis and capture software.
