PROBE SONICATOR

Product Code: N/A

Categories: ANALYTICAL INSTRUMENTS, LABORATORY EQUIPMENTS, MOLECULAR BIOLOGY

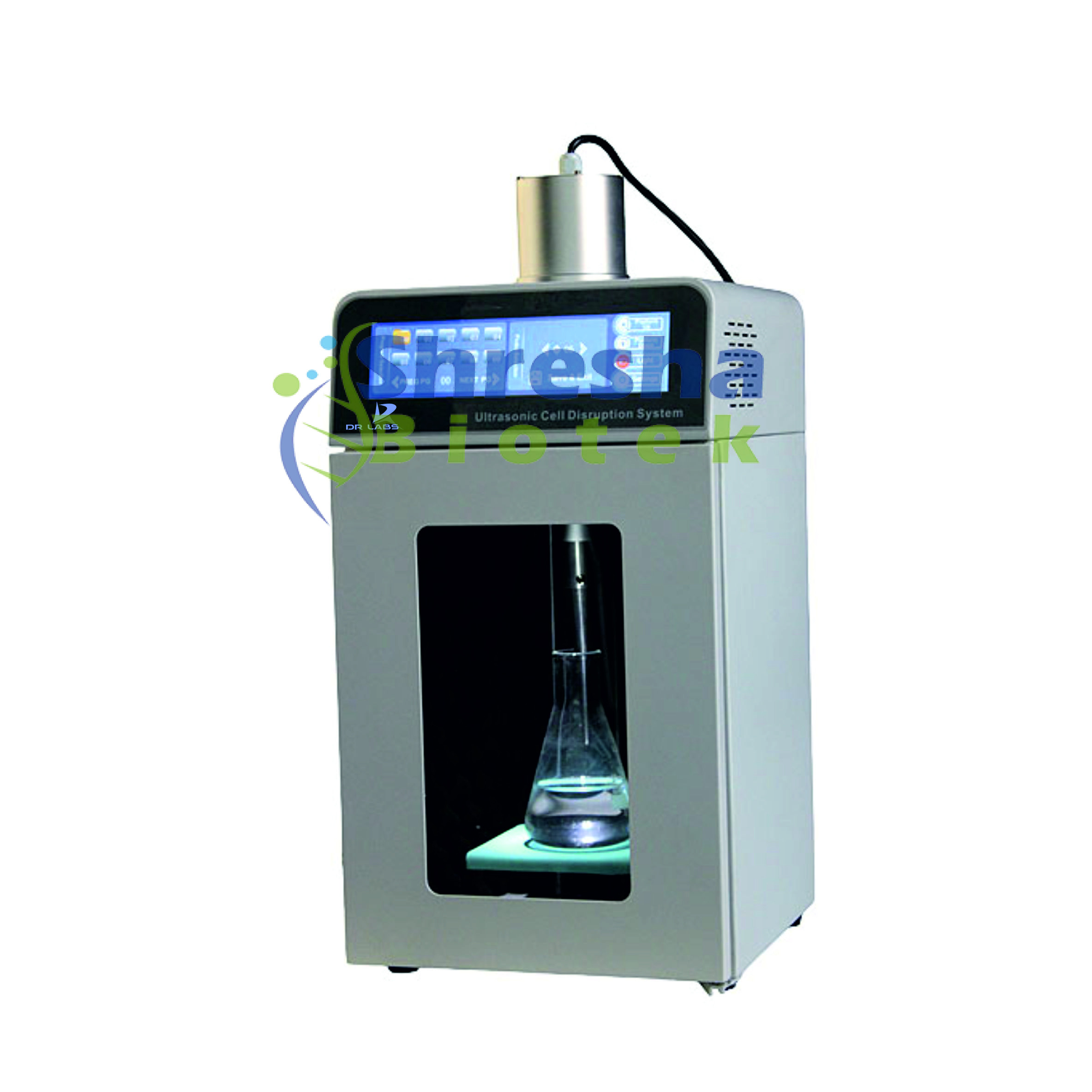

Digital Probe Sonicator with Sound proof enclosure is a state-of-the-art integrated machine. This machine houses both the ultrasonic generator and the sound proof enclosure in a single body. This results in better accuracy & space saving. This smart device also sports an electronic motorized platform for very good user experience. 8″ screen & user-driven captive touchscreen makes this device an all-rounder.

SALIENT FEATURES:
• Microprocessor controlled & completely
programmable
• Large touchscreen display
• Temperature indicator & max temp. alarm
• Motorized operation table for ease
• Auto-frequency for convenience & optimal processing
• Variable power setting
• Auto frequency tracking
• Safety Alarms

STANDARD ACCESSORIES:
• Ø 6 mm Probe
• Power cord
• Instruction Manual

Model	DR-P-650
Make	DR Labs
Frequency	18-28 kHz Auto Tracking
Frequency tracking accuracy	1 Hz real-time tracking
Processing Capacity	0.5ml to 500 ml
Standard Probe	Ø 6 mm (1/4″)
Display8″ Touchscreen	8″ Touchscreen
Display Function	Temperature, Power, Time, Gap Time
Temperature Range	0-99°C
Timer	Yes upto 99 hours, 59 mins, 59 secs
Alarm Function	Over temperature, over current, over load, transducer abnormality, etc.
Operating Table	Electrically operated motorized
Lighting	Available inside cabinet
Data Memory	9 memory group
Output Power	650W (adjustable)
Power Source	AC 220V / 50 Hz
Dimensions & Weight	280 x 280 x 490 mm – 10.2 kg
