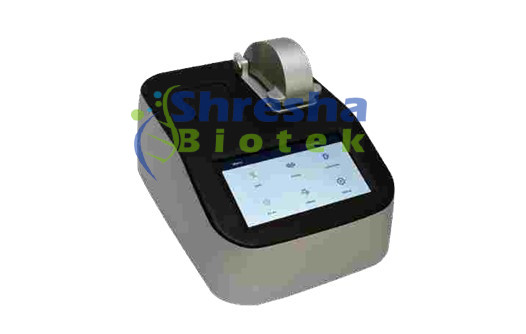

FEATURES:
1. 7 inch touch screen with simple interface. No computer required 3. Only require 0.5-2ul sample to perform accurate measurements.
2. Android operating system with free software update
3. Only require 0.5-2ul sample to perform accurate measurements.
4. Long life’s Xenon flash lamp for up to 10 years
5. Flexible data output. The data can be printed with built-in printer, and output via USB memory stick
6. OD600 measurement, ideal for bacterial concentration measurement
7. Direct micro-volume measurement with 0.5-2ul of sample. Eliminates the need for expensive accessories. 8. Wide range of wavelength (190-850nm)
9. Turn on and instantly measure without lamp warm up time; Full scan capability from 200-800nm with 6 sec. 10. Switch off automatically when the machine is idle for more than 5mins, and awake by touching the screen.
| Model | DR-SP-350 | Absorbance accuracy |
±1% (7.332Abs at 260nm) |
|
| 4 Light Source | 0.02mm 0.05mm 0.2mm 1.0mm | Spectral resolution | <1nm | |
| Photometric accuracy | ±0.005A or ±1% | |||
| Detectors | HAMAMATSU UV Enhanced CMOS Line Array Sensing | Wavelength accuracy | ±1nm within | |
| Nucleic acid/ protein assay range | 0-27,500 ng/µl dsDNA
0.06-820 mg/mL BSA |
Wavelength Reproducibility | <±0.2nm | |
| Sample wavelength scanning | 190-850nm | |||
| Fluorescence sensitivity | DsDNA: 0.5pg/ul | Base measurement only | 0.5~2ul | |
| Fluorescence linearity | ≤1.5% | Sample base material | Quartz fiber and stainless steel | |
| Wavelength range | (190nm-850nm) | Testing time | <5S | |
| Sample volume requirements | 0.5-2ul | Power consumption at standby | 5W | |
| OD600 absorbance range | 0-6.000Abs | Data output method | USB | |
| OD600Absorbance stability | [0,3)≤0.5%,[3,4)<2% | Light source | Xenon flashing light | |
| OD600Absorbance accuracy | [0,2)≤0.005A,[2,3)≤1%,[3,4)≤2% | Power adapter | 24V DC | |
| Od600 Repeatability of absorbance |
[0,3)≤0.5%, [3,4)<2% |
Power consumption |
25W |
|
| Absorbance range | 0.02-300A (Equivalent to 10mm) | Dimension | W200mm×D260mm×H165mm | |
| Absorbance | 0.002Abs (0.2mm optical range) | Weight | 5Kg | |
TECHNICAL PARAMETERS
Volume [L]: 220
Temp. Range [°C]: +5 to 60
Temp. Resolution [°C]: 0.1
Temp. Fluctuation at 37°C [°C]: ±0.5
Temp. Uniformity at 37°C [°C]: ±1
Rotation Rate [rpm]: 1~300
Rotation Accuracy [rpm]: ±1
Vibration Amplitude [mm]: Ø25
Timer Range [h]: 0~999
Number of Trays [pc]: 1 included ( 2 optional)
Power Supply [V, Hz]: 220, 50/60
Internal Dimensions W×D×H [mm]: 600x600x600
Housing Dimensions W×D×H [mm]: 755×870×1310
Tray Size W×D [mm]: 595x595mm
Standard Configuration [pcxml]: 16×250/500 or 9×1000 ml or 4×2000 ml
Net Weight [kg]: 220
SPECIFICATIONS:
| Model No. | DR-800D |
| Center Max. Temp. | 825°C |
| Low Level Temp. | 480°C |
| Heating Speed | 20min (to max. temp.) |
| Max. Sterilize Diameter | Φ35mm |
| Heating Element Length | 100mm |
| Adjustable Angle | 75°~120° |
| Voltage | AC 220V / AC 110V, 50/60Hz |
| Power | 400W |
| Fuse | 250V, 3A/5A, Ф5×20 |
| Dimension (WxDxH) | 92 x 101 x 170mm |
| Net Weight | 1.1kg |
| Temperature range | 5°C to 60°C |
| Temperature controller | Digital PID controller |
| Temperature accuracy | ±1% |
| Temperature sensor | PT-100 |
| Humidity range | 50% to 90% RH |
| Humidity controller | Digital PID controller |
| Humidity accuracy | ±3% |
| Light | 150-170 micromole/m2/sec |
| Light timer | 24×7 weekly digital timer |
| Construction | Double walled |
| Exterior | Mild steel powder coated |
| Interior | Stainless steel 304 |
| Outer door | Single or double solid doors with lock & key |
| Inner door | Glass door to view samples |
| Shelves | 3 to 12 (Height adjustable) |
| Safety | Audio / visual alarm for temperature deviation |
| Optional | Exterior made of stainless steel 304 / 316 PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels |
| Power supply | 220 Volts / 50 Hz |
 SIZE:
| Model | Dimensions (mm) | Volume (Litres) | Volume (Cu. Ft.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DR-SGC171 | 505 x 415 x 830 | 171 | 6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC209 | 600 x 550 x 910 | 300 | 10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
STANDARD SIZE:
DR-SGC340 |
650 x 580 x 900 | 340 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC400 | 700 x 640 x 900 | 400 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC580 | 775 x 775 x 970 | 580 | 20 |
| Chamber design | Round and Rectangular |
|---|---|
| Vacuum range | Up to -760 mmHg |
| Temperature range | Ambient+5°C to 150°C (Optional 200ºC) |
| Temperature sensor | PT100 |
| Temperature controller | Digital PID controller Display of SV & PV |
| Inner chamber | Hermetically welded stainless steel 304 sheet |
| External cabinet | Powder coated GI sheet |
| Door | Solid door with clamp & toughened glass window |
| Gasket | High temperature silicon gasket |
| Shelves | Removable SS shelves |
| Vacuum fittings | Vacuum valve / exhaust valves (Rubber hose) |
| Standard fittings | Mains on/off switch Vacuum pump on/off switch Electric socket for vacuum pump |
| Power supply | 220 Volts 50Hz |
| Optional | KF25 flange vacuum connection 21 CFR compliance software Temperature up to 250°C All SS 304 construction (GMP) Digital vacuum control through solenoid valves PLC + HMI controller with USB interface Diaphragm valves for inert gas Timer 99 hours 59 min Oil-free vacuum pump |
