₹143,570.78 Original price was: ₹143,570.78.₹121,670.00Current price is: ₹121,670.00.

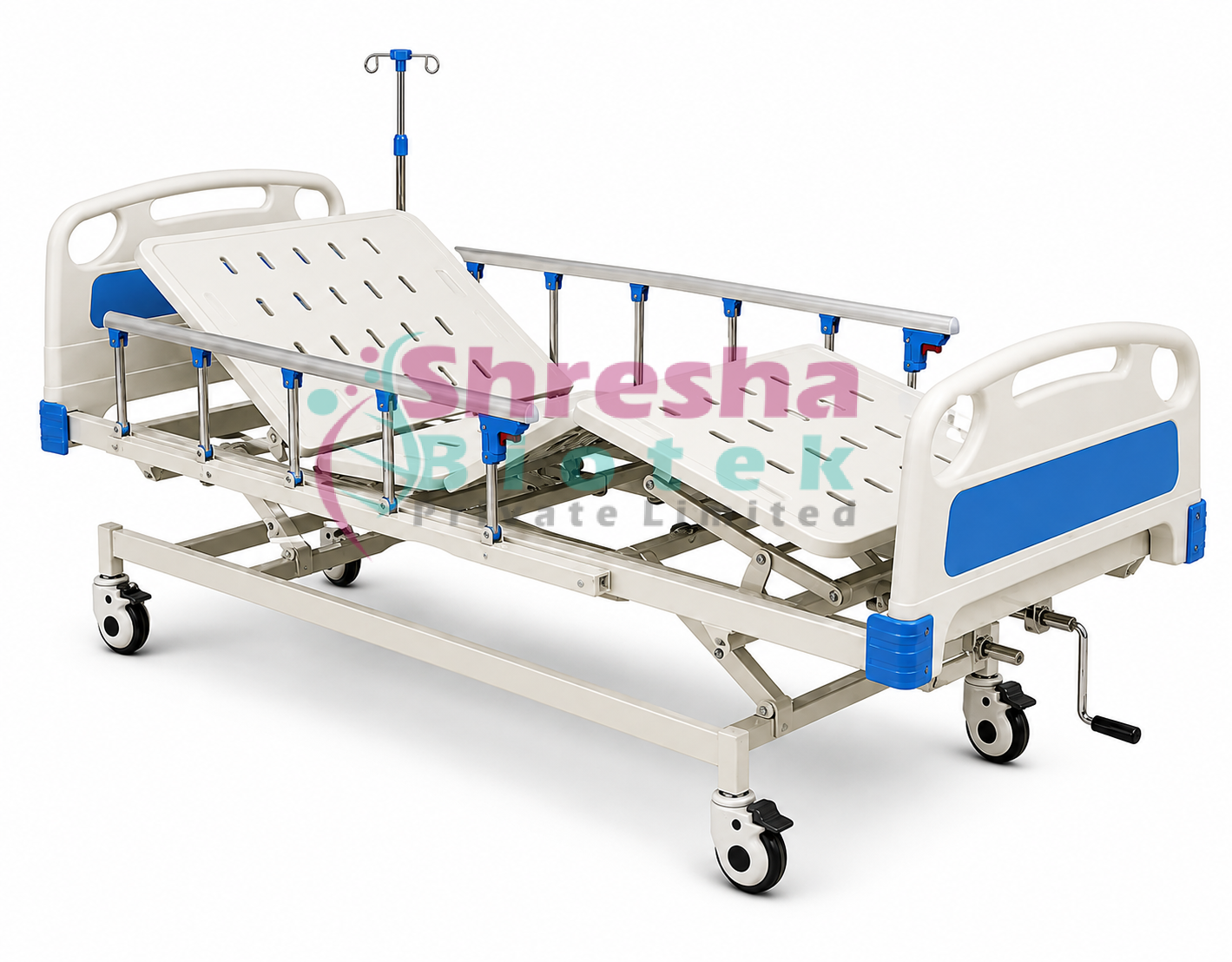

Type: Cardiac Bed
Bed Size: 1980 mm (L) × 900 mm (W) × 600 mm (H)
Safe Load Capacity: 180–220 kg
ackrest elevation (0°–75° approx.)
Knee rest elevation (0°–40° approx.)
Cardiac chair position (for comfortable sitting posture)
Trendelenburg / Reverse Trendelenburg (optional – model dependent) Made of Mild Steel (MS) rectangular tubes
Epoxy powder-coated finish (anti-rust & antibacterial)
Strong welded structure for long-term durability
4-section perforated CRCA sheet / ABS panels
Designed for ventilation and patient comfort
ABS molded panels, detachable
Locking system for easy removal
Height Adjustment Range (Hi-Lo): 450 mm – 750 mm
Backrest Angle: 0° – 75° (manual crank)
Knee Rest Angle: 0° – 35° (manual crank)
Trendelenburg: 0° – 12° (manual)
Reverse Trendelenburg: 0° – 12° (manual)
Platform Sections: 4-section perforated MS platform
Frame Material: CRCA steel with epoxy powder coating
Head & Foot Panels: ABS, detachable
Side Rails: Collapsible, aluminum or ABS
Crank System: 3 separate crank handles (backrest, knee rest, Hi-Lo)
Safe Working Load: 200 – 250 kg
Overall Dimensions: 2200 mm (L) × 1000 mm (W)
Height Adjustment Range: 450 mm – 750 mm
Backrest Angle: 0° – 75°
Knee Rest Angle: 0° – 35°
Trendelenburg Angle: 0° – 12°
Reverse Trendelenburg Angle: 0° – 12°
Lateral Tilt (Left/Right): ±12°
Frame Material: CRCA steel with epoxy powder coating
Platform Sections: Four-section, ventilated design
Head & Foot Boards: ABS, detachable with locking system
Side Rails: Collapsible aluminum or ABS
Castors: 125 mm diameter, 4 with brakes
Control System: Wired remote with individual function buttons
Power Supply: 220V AC, 50Hz
Battery Backup: 1–2 hours operation
Safe Working Load: 250 kg
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube system
Bulb Type: Rubber inflation bulb with chrome-plated release valve
Valve Type: Precision screw-type air control
Mercury Column: Glass tube with metal scale backing
Stand Type: Height-adjustable pole with 5-leg wheeled base
Tubing: Extendable tubing
Unit Height: Adjustable from 900 mm to 1300 mm
Weight: 4.5 – 6 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Light Source: LED or Halogen
Color Temperature: Approx. 5500K – 6500K (cool white)
Illumination Intensity: Up to 40,000–100,000 lux
Weight: Typically under 400 grams
Operating Time: Depends on intensity setting
Spot Size: Adjustable
Material: High-grade plastic and metal components
Power Supply: AC adapter or battery pack
Usage Duration of Light Source: Up to 50,000 hours
