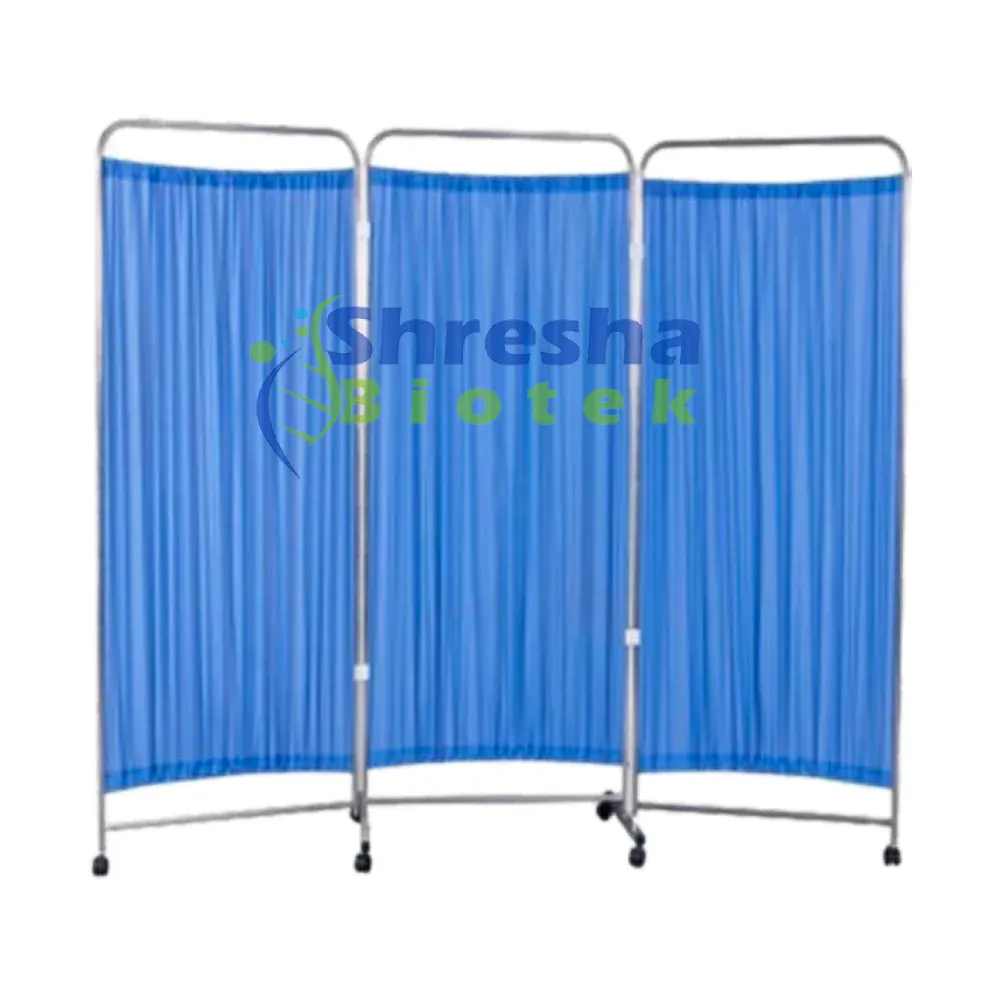

Privacy screen for patient areas in wards, ICUs, and clinics
Three-fold or four-fold panel design for adjustable coverage
Mild steel tubular frame with epoxy powder-coated finish for durability and corrosion resistance
Each panel fitted with fabric or washable curtain for privacy
Swivel castors on each leg for smooth movement and stability
Foldable design for easy storage when not in use
Easy to clean and disinfect, ideal for clinical environments
Overall Dimensions:
– Each panel approx. 610 mm (W) × 1650 mm (H)
– Total width when fully extended: approx. 1830 mm
Frame Material:Â steel, epoxy powder coated
Curtain Material: Washable fabric or synthetic, flame-retardant
Panel Type: 3 or 4-fold (hinged)
Castors: 50 mm swivel type, anti-static (1 per leg)
Finish: Epoxy powder coated
Foldable: Yes, accordion-style for compact storage
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube system
Bulb Type: Rubber inflation bulb with chrome-plated release valve
Valve Type: Precision screw-type air control
Mercury Column: Glass tube with metal scale backing
Stand Type: Height-adjustable pole with 5-leg wheeled base
Tubing: Extendable tubing
Unit Height: Adjustable from 900 mm to 1300 mm
Weight: 4.5 – 6 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Measurement Parameters:
– SpO₂ (Oxygen Saturation): 0% – 100%
– Pulse Rate: 30 – 250 bpm
SpO₂ Accuracy: ±2% (for 70% – 100% range)
Pulse Rate Accuracy: ±2 bpm or ±2%
Display Type: Large LED or TFT screen
Waveform Display: Plethysmograph (real-time pulse waveform)
Alarm Functions: Adjustable thresholds for SpOâ‚‚ and PR, with sound and visual indicators
Power Supply:
– AC mains (100 – 240V, 50/60 Hz)
– Built-in rechargeable battery
Battery Backup: 4 – 8 hours of operation
Data Storage: Up to 72 hours or more
Connectivity: USB / RS232 / LAN
Weight: ~1.5 – 3 kg
Operating Environment:
– Temperature: 5°C – 40°C
– Humidity: ≤85% non-condensing
Technical Specifications
