Features:

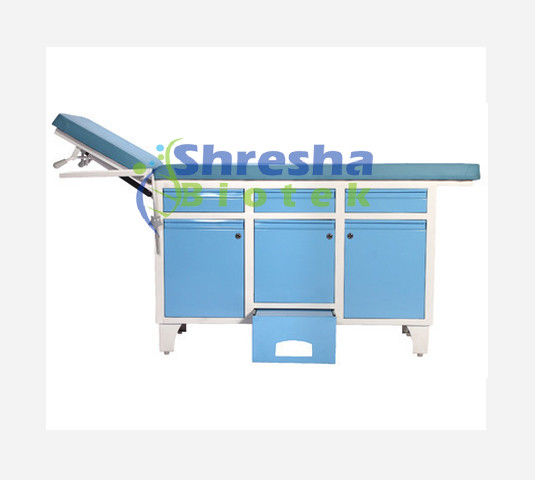

Examination table integrated with storage cabinet and drawers for space efficiency
Padded top section with high-density foam and easy-to-clean synthetic cover
Backrest manually adjustable for patient positioning
Built-in drawers and cabinet beneath the table for storing medical instruments and supplies
Strong and stable construction with smooth, rounded edges for safety
Easy access to storage from either side (in select models)
Suitable for general examinations in clinics, hospitals, and diagnostic centers
Available with both anti-skid rubber shoes and smooth-rolling castors with brakes for mobility and stability
Specifications:
Frame material: Mild steel or stainless steel with epoxy powder coating
Upholstery: Water-resistant, stain-resistant synthetic leather or rexine
Overall dimensions: Approx. 1800 x 600 x 800 mm
Mattress: 50–75 mm thick foam padding
Backrest adjustment: Up to approx. 70°, manually operated
Storage: 2–3 drawers and 1–2 cabinet sections, depending on model
Base: Fitted with anti-skid rubber shoes and/or lockable castors
Load capacity: Up to 150–180 kg
Finish: Epoxy powder coated or polished stainless steel
Weight: Approx. 60–85 kg
Measurement Method: Manual (Aneroid, Auscultatory)
Measurement Range: 0 – 300 mmHg
Accuracy: ±3 mmHg
Cuff Size Range: 22 – 42 cm
Dial Diameter: 50 mm
Manometer Type: Aneroid with 2 mmHg graduation
Bladder Material: Latex or PVC, 2-tube design
Bulb: Rubber inflation bulb with chrome-plated valve
Valve Type: Screw-type precision air release
Stethoscope: Optional, single-head compatible
Weight: 500 g
Operating Temperature: 5°C – 40°C
Storage Temperature: -10°C – 50°C
Measurement Method: Oscillometric
Measurement Range:
– Systolic: 60 – 260 mmHg
– Diastolic: 40 – 199 mmHg
– Pulse Rate: 40 – 180 bpm
Measurement Accuracy:
– Pressure: ±3 mmHg
– Pulse: ±5%
Display Type: LCD/LED digital screen
Memory Capacity: 60 – 120 readings per user
Power Supply:Â batteries or AC adapter
Cuff Size: 22 – 42 cm
Auto Power Off: After 1 minute of inactivity
Weight: 300 – 400 g
Operating Temperature: 5°C – 40°C
Humidity Range: 15% – 85% RH non-condensing
Measurement Parameters:
– SpO₂ (Oxygen Saturation): 0% – 100%
– Pulse Rate: 30 – 250 bpm
SpO₂ Accuracy: ±2% (for 70% – 100% range)
Pulse Rate Accuracy: ±2 bpm or ±2%
Display Type: Large LED or TFT screen
Waveform Display: Plethysmograph (real-time pulse waveform)
Alarm Functions: Adjustable thresholds for SpOâ‚‚ and PR, with sound and visual indicators
Power Supply:
– AC mains (100 – 240V, 50/60 Hz)
– Built-in rechargeable battery
Battery Backup: 4 – 8 hours of operation
Data Storage: Up to 72 hours or more
Connectivity: USB / RS232 / LAN
Weight: ~1.5 – 3 kg
Operating Environment:
– Temperature: 5°C – 40°C
– Humidity: ≤85% non-condensing
Measurement Parameters: SpOâ‚‚ (Oxygen Saturation) & Pulse Rate
SpO₂ Measurement Range: 70% – 100%
Pulse Rate Range: 30 – 250 bpm
Accuracy (SpO₂): ±2%
Accuracy (Pulse Rate): ±2 bpm or ±2%
Display Type: OLED or LED
Power Supply: 2 × AAA batteries
Battery Life: ~20 – 30 hours of continuous use
Weight: Approx. 50 – 60 grams
Operating Temperature: 5°C – 40°C (41°F – 104°F)
Storage Temperature: -10°C – 50°C
