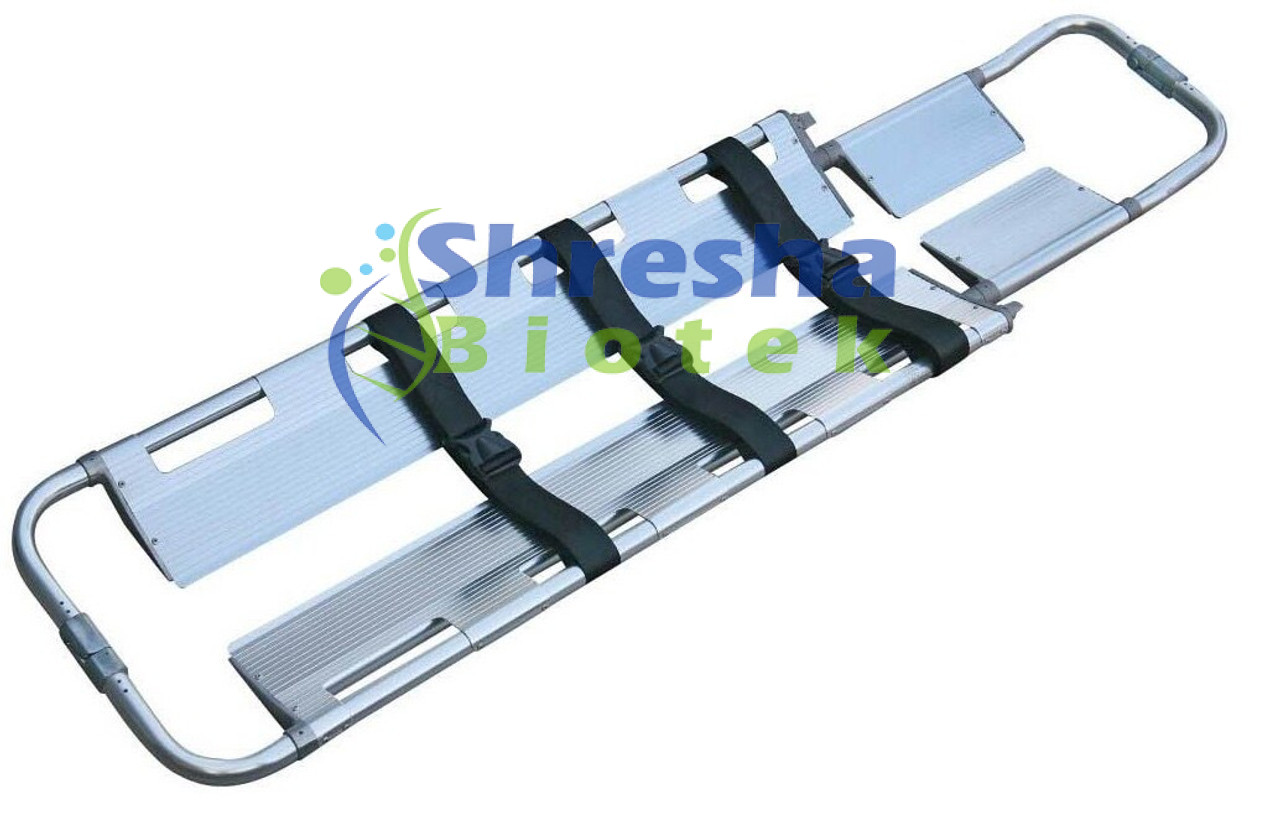

Separates into two longitudinal halves to scoop the patient without rolling or lifting
Designed to minimize spinal movement during patient transfer
Ideal for trauma care, spinal injuries, and accident scenes
Lightweight yet strong aluminum or polymer construction
Length adjustable to accommodate different patient sizes
Integrated locking system for secure assembly
Smooth surface for easy cleaning and disinfecting
Compatible with most ambulance and immobilization systems
Optional patient restraint straps for added safety
Material: Aluminum alloy or high-strength polymer (X-ray translucent options available)
Weight Capacity: 150 – 180 kg
Net Weight: Approx. 7 – 9 kg
Locking Mechanism: Snap or twist-lock at head and foot ends
Handles: Integrated or extended grip handles on both halves
Finish: Anodized or powder-coated, corrosion-resistant
Accessories (Included/Optional): Safety belts or restraint straps
Height Adjustment Range (Hi-Lo): 450 mm – 750 mm
Backrest Angle: 0° – 75° (manual crank)
Knee Rest Angle: 0° – 35° (manual crank)
Trendelenburg: 0° – 12° (manual)
Reverse Trendelenburg: 0° – 12° (manual)
Platform Sections: 4-section perforated MS platform
Frame Material: CRCA steel with epoxy powder coating
Head & Foot Panels: ABS, detachable
Side Rails: Collapsible, aluminum or ABS
Crank System: 3 separate crank handles (backrest, knee rest, Hi-Lo)
Safe Working Load: 200 – 250 kg
Measurement Parameters:
– SpO₂ (Oxygen Saturation): 0% – 100%
– Pulse Rate: 30 – 250 bpm
SpO₂ Accuracy: ±2% (for 70% – 100% range)
Pulse Rate Accuracy: ±2 bpm or ±2%
Display Type: Large LED or TFT screen
Waveform Display: Plethysmograph (real-time pulse waveform)
Alarm Functions: Adjustable thresholds for SpOâ‚‚ and PR, with sound and visual indicators
Power Supply:
– AC mains (100 – 240V, 50/60 Hz)
– Built-in rechargeable battery
Battery Backup: 4 – 8 hours of operation
Data Storage: Up to 72 hours or more
Connectivity: USB / RS232 / LAN
Weight: ~1.5 – 3 kg
Operating Environment:
– Temperature: 5°C – 40°C
– Humidity: ≤85% non-condensing
Technical Specifications
