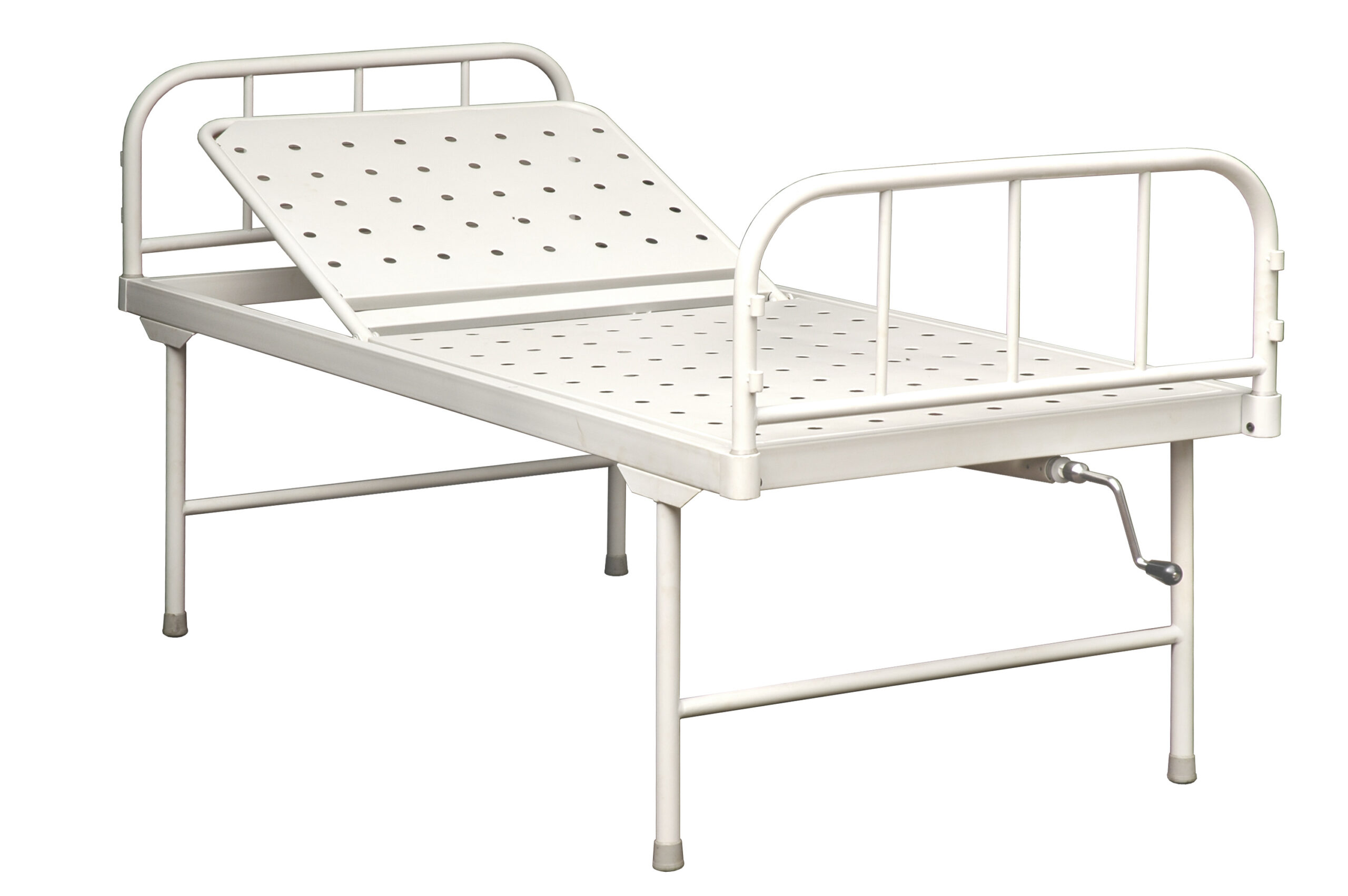

Manual single-function bed with backrest elevation
Mild steel head and foot panels, fixed or detachable
Two-section perforated steel mattress platform for ventilation
Manual crank mechanism for backrest adjustment
Sturdy steel frame with epoxy powder-coated finish
Optional side rails for patient safety
Mounted on castors for ease of movement, with braking on two wheels
Provision for IV pole and urine bag holders
Ideal for general wards and basic patient care
Platform Type: Two-section perforated steel
Frame Material:Â steel with epoxy powder coating
Head & Foot Panels: Mild steel, fixed or detachable
Side Rails: Optional
Castors: 100–125 mm diameter, 2 with brakes
Crank Mechanism: Single manual crank with foldable handle
Safe Working Load: 180 – 200 kg
Finish: Epoxy powder coated, corrosion-resistant
Included Accessories: IV pole socket, drainage/urine bag hooks
Measurement Method: Oscillometric manual inflation
Measurement Range:
– Systolic: 60 – 260 mmHg
– Diastolic: 40 – 199 mmHg
– Pulse Rate: 40 – 180 bpm
Accuracy:
– Pressure: ±3 mmHg
– Pulse: ±5%
Display Type: Large LCD with backlight
Cuff Size: 22 – 42 cm
Auto Power Off: After 1 minute of inactivity
Operating Temperature: 5°C – 40°C
Humidity Range: 15% – 85% RH non-condensing
Measurement Parameters:
– SpO₂ (Oxygen Saturation): 0% – 100%
– Pulse Rate: 30 – 250 bpm
SpO₂ Accuracy: ±2% (for 70% – 100% range)
Pulse Rate Accuracy: ±2 bpm or ±2%
Display Type: Large LED or TFT screen
Waveform Display: Plethysmograph (real-time pulse waveform)
Alarm Functions: Adjustable thresholds for SpOâ‚‚ and PR, with sound and visual indicators
Power Supply:
– AC mains (100 – 240V, 50/60 Hz)
– Built-in rechargeable battery
Battery Backup: 4 – 8 hours of operation
Data Storage: Up to 72 hours or more
Connectivity: USB / RS232 / LAN
Weight: ~1.5 – 3 kg
Operating Environment:
– Temperature: 5°C – 40°C
– Humidity: ≤85% non-condensing
Technical Specifications
Light Source: LED or Halogen
Power: AA batteries or rechargeable handle
Magnification: Otoscope – 3x; Ophthalmoscope – adjustable lens wheel
Lens Range: ±20 diopters
Case: Compact and protective with foam interior
