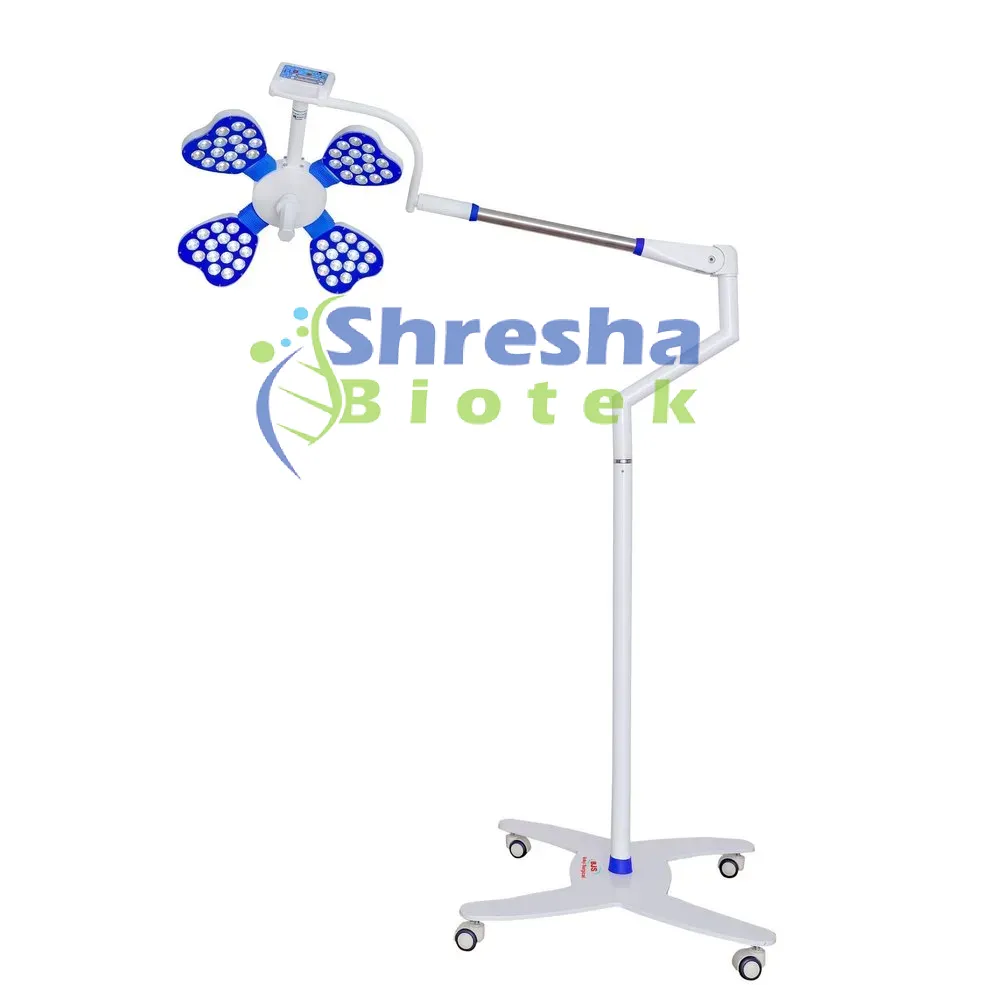

FEATURES
| Dome Head | One (4 Fins) |
| Halogen Bulbs/No. of LEDS | 84 Nos. (21 in each) |
| Illumination Intensity at 1m | 130000 ± 10% Lux |
| Color Temperature | 4000 – 5000k |
| Control Unit | Touch and Remote |
| Battery Backup (optional) | Optional |
| Size of light Field | 12-30 cm |
| LED life | >50000 HRS |
| Diameter of light | 500mm |
| Focusing | Adjustable |
| Power Supply | 200V/50Hz AC |
Height Adjustment Range (Hi-Lo): 450 mm – 750 mm
Backrest Angle: 0° – 75° (manual crank)
Knee Rest Angle: 0° – 35° (manual crank)
Trendelenburg: 0° – 12° (manual)
Reverse Trendelenburg: 0° – 12° (manual)
Platform Sections: 4-section perforated MS platform
Frame Material: CRCA steel with epoxy powder coating
Head & Foot Panels: ABS, detachable
Side Rails: Collapsible, aluminum or ABS
Crank System: 3 separate crank handles (backrest, knee rest, Hi-Lo)
Safe Working Load: 200 – 250 kg
Overall Dimensions: 2200 mm (L) × 1000 mm (W)
Height Adjustment Range: 450 mm – 750 mm
Backrest Angle: 0° – 75°
Knee Rest Angle: 0° – 35°
Trendelenburg Angle: 0° – 12°
Reverse Trendelenburg Angle: 0° – 12°
Lateral Tilt (Left/Right): ±12°
Frame Material: CRCA steel with epoxy powder coating
Platform Sections: Four-section, ventilated design
Head & Foot Boards: ABS, detachable with locking system
Side Rails: Collapsible aluminum or ABS
Castors: 125 mm diameter, 4 with brakes
Control System: Wired remote with individual function buttons
Power Supply: 220V AC, 50Hz
Battery Backup: 1–2 hours operation
Safe Working Load: 250 kg
Measurement Method: Manual
Measurement Range: 0 – 300 mmHg
Accuracy: ±2 mmHg
Graduation: 2 mmHg increments
Cuff Size: 22 – 42 cm
Bladder Material: Latex or PVC, 2-tube design
Bulb: Rubber inflation bulb with air-release valve
Valve Type: Chrome-plated screw-type
Mercury Column: Glass tube with metal scale backing
Base Material: Powder-coated metal or ABS plastic
Weight: 2.5 – 3 kg
Operating Temperature: 10°C – 40°C
Storage Temperature: -10°C – 50°C
Light Source: High-power LED
Color Temperature: ~5500K – 6500K (daylight white)
Illuminance: Up to 70,000 – 120,000 lux at 30 cm
Beam Focus: Manually adjustable, with consistent clarity at different sizes
Headlight Weight: Around 200 – 350 grams
Spot Size Range: Adjustable, typically 10 mm – 100 mm at working distance
LED Lifespan: Up to 50,000 hours
Material: Durable, medical-grade components
Power Supply: AC/DC adapter or battery pack
