Features

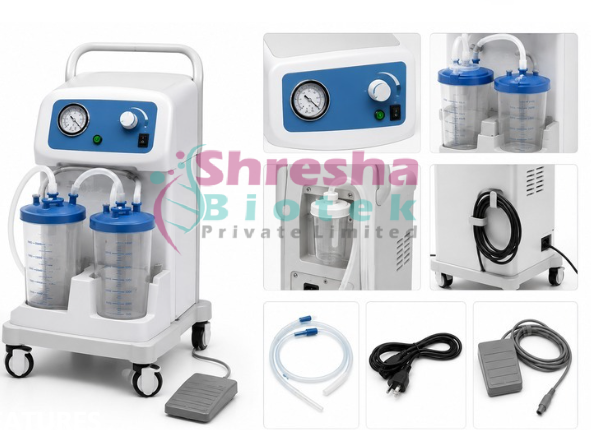

• Type: Heavy-Duty Electric Surgical Suction Machine
• Application: Major OT, General Surgery, Laparoscopy, Endoscopy, ICU, Emergency & Trauma
• Maximum Vacuum: Up to –720 mmHg ±10 mmHg
• Suction Flow: ≥60 L/min
• Pump: Heavy-duty oil-free twin-head piston vacuum pump
• Motor: 0.75–1 HP, thermally protected
• Collection Bottles: 2 × 5 L autoclavable polycarbonate bottles
• Total Collection Capacity: 10 L
• Bottle Changeover: Independent/changeover facility
• Overflow Protection: Dual-stage overflow protection with safety shut-off
• Water Trap: Dedicated safety water trap
• Bacterial Filter: Hydrophobic bacterial/viral filter
• Vacuum Control: Precision flutter-free vacuum regulator
• Vacuum Gauge: Large 0–760 mmHg panel-mounted gauge
• Operation: Continuous-duty operation
• Foot Control: Waterproof foot-operated ON/OFF and vacuum control
• Suction Tubing: Medical-grade, non-collapsible tubing
• Tubing Length: Minimum 2 m
• Noise Level: ≤55 dB(A)
• Mobility: Heavy-duty 4-castor trolley with minimum 2 locking brakes
• Body: Rust-proof epoxy powder-coated MS/ABS medical-grade housing
• Vibration: Low-vibration mounting system
• Power Supply: 220–240 V AC, 50 Hz, single phase
• Power Indicator: Yes
• Maintenance: Easy-access top/side panel for servicing
• Safety: Thermal overload protection and motor protection
• Accessories: Suction tubing set, spare bacterial filter, water trap and additional safety jar
• Compliance: Medical Device Rules (MDR) 2017 applicable requirements, with relevant manufacturer/product documentation
