| Sl. No. | Type of Modular OT | Model | Specification | Key Features | Description |
| 1 | General Surgery OT | DR-MOT-GS | Size: 400–500 sq. ft, Epoxy floor, SS wall panels, HEPA filters | Versatile setup, laminar airflow, basic surgical lights & pendants | For general procedures like hernia, appendectomy, and soft tissue surgeries |
| 2 | Orthopedic OT | DR-MOT-OP | Ortho table with traction, C-Arm compatible, anti-static flooring | X-ray translucent table, orthopedic attachments, laminar flow ceiling | Designed for bone/joint surgeries with image-guided equipment |
| 3 | Cardiac Surgery OT | DR-MOT-CS | ≥600 sq. ft, laminar flow, heart-lung machine, IBP monitors | Positive pressure, surgical pendants, HEPA filtration, temperature control | For open-heart and thoracic surgeries requiring high sterility and monitoring |
| 4 | Neurosurgery OT | DR-MOT-NS | MRI/CT-compatible, low-vibration floor, anti-microbial panels | Operating microscope, neuro-navigation system, low noise HVAC | For brain/spinal procedures requiring precision and stable environments |
| 5 | Gynecology & Obstetrics OT | DR-MOT-GO | Wall-integrated baby resuscitation unit, OT table with lithotomy attachment | Warmers, adjustable OT table, suction, fetal monitor | For C-sections, hysterectomies, and OB/GYN surgeries |
| 6 | ENT OT | DR-MOT-ENT | Compact size (350–450 sq. ft), ENT-specific chair/table, microscope | Endoscopy tower, microdebrider, camera system | For ear, nose, and throat surgeries with precision instruments |
| 7 | Urology OT | DR-MOT-UL | Cystoscopy-compatible, urology table with leg supports | Laser lithotripsy unit, endoscopic camera system | For kidney, bladder, and prostate surgeries using minimal access techniques |
| 8 | Laparoscopic OT | DR-MOT-LS | Full HD laparoscopy tower, insufflator, COâ‚‚ setup | Ceiling-mounted monitors, minimal access tools, gas management | For keyhole surgeries in abdomen/pelvis using video-assisted instruments |
| Type: Configuration | Model | Description | Typical Specifications | Key Features |
|---|---|---|---|---|
| Hermetically Sealed Sliding Door: Manual Single Leaf | DR H2SD MSL | Manually operated single-panel sliding door with hermetic seal for OTs and cleanrooms. | Size: 1200 x 2100 mm Leaf: Single Material: SS / HPL / Powder-coated GI Seal: Bottom + perimeter Opening: Manual push-pull |
– Smooth manual glide – Full hermetic sealing – Easy maintenance – Ideal for small OTs |
| Hermetically Sealed Sliding Door: Automatic Single-Leaf | DR H2SD ASL | Automated sliding door with sensor-based motion and full perimeter seal for infection control zones. | Drive: Microprocessor-controlled Size: 1200 x 2100 mm Opening Speed: 250–500 mm/sec Sensors: Infrared / microwave Power: 230V AC |
– Touchless operation – Hermetically sealed – Anti-crush safety – Silent motor |
| Hermetically Sealed Sliding Door: Automatic Double-Leaf | DR H2SD ADL | Wide-opening automatic dual-leaf sliding door for gurney and equipment movement. | Leaf Size: 2 x 1200 mm Total Opening: 2400 mm Material: SS304 / HPL Motor: Belt drive Sensors: Dual-zone presence sensor |
– Large clear opening – Double leaf automation – Medical-grade surface – Optional battery backup |
| Hermetically Sealed Sliding Door: Lead-Lined Radiation Proof | DR H2SD L2RF | Radiation-shielding sliding door for imaging/OT rooms with hermetic sealing. | Shielding: 2 mm Pb equivalence Leaf: SS/Lead/HPL composite Seal: 3-side hermetic Automation: Optional |
– X-ray/MRI compatible – Anti-radiation core – Smooth, quiet operation |
| Hermetically Sealed Sliding Door: Glass Panel with SS Frame | DR H2SD SPS | Transparent hermetic door with clear toughened glass for visibility between zones. | Glass: 10–12 mm toughened Frame: SS 304 Size: 1500 x 2100 mm Seal: Bottom drop seal Motor: Optional |
– Modern aesthetic – Visual access – Hermetic bottom seal – Cleanroom compliant |
| Hermetically Sealed Sliding Door: ICU/Isolation Room Bi-Parting | DR H2SD I2R2P | Bi-parting auto door system for ICU and isolation wards with negative pressure sealing. | Leaf Size: 2 x 1000 mm Motor: Low-noise linear motor Controls: Touchless switch Finish: Antibacterial HPL or SS |
– Suited for ICU/clean zones – Pressure integrity – Hands-free access |
| Hermetically Sealed Sliding Door: Fire Rated with Hermetic Seal | DR H2SD FRS | Sliding door certified for fire safety and hermetic sealing up to 60 minutes. | Fire Rating: EI60 Seal: Intumescent + hermetic Core: Rockwool + GI Automation: Available |
– Fire-resistant – Sealed for smoke/gas – Fire-rated glazing optional |
Access control (RFID, keypad, facial recognition)
Battery backup for motor
Touchless sensors and foot switches
Door status indicator lights (Red/Green)
Vision panels or X-ray safe glass
Cleanroom-rated antibacterial coatings
| Type (with Configuration) | Model | Description | Typical Specifications | Key Features |
|---|---|---|---|---|
| Central Oxygen Supply System: Manifold + Bulk Tank | DR HGPS COSS | Supplies medical-grade oxygen to all zones from LOX tank or high-pressure cylinders. | Pressure: 4.2–5.0 bar Source: LOX/D-type Cylinders Pipeline: Degreased Copper (EN 13348) Alarm: Digital panel |
– Auto changeover manifold – Fire-safe ball valves – Pressure relief system – Audible/visual alarms |
| Medical Air System: Duplex Oil-Free Compressor + Air Dryer + Receiver | DR HGPS MAS | Delivers clean compressed air for respiratory use and surgical tools. | Output: 4.5–5.5 bar Compressor: 100% Oil-Free Scroll Receiver: 500 Ltr Dew Point: -40°C |
– Redundant operation – Bacteria filter & dryer – Noise-insulated cabinet – Pressure sensors |
| Vacuum System: Central Suction Pump + Receiver + Filter | DR HGPS VS | Provides centralized suction for OT, ICU, and critical care units. | Vacuum: -600 to -650 mmHg Pumps: 2x Rotary Vane (3 HP each) Receiver: 300 Ltr Filtration: Bacterial trap |
– Automatic pump alternation – Non-lubricated design – Overflow & noise control |
| Nitrous Oxide Supply: Manifold Cylinder Bank System | DR HGPS N2OS | Used in anesthesia delivery systems across OTs. | Pressure: 4.5–5.0 bar Cylinders: 12 Bank Piping: Degreased copper Alarm: Low pressure |
– Automatic switching – Safety relief valve – Medical color-coding (blue) |

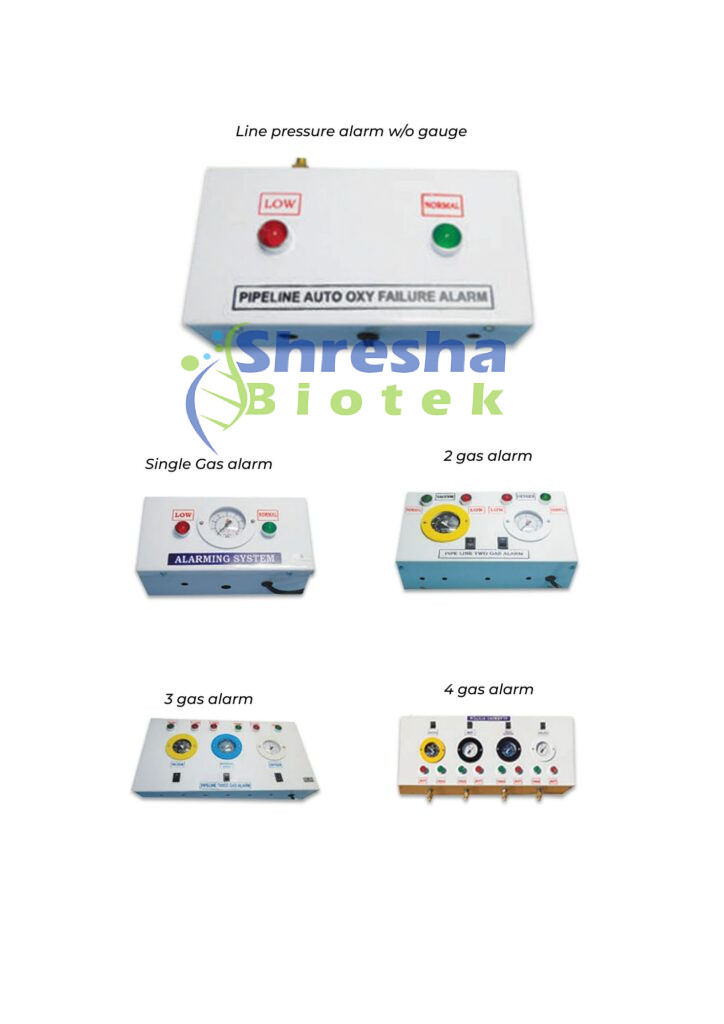

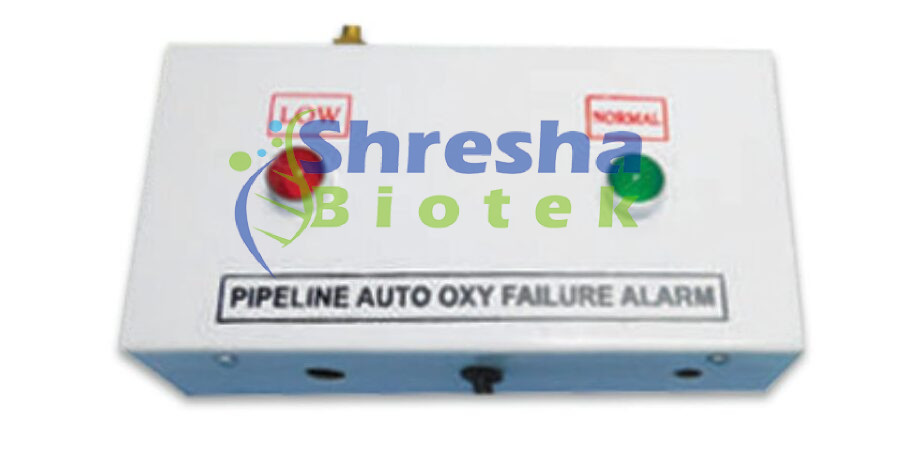

| Medical Gas Alarm System: Area + Master Panels | DR HGPS MGAS | Monitors pressure levels and triggers alerts in all gas zones. | Zones: 7 Display: LED Digital Power: 230V AC Mounting: Wall surface/recessed |
– Audible & visual alert – Optional BMS integration – Real-time pressure monitoring |
| Bed Head Panel: Horizontal 3-Gas + Nurse Call + Power | DR HGPS BHP | Multi-utility horizontal panel for patient headwalls. | Length: 1200 mm Outlets: O2, Air, Vacuum Electrical: 3 sockets + nurse call Material: Aluminum |
– Modular, low maintenance – Gas & power segregation – LED night light (optional) |
| OT Pendant System: Double Arm with Gas, Electrical & Shelves | DR HGPS OTPS | Ceiling-mounted system for OT with movable arms and console. | Arm Length: 600+600 mm Gas Outlets: 6–8 types Load: Up to 200kg Rotation: 330° |
– 2-arm design for flexibility – Integrated gas & power – ICU & surgical variants |
| Anesthesia Gas Scavenging System: Active Type | DR HGPS AG2S | Extracts waste anesthetic gases to protect medical staff. | Flow Rate: 100–150 L/min Pressure: -20 to -40 mbar Filters: Inline HEPA Compliance: HTM 2022 |
– Staff exposure reduction – Low noise – Central or local exhaust options |
| Zone Valve Box: 5 Line with Monitoring Window | DR HGPS ZVB5 | Isolates gas lines for specific zones during servicing or emergency. | Lines: 5 Valve Type: ¼-turn brass Box: Powder-coated steel Labeling: Laser-etched |
– Transparent window – Lockable design – Color-coded tubing |
| Copper Medical Gas Piping Network: Degreased, EN Certified | DR HGPS CUMSPN | Backbone piping system for MGPS distribution across hospital floors. | Size: 10 mm to 54 mm Material: Copper EN 13348 Joint: Silver brazed Test Pressure: 1.5x Working Pressure |
– Smooth internal bore – Corrosion-resistant – Suitable for oxygen & vacuum |
