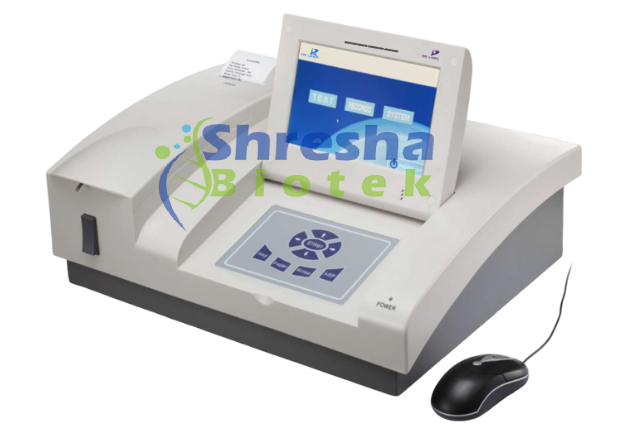

Compact bench-top design ideal for clinical laboratories, hospitals, and diagnostic centers
User-friendly interface with a color touch screen for easy navigation and setup
Supports multiple test modes including end-point, fixed-time, and kinetic methods
Real-time display of reaction curves enhances visual data interpretation
Suitable for both routine and emergency biochemical testing
Capable of analyzing various sample types including serum, plasma, urine, and CSF
Programmable memory for storing multiple test protocols
Integrated quality control management for performance monitoring
Quick operation with reduced manual handling, improving throughput and safety
Efficient reagent consumption and minimal sample volume required
Designed for low-maintenance use with self-check and calibration prompts
Suitable for both standard and customized reagent applications
Optional external devices (keyboard, printer) can be connected for flexible operation
Photometric system: Flow cell with quartz cuvette, 30 µL volume
Light source: Long-life halogen lamp
Wavelengths: 340nm, 405nm, 492nm, 505nm, 546nm, 578nm, 620nm, 670nm
Measurement methods: End-point, fixed-time, and kinetic
Temperature control: 37°C ± 0.1°C
Reading time: Adjustable depending on test protocol
Sample volume: Typically 2–20 µL depending on method
Display: High-resolution color LCD touch screen
Storage: Can store up to 200 test programs and 1000 results
Printer: Built-in thermal printer for result printing
Interfaces: USB ports for keyboard/mouse/printer; RS232 for data transfer
Power supply: AC 100–240V, 50/60Hz
Operating environment: Temperature 10–30°C, humidity ≤85%
Dimensions and weight: Compact footprint suitable for lab benches
| Construction | Economy Model | Double Walled Model | Triple Walled Model |
|---|---|---|---|
| MOC Exterior | Painted MS sheet | SS 304 (mirror finish) | SS 304 (mirror finish) |
| No. of walls | Two | Two | Three |
| Lid | Polished MS | SS 304 | SS 304 |
| Interior | SS 304 with silicon gasket | ||
| Working Pressure | 15-30 psi | ||
| Working Temp. | 121°C to 134°C | ||
| Controller | Auto set to 15psi & 121°C | ||
| Pressure display | Analogue dial gauge | ||
| Timer | Mechanical timer | ||
| Programmable | Programmable automatic start timer | ||
| Hydraulic tested | Hydraulically Tested up to 40 psi (ASME Guideline) | ||
| Lick lock | Single hand easy lock system for operating and closing | ||
| Program for heating sterilization, exhaust, warming and completion. | |||
| Basket | Stainless steel basket | Stainless steel basket | Not Required |
| Power supply | 220 Volts 50Hz | ||
| Standard Fittings | Low water indicator; Automatic pressure switch; Pedal lifting device Steam release valve; Water outlet valve; Spring loaded safety valve Power cable with three pin tops | ||
| Optional Accessories |
|
||
| Model | DR-RCB-6 | DR-RCB-12 |
|---|---|---|
| Make | DR Labs | DR Labs |
| Temp. Control Range | -20°C ~ 100°C | -20°C ~ 100°C |
| Temp. Resolution | 0.01°C | 0.01°C |
| Temp. Accuracy | ±0.05°C | ±0.05°C |
| Temp. Control | Microprocessor PID | Microprocessor PID |
| Display | LCD | LCD |
| Refrigeration Model | Air cooled refrigeration through compressor | Air cooled refrigeration through compressor |
| Refrigerant | R134A | R134A |
| Pump Circulation | Internal & External | Internal & External |
| Temp. Sensor | PT-100 | Â PT-100 |
| Pump Flow Rate | 6L/min | 6L/min |
| Tank Capacity | 6L | 12 L |
| Tank Size | 250 x 200 x 150 mm | 300 x 250 x 200 mm |
| Bath Opening | 180 x 140 mm | 235 x 160 mm |
| Bath Depth | 150 mm | 200 mm |
| Power Supply | AC 220 V / 50 Hz | AC 220 V / 50 Hz |
| Dimensions | 320 x 370 x 655 mm | 320 x 370 x 765 mm |
| Packing Dimensions & Weight | 530 x 450 x 800 mm & 44 kgs | 530 x 450 x 900 mm & 50 kgs |
