₹1,039,500.00 Original price was: ₹1,039,500.00.₹945,000.00Current price is: ₹945,000.00.
Specifications:
Software – Free
|

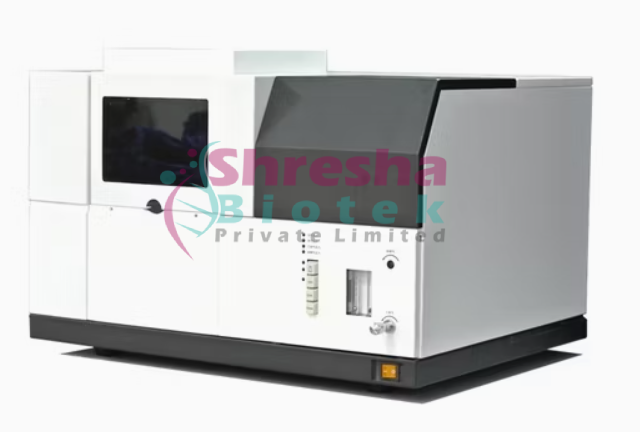

★ Wavelength Range 190-900 nm ★ Standard Lamp Cu, Fe, Mn, Zn ★ Bandwidth 0.1, 0.2, 0.4, 1nm (4 step Auto Switching) ★ Monochromator Aberration Corrected Czerny – Turner ★ Photometric Range 0-125%, 3.000 ABS ★ Gas Control Automatic Control & optimization(flow/pressure) ★ Burner Air Cooled Titanium ★ Nebulizer High efficient Nebulizer ★ Concentration Standard Curve, Standard Addition, Interpolation ★ Test Manner Flame, Flame Emission ★ Times of Repetitive Measurement 1-30 times, Average Value of A&C ★ Report Print Parameters, Date Result ★ Resolution Min 3 lines (279.5 & 279.8 Peak and Valley) ★ Working Temperature Range 10~30°C ★ Precision RDS =0.5% ★ Spray Chamber Anticorrosion Material ★ Characteristic Concentration (Cu) 0.025 µg/ml Max |
★ Dimension & Weight 700×420×550 mm; 103 kg (approx) ★ Three Stages of Quality Check before Dispatch ★ Online Installation/ Demonstration Provide Free of Cost ★ Demonstration / Installation Video CD are Provide at Free of Cost Extra Cost
|
1 YEAR WARRANTY
(GST Extra)
| Model no. | DR -80 |
|---|---|
| Volume | 450 L |
| Temperature | -40 TO -80℃ |
| Insulation thickness | 150mm |
| Cooling type | Direct cooling |
| Electric protection | I/B |
| Refrigerant | Mixed |
| Interior dimension | 552x635x1142mm |
| Consumption | 9.8kW. h/24h |
| Power | 1000W |
| Power Supply | 220V/50Hz |
| Climate class | N |
| Alarm type | Sound/ light |
| Exterior dimension | 855x965x1865mm |
| Package dimension | 960x1030x2030mm |
| Net weight | 205 kg |
| Gross weight | 255 kg |
| Optional function | Printer & recorder |
SPECIFICATIONS:
| Temperature range | -10° C to -40°C |
|---|---|
| Temperature accuracy | ±0.5°C |
| Temperature Uniformity | ±0.1°C |
| Temperature controller | Dual display PID controller |
| Temperature sensor | PT100 |
| Inner chamber | SS 304 |
| External cabinet | Powder coated GI sheet |
| Insulation | Glass wool |
| Door | Insulated door Mechanical latch / clamp |
| Heaters | Resistance wire heaters |
| Shelves | SS wire mesh (removable) |
| Standard fittings | Mains on/off switch Load Indicator Fan on/off switch |
| Power supply | 220 Volts 50Hz |
| Optional | GMP construction (Inner & outer SS304) PLC + HMI controller w/ USB interface 21 CFR Part 11software Data logger w/ USB interface Thermal printer Inner chamber LED light |
| NNER CHAMBER | SS 304 / 316/FRP COATING/PHENOLIC RESIN |
|---|---|
| EXTERIOR | Powder coated MS / Stainless Steel /GI |
| WORK TOP | SS 304 /Jet black granite |
| ILLUMINATION | Fluorescent tube light |
| BLOWER | Centrifugal exhaust blower (direct drive motor) |
| STANDARD FITTINGS | Water tap, sink with drainage system, electrical sockets and Canopy ventilation |
| OPTIONAL | FRP coating on inner walls Air foil Scrubber system Storage cabinet Caster wheels with brake Wet & dry service valves Certification (ASHRAE110- 1995 / EN-14175- 2003) Air Temperature indicator Flow Monitor IQ/OQ/PQ |
| Model | Dimensions | |
|---|---|---|
| DR-FH-222 | 2 x 2 x 2 ft | 610 x 610 x 610 mm |
| DR-FH-322 | 3 x 2 x 2 ft | 914 x 610 x 610 mm |
| DR-FH-422 | 4 x 2 x 2 ft | 1219 x 610 x 610 mm |
| DR-FH-522 | 5 x 2 x 2 ft | 1524 x 610 x 610 mm |
| DR-FH-622 | 6 x 2 x 2 ft | 1829 x 610 x 610 mm |
| ir flow direction | Vertical |
|---|---|
| Air cleanliness | Class 100 |
| Construction | SS / Powder coated MS / GI sheet/ wooden |
| Air flow direction | Vertical |
| Sash (front door) | Manual sliding type (Acrylic transparent) |
| Side panels | Acrylic / polycarbonate / SS |
| Air velocity | 0.45 m/s to 0.65 m/s |
| Illumination | Fluorescent or LED light |
| Noise level | 65 ±5 dB |
| Power supply | 220 volts / 50 Hz |
| Air filtration | Pre-Filter – 10 microns (washable) HEPA filter (0.3 Microns) |
| Standard fittings | Air / gas cock, Mains on/off switch, Light on/off switch UV Light on/off switch, Blower on/off switch |
| Optional | Motorized sliding door LCD display for velocity, time & lamp on/off UV Germicidal lamp UV Hour meter Magnehelic gauge Extra power outlet switch Foot rest Levelling legs for stand DOP HEPA filter testing |
