₹18,590.00 Original price was: ₹18,590.00.₹16,900.00Current price is: ₹16,900.00.

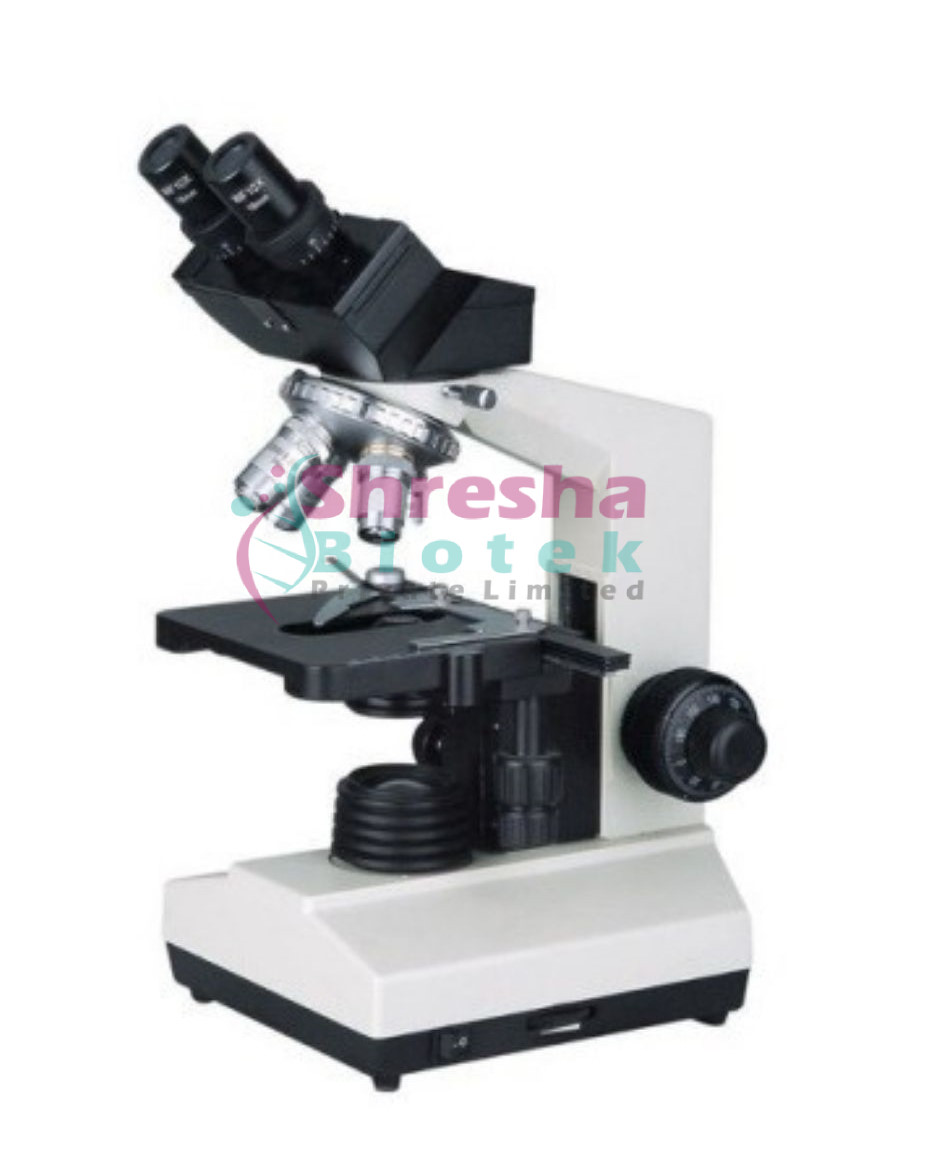

This microscope offers viewing delight to the user. The design offer stain free observation and no back ache while working for longer durations. It consists of heavy aluminum base with electrical fitting inside and an inclined metal stand. Packed in shock proof thermocole box outer thick wooden box with instruction manual and vinyl cover.
Magnification Head : 25X & 1000X
Head : Binocular head has adjustable inter papillary distance adjustment and diopter adjustment on the left tube.
Eye Piece : Paired Huygenian 5X & WF 10X
Achromatic Objective  : 5X & 10X & 40X & 100X Oil (SL, Par-Focal)
Nose Piece : Ball bearing type quadruple nose piece is provided for precise movement of objectives.
Focusing System : Separate knobs for coarse and fine motion are provided on the body & the slow motion is drum type.
Mechanical Stage : Large stage is fitted with a coxial-mechanical stage for easy manipulation of slide 45 inclined binocular head to the stand by means of clamping screws.
Illumination : Illumination by 6V-20W halogen lamp with on/off switch and intensity control knob. Abbe type condenser having glass of 1.25 Numerical aperture with iris diaphragm and swing out filter holder is provided.
| Category | DR-B2 |
|---|---|
| External Size (W*D*H) | 1383*775*2250 mm |
| Internal Size (W*D*H) | 1210*600*660 mm |
| Tested Opening | Safety height 10″ |
| Max Opening | 470 mm |
| Airflow Volume (Exhaust) | 100%: 1320 m³/h (776 cfm) |
| Front Window | Motorized;Two-layer laminated toughened glass ≤6mm, Anti-UV |
| Filter | ULPA,99.9995% efficiency at 0.12μm (02), filter life indicator |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49 ≤60 dB |
| Illumination | ≥1000 Lux |
| Socket | 2, Total consumption ≤500W |
| Display | Touch screen |
| Tap | Water tap*1, Gas tap*1 |
| Power Supply | AC220V,50/ 60Hz |
| Consumption | 400W |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
| Blower | One ECM motor, 230V AC; Speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steel Frame,Decorative Plate: cold-rolled steel with anti- bacteria powder coating |
| UV Lamp | 30W |
| Germicidal UV Lamp | Emission of 253.7 nanometers for most efficient decontamination |
| Certification | NSF 49 |
| Illuminating Lamp | LED lamp, 20W*2 |
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, Gas tap*1, Drain valve, Waterproof socket*2 |
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, exhaust duct |
| Package Size (W*D*H) | 1540*1080*1900 mm |
| Gross Weight | 340 kg |
| Item Name | CO2 Incubator | |||||
| Model No. | DR-CO2-80UV | DR-CO2-80 | DR-CO2-80+ | DR-CO2-180UV | DR-CO2-180 | DR-CO2-180+ |
| Sterilization | UV | 140°C | 180°C | UV | 140°C | 180°C |
| Volume | 80L | 80L | 80L | 180L | 180L | 180L |
| Microprocessor-based controller | Proprietary algorithm to control CO2 and temperature | |||||
| Display | LCD touch display | |||||
| Temp control range | Ambient +5°C- 60°C | |||||
| Temp stability | ±0.1°C | |||||
| Temp field uniformity | ±0.3°C (at 37°C ) | |||||
| Timer function | 0 – 999hr 59 min. | |||||
| CO2 measurement principle | Infrared (IR) detection | |||||
| CO2 control range | 0-20% | |||||
| CO2 display resolution | 0.10% | |||||
| CO2 supply | 0.05~0.1MPa is recommended | |||||
| Relative Humidity | Ambient humidity ~95% at 37°C | |||||
| HEPA filtration | HEPA filters at the gas inlet, ISO 5 level, 5 minutes | |||||
| Temperature recovery time | ≤10 min (open door 30sec room temperature 25°C set value 37°C) | |||||
| O2 concentration recovery time | ≤5 min (open the door 30sec set value 5%) | |||||
| MOC | The inner chamber is made up of stainless steel and outer chamber with MS with powder coating | |||||
| Light | Florescent light | |||||
| Historical data storage | 250,000 messages | |||||
| Data export interface | USB interface | |||||
| Scalability | Up to 2 units can be stacked. | |||||
| Working environment temperature | 18~30°C | |||||
| Power supply | 230V±10%, 50~60Hz | |||||
| Inner Dimensions (L x D x H) mm | 450x450x450 | 550x600x600 | ||||
| Outer Dimensions (L x D x H) mm | 650x650x750 | 750x800x850 | ||||
| Temperature range | 5°C to 60°C |
| Temperature controller | Digital PID controller |
| Temperature accuracy | ±1% |
| Temperature sensor | PT-100 |
| Humidity range | 50% to 90% RH |
| Humidity controller | Digital PID controller |
| Humidity accuracy | ±3% |
| Light | 150-170 micromole/m2/sec |
| Light timer | 24×7 weekly digital timer |
| Construction | Double walled |
| Exterior | Mild steel powder coated |
| Interior | Stainless steel 304 |
| Outer door | Single or double solid doors with lock & key |
| Inner door | Glass door to view samples |
| Shelves | 3 to 12 (Height adjustable) |
| Safety | Audio / visual alarm for temperature deviation |
| Optional | Exterior made of stainless steel 304 / 316 PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels |
| Power supply | 220 Volts / 50 Hz |
 SIZE:
| Model | Dimensions (mm) | Volume (Litres) | Volume (Cu. Ft.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DR-SGC171 | 505 x 415 x 830 | 171 | 6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC209 | 600 x 550 x 910 | 300 | 10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
STANDARD SIZE:
DR-SGC340 |
650 x 580 x 900 | 340 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC400 | 700 x 640 x 900 | 400 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC580 | 775 x 775 x 970 | 580 | 20 |
TECHNICAL PARAMETERS
Volume [L]: 220
Temp. Range [°C]: +5 to 60
Temp. Resolution [°C]: 0.1
Temp. Fluctuation at 37°C [°C]: ±0.5
Temp. Uniformity at 37°C [°C]: ±1
Rotation Rate [rpm]: 1~300
Rotation Accuracy [rpm]: ±1
Vibration Amplitude [mm]: Ø25
Timer Range [h]: 0~999
Number of Trays [pc]: 1 included ( 2 optional)
Power Supply [V, Hz]: 220, 50/60
Internal Dimensions W×D×H [mm]: 600x600x600
Housing Dimensions W×D×H [mm]: 755×870×1310
Tray Size W×D [mm]: 595x595mm
Standard Configuration [pcxml]: 16×250/500 or 9×1000 ml or 4×2000 ml
Net Weight [kg]: 220
