₹599,500.00 Original price was: ₹599,500.00.₹545,000.00Current price is: ₹545,000.00.
Technical Specification
Software – Free
|

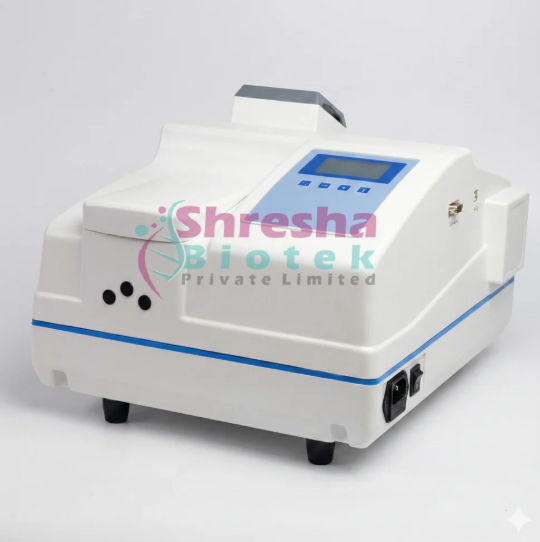

★ Excitation Light Source High Brightness LED ★ Emission Wavelength 200nm ~600nm (LED) ★ Excitation Wavelength- EX Wavelength Standard set: 365nm,376nm,392nm,405nm ★ Emission Monochromator C-T configuration diffraction grating monochromator Emission ★ S/N Ratio S/N≥90 (Using 1cm Quartz Sample Cell, Measure the ★ Detection Limit 1×10-10g / ml Quinine Sulfate Solution ★ Linearity (γ) ≥0.995 ★ Repetitive Peak Intensity ≤1.5% ★ Zero Drift ≤0.3(within 10min) ★ Upper Limit Change of |
★ Power Type AC~220V, 50Hz ★ Dimensions 442 x 392 x 250 (mm) ★ Weight Net Weight 10kg ★ Choice Of 3 Pin Power Cord / Dust Cover Supplied ★ Three Stages of Quality Check before Dispatch ★ Online Installation/ Demonstration Provide Free of Cost ★ Demonstration / Installation Video CD are Provide at |
Available On Order
1 YEAR WARRANTY
(GST Extra)
TECHNICAL PARAMETERS
Volume [L]: 220
Temp. Range [°C]: +5 to 60
Temp. Resolution [°C]: 0.1
Temp. Fluctuation at 37°C [°C]: ±0.5
Temp. Uniformity at 37°C [°C]: ±1
Rotation Rate [rpm]: 1~300
Rotation Accuracy [rpm]: ±1
Vibration Amplitude [mm]: Ø25
Timer Range [h]: 0~999
Number of Trays [pc]: 1 included ( 2 optional)
Power Supply [V, Hz]: 220, 50/60
Internal Dimensions W×D×H [mm]: 600x600x600
Housing Dimensions W×D×H [mm]: 755×870×1310
Tray Size W×D [mm]: 595x595mm
Standard Configuration [pcxml]: 16×250/500 or 9×1000 ml or 4×2000 ml
Net Weight [kg]: 220
| Temperature range | 5°C to 60°C |
| Temperature controller | Digital PID controller |
| Temperature accuracy | ±1% |
| Temperature sensor | PT-100 |
| Humidity range | 50% to 90% RH |
| Humidity controller | Digital PID controller |
| Humidity accuracy | ±3% |
| Light | 150-170 micromole/m2/sec |
| Light timer | 24×7 weekly digital timer |
| Construction | Double walled |
| Exterior | Mild steel powder coated |
| Interior | Stainless steel 304 |
| Outer door | Single or double solid doors with lock & key |
| Inner door | Glass door to view samples |
| Shelves | 3 to 12 (Height adjustable) |
| Safety | Audio / visual alarm for temperature deviation |
| Optional | Exterior made of stainless steel 304 / 316 PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels |
| Power supply | 220 Volts / 50 Hz |
SIZE:
| Model | Dimensions (mm) | Volume (Litres) | Volume (Cu. Ft.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DR-SGC171 | 505 x 415 x 830 | 171 | 6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC209 | 600 x 550 x 910 | 300 | 10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
STANDARD SIZE:
DR-SGC340 |
650 x 580 x 900 | 340 | 12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC400 | 700 x 640 x 900 | 400 | 14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DR-SGC580 | 775 x 775 x 970 | 580 | 20 |
| Category | DR-B2 |
|---|---|
| External Size (W*D*H) | 1383*775*2250 mm |
| Internal Size (W*D*H) | 1210*600*660 mm |
| Tested Opening | Safety height 10″ |
| Max Opening | 470 mm |
| Airflow Volume (Exhaust) | 100%: 1320 m³/h (776 cfm) |
| Front Window | Motorized;Two-layer laminated toughened glass ≤6mm, Anti-UV |
| Filter | ULPA,99.9995% efficiency at 0.12μm (02), filter life indicator |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49 ≤60 dB |
| Illumination | ≥1000 Lux |
| Socket | 2, Total consumption ≤500W |
| Display | Touch screen |
| Tap | Water tap*1, Gas tap*1 |
| Power Supply | AC220V,50/ 60Hz |
| Consumption | 400W |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
| Blower | One ECM motor, 230V AC; Speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steel Frame,Decorative Plate: cold-rolled steel with anti- bacteria powder coating |
| UV Lamp | 30W |
| Germicidal UV Lamp | Emission of 253.7 nanometers for most efficient decontamination |
| Certification | NSF 49 |
| Illuminating Lamp | LED lamp, 20W*2 |
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, Gas tap*1, Drain valve, Waterproof socket*2 |
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, exhaust duct |
| Package Size (W*D*H) | 1540*1080*1900 mm |
| Gross Weight | 340 kg |
