₹10,010.00 Original price was: ₹10,010.00.₹9,100.00Current price is: ₹9,100.00.

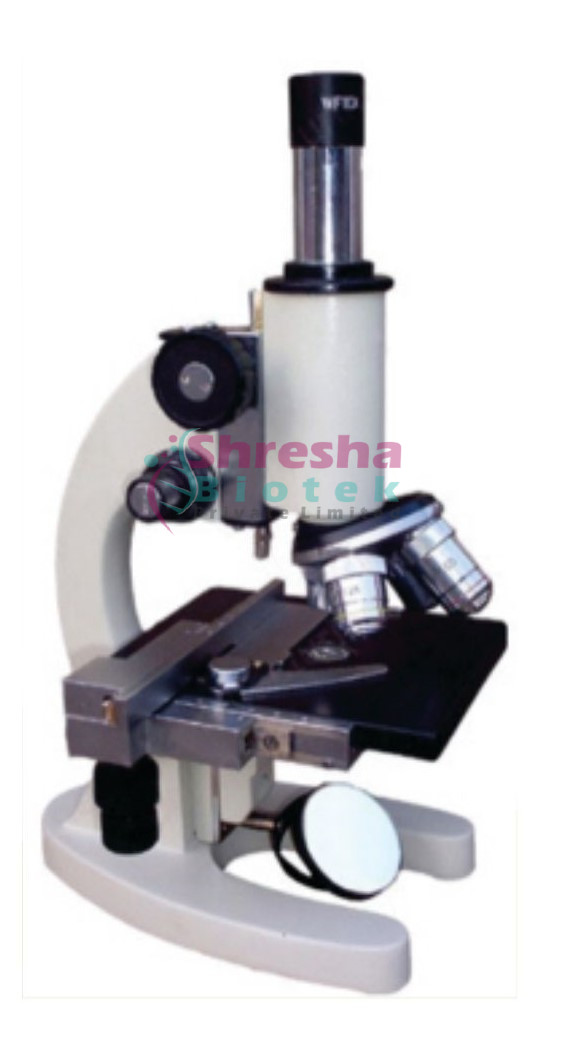

It has a u-shaped heavy cast iron base with 90 inclinable body, Packed in shock proof thermocle box and outer thick wooden box with instruction.
Magnification : 100X & 60X
Eye Piece : 10X & 15X
Automatic Objective : 10X & 40X (SL, Par-Focal)
Nose Piece : Revolving Triple Nose piece carries the objectives.Â
Focusing System on the body: Separate knobs for coarse and fine motion are provided
Mechanical Stage : 110x110mm with stage clips.
Illumination : Illumination is by plano concave reflector, a bright field abbe condenser with diaphragm can be focused up and down through a knob provided on the lower left side of the body. Illumination is by plano-concave reflector.
| Model no. | DR -80 |
|---|---|
| Volume | 450 L |
| Temperature | -40 TO -80℃ |
| Insulation thickness | 150mm |
| Cooling type | Direct cooling |
| Electric protection | I/B |
| Refrigerant | Mixed |
| Interior dimension | 552x635x1142mm |
| Consumption | 9.8kW. h/24h |
| Power | 1000W |
| Power Supply | 220V/50Hz |
| Climate class | N |
| Alarm type | Sound/ light |
| Exterior dimension | 855x965x1865mm |
| Package dimension | 960x1030x2030mm |
| Net weight | 205 kg |
| Gross weight | 255 kg |
| Optional function | Printer & recorder |
SPECIFICATIONS:
| Temperature range | -10° C to -40°C |
|---|---|
| Temperature accuracy | ±0.5°C |
| Temperature Uniformity | ±0.1°C |
| Temperature controller | Dual display PID controller |
| Temperature sensor | PT100 |
| Inner chamber | SS 304 |
| External cabinet | Powder coated GI sheet |
| Insulation | Glass wool |
| Door | Insulated door Mechanical latch / clamp |
| Heaters | Resistance wire heaters |
| Shelves | SS wire mesh (removable) |
| Standard fittings | Mains on/off switch Load Indicator Fan on/off switch |
| Power supply | 220 Volts 50Hz |
| Optional | GMP construction (Inner & outer SS304) PLC + HMI controller w/ USB interface 21 CFR Part 11software Data logger w/ USB interface Thermal printer Inner chamber LED light |
| Category | DR-B2 |
|---|---|
| External Size (W*D*H) | 1383*775*2250 mm |
| Internal Size (W*D*H) | 1210*600*660 mm |
| Tested Opening | Safety height 10″ |
| Max Opening | 470 mm |
| Airflow Volume (Exhaust) | 100%: 1320 m³/h (776 cfm) |
| Front Window | Motorized;Two-layer laminated toughened glass ≤6mm, Anti-UV |
| Filter | ULPA,99.9995% efficiency at 0.12μm (02), filter life indicator |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49 ≤60 dB |
| Illumination | ≥1000 Lux |
| Socket | 2, Total consumption ≤500W |
| Display | Touch screen |
| Tap | Water tap*1, Gas tap*1 |
| Power Supply | AC220V,50/ 60Hz |
| Consumption | 400W |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
| Blower | One ECM motor, 230V AC; Speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steel Frame,Decorative Plate: cold-rolled steel with anti- bacteria powder coating |
| UV Lamp | 30W |
| Germicidal UV Lamp | Emission of 253.7 nanometers for most efficient decontamination |
| Certification | NSF 49 |
| Illuminating Lamp | LED lamp, 20W*2 |
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, Gas tap*1, Drain valve, Waterproof socket*2 |
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, exhaust duct |
| Package Size (W*D*H) | 1540*1080*1900 mm |
| Gross Weight | 340 kg |
| Model | DR-RCB-6 | DR-RCB-12 |
|---|---|---|
| Make | DR Labs | DR Labs |
| Temp. Control Range | -20°C ~ 100°C | -20°C ~ 100°C |
| Temp. Resolution | 0.01°C | 0.01°C |
| Temp. Accuracy | ±0.05°C | ±0.05°C |
| Temp. Control | Microprocessor PID | Microprocessor PID |
| Display | LCD | LCD |
| Refrigeration Model | Air cooled refrigeration through compressor | Air cooled refrigeration through compressor |
| Refrigerant | R134A | R134A |
| Pump Circulation | Internal & External | Internal & External |
| Temp. Sensor | PT-100 | Â PT-100 |
| Pump Flow Rate | 6L/min | 6L/min |
| Tank Capacity | 6L | 12 L |
| Tank Size | 250 x 200 x 150 mm | 300 x 250 x 200 mm |
| Bath Opening | 180 x 140 mm | 235 x 160 mm |
| Bath Depth | 150 mm | 200 mm |
| Power Supply | AC 220 V / 50 Hz | AC 220 V / 50 Hz |
| Dimensions | 320 x 370 x 655 mm | 320 x 370 x 765 mm |
| Packing Dimensions & Weight | 530 x 450 x 800 mm & 44 kgs | 530 x 450 x 900 mm & 50 kgs |
