₹147,264.00 Original price was: ₹147,264.00.₹124,800.00Current price is: ₹124,800.00.
| Specification | Details |
|---|---|

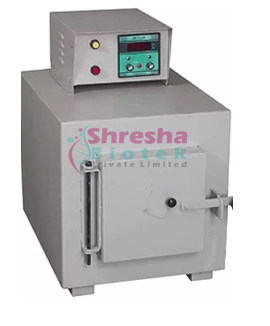

| Product Type | Rectangular Industrial Muffle Furnace |
| Maximum Temperature | 1200°C |
| Continuous Working Temperature | 1100°C |
| Chamber Size | 300 × 300 × 450 mm (approx.) |
| Chamber Capacity | Approx. 40 Litres |
| Heating Element | Kanthal A-1 / Fe-Cr-Al resistance elements |
| Chamber Lining | High-grade refractory / ceramic fibre insulation |
| Temperature Controller | Microprocessor-based PID Programmable Controller |
| Thermocouple | K-Type |
| Temperature Accuracy | ±1°C |
| Heating Rate | Adjustable, depending on load |
| Door | Front-opening insulated swing door |
| Body | Heavy-duty Mild Steel, powder-coated |
| Power Supply | 415 V AC, 50 Hz, 3 Phase |
| Power Rating | Approx. 10–12 kW |
| Safety | Over-temperature protection, MCB/contactor protection |
| Application | Annealing, calcination, heat treatment, sintering, ashing and industrial laboratory testing |
SPECIFICATIONS:
| Temperature Range | 5°C to 60°C |
| Temperature accuracy | ±1°C |
| Temperature controller |
|
| Humidity Range | 40% to 95% RH |
| Humidity accuracy | ±3% RH |
| Humidity controller |
|
| Chamber Illumination | Fluorescent white light |
| Construction | Double walled |
| Insulation | PUF insulation |
| Exterior | Powder coated GI sheet |
| Interior | Stainless steel 304 |
| Door | Solid insulated door with lock and key |
| Inner door | Glass door fitted in steel frame |
| Shelves / trays | 2 to 5 steel wire mesh trays (height adjustable) |
| Air Circulation | Axial fan / blower |
| Refrigeration | CFC Free compressor with condenser, motor and relay complete unit |
| Humidity system |
|
| Optional |
|
| Volume (Liters) | Inner Chamber size (mm) | Trays | |
| 200 Liters | 600 x 600 x 600 | 2 | |
| 324 Liters | 600 x 600 x 900 | 2 | |
| 450 Liters | 600 x 600 x 1250 | 3 | |
| 600 Liters | 600 x 800 x 1250 | 3 | |
| 800 Liters | 800 x 800 x 1250 | 4 | |
| 1000 Liters | 800 x 800 x 1570 | 4 |
| Shaker Speed (20 – 250 RPM) (350,400 & 500 OPTIONAL) | |
|---|---|
| Orbit Diameter | ø 25 mm |
| Accuracy | ± 2% of maximum speed |
| Temperature range | 5˚C above RT to 60˚C & with cooling 5°C-60°C (Customize temperature options available) |
| Resolution | 0.1°C |
| Temp. accuracy | ± 0.3˚C |
| Power supply | 230V ± 10%, 50Hz |
| Flasks | 12X12 | 16X16 | 18X18 | 24X24 |
| 50ml | 19 | 40 | 45 | 60 |
| 100ml | 12 | 16 | 18 | 24 |
| 250ml | 9 | 12 | 16 | 24 |
| 500ml | 4 | 6 | 8 | 10 |
| 1000ml | 2 | 3 | 3 | 5 |
| 2000ml | 1 | 2 | 2 | 4 |
| Category | DR-B2 |
|---|---|
| External Size (W*D*H) | 1383*775*2250 mm |
| Internal Size (W*D*H) | 1210*600*660 mm |
| Tested Opening | Safety height 10″ |
| Max Opening | 470 mm |
| Airflow Volume (Exhaust) | 100%: 1320 m³/h (776 cfm) |
| Front Window | Motorized;Two-layer laminated toughened glass ≤6mm, Anti-UV |
| Filter | ULPA,99.9995% efficiency at 0.12μm (02), filter life indicator |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49 ≤60 dB |
| Illumination | ≥1000 Lux |
| Socket | 2, Total consumption ≤500W |
| Display | Touch screen |
| Tap | Water tap*1, Gas tap*1 |
| Power Supply | AC220V,50/ 60Hz |
| Consumption | 400W |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height |
| Blower | One ECM motor, 230V AC; Speed adjustable, high efficiency and low power consumption |
| Material | Working area: 304 stainless steel Frame,Decorative Plate: cold-rolled steel with anti- bacteria powder coating |
| UV Lamp | 30W |
| Germicidal UV Lamp | Emission of 253.7 nanometers for most efficient decontamination |
| Certification | NSF 49 |
| Illuminating Lamp | LED lamp, 20W*2 |
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, Gas tap*1, Drain valve, Waterproof socket*2 |
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, exhaust duct |
| Package Size (W*D*H) | 1540*1080*1900 mm |
| Gross Weight | 340 kg |
