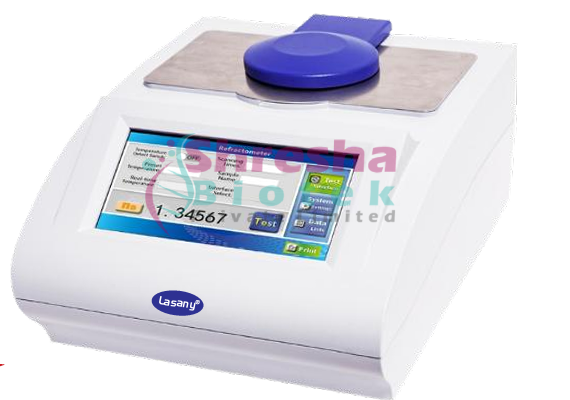

Automatic Digital ABBE Refractometer (Touch Screen) With Peltier System

Sale!

Automatic Digital ABBE Refractometer (Touch Screen) With Peltier System

Product Code: DR-R506

Categories: ANALYTICAL INSTRUMENTS, LABORATORY EQUIPMENTS

Original price was: ₹599,500.00.Current price is: ₹545,000.00.

Specifications

Measuring range	Refractive index (nD): 1.30000-1.70000 Brix : 0-100%
Measuring accuracy	Refractive index (nD): ±0.0002 Brix : ±0.1%
Resolution	Refractive index (nD): ±0.00001 Brix : ±0.01%
Temp. control mode	Peltier (Built-in)
Temp. display range	0-90°C
Temp. control range	10-60°C
Temp. control accuracy	±0.1°C
Prism	Hard glass
Data storage	1000 sets
Display	7 inch color touch screen
Interface	RS232, USB, U Disk
Power supply	220V, 50Hz, 50w
Package dimensions	500mm×330mm×220mm
Weight(Gross)	9kg

Characteristics

• Full automatic measuring, high resolution CCD detection system.

• Temperature correction function to avoid human error.

• Have the function of temperature display, automatic correction and saving the date.

• LED light source that lasts over 100000 hours.

• Multiple measuring methods: F42 fructose corn syrup, F55 fructose corn syrup concentration, Glucose concentration, Sucrose concentration, Solid content (juice vegetables, canned products, soft drinks), Honey water content, nD20 and user-defined formula.

• Temperature control, temperature automatic correction and saving the data

• Touch Screen.

1 YEAR WARRANTY | (GST Extra)

$Automatic Digital ABBE Refractometer (Touch Screen) With Peltier System$

Related products

-20°C DEEP FREEZER

-40°C DEEP FREEZER

SPECIFICATIONS:

Temperature range	-10° C to -40°C
Temperature accuracy	±0.5°C
Temperature Uniformity	±0.1°C
Temperature controller	Dual display PID controller
Temperature sensor	PT100
Inner chamber	SS 304
External cabinet	Powder coated GI sheet
Insulation	Glass wool
Door	Insulated door Mechanical latch / clamp
Heaters	Resistance wire heaters
Shelves	SS wire mesh (removable)
Standard fittings	Mains on/off switch Load Indicator Fan on/off switch
Power supply	220 Volts 50Hz
Optional	GMP construction (Inner & outer SS304) PLC + HMI controller w/ USB interface 21 CFR Part 11software Data logger w/ USB interface Thermal printer Inner chamber LED light

COOLING INCUBATOR SHAKER

TECHNICAL PARAMETERS

Volume [L]: 220

Temp. Range [°C]: +5 to 60

Temp. Resolution [°C]: 0.1

Temp. Fluctuation at 37°C [°C]: ±0.5

Temp. Uniformity at 37°C [°C]: ±1

Rotation Rate [rpm]: 1~300

Rotation Accuracy [rpm]: ±1

Vibration Amplitude [mm]: Ø25

Timer Range [h]: 0~999

Number of Trays [pc]: 1 included ( 2 optional)

Power Supply [V, Hz]: 220, 50/60

Internal Dimensions W×D×H [mm]: 600x600x600

Housing Dimensions W×D×H [mm]: 755×870×1310

Tray Size W×D [mm]: 595x595mm

Standard Configuration [pcxml]: 16×250/500 or 9×1000 ml or 4×2000 ml

Net Weight [kg]: 220

SEED GERMINATOR CHAMBER

Temperature range	5°C to 60°C
Temperature controller	Digital PID controller
Temperature accuracy	±1%
Temperature sensor	PT-100
Humidity range	50% to 90% RH
Humidity controller	Digital PID controller
Humidity accuracy	±3%
Light	150-170 micromole/m2/sec
Light timer	24×7 weekly digital timer
Construction	Double walled
Exterior	Mild steel powder coated
Interior	Stainless steel 304
Outer door	Single or double solid doors with lock & key
Inner door	Glass door to view samples
Shelves	3 to 12 (Height adjustable)
Safety	Audio / visual alarm for temperature deviation
Optional	Exterior made of stainless steel 304 / 316 PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels
Power supply	220 Volts / 50 Hz

SIZE:

Model

Dimensions (mm)

Volume (Litres)

Volume (Cu. Ft.)

DR-SGC171

505 x 415 x 830

171

DR-SGC209

600 x 550 x 910

300

Temperature range	5°C to 60°C
Temperature controller	Digital PID controller
Temperature accuracy	±1%
Temperature sensor	PT-100
Humidity range	50% to 90% RH
Humidity controller	Digital PID controller
Humidity accuracy	±3%
Light	150-170 micromole/m2/sec
Light timer	24×7 weekly digital timer
Construction	Double walled
Exterior	Mild steel powder coated
Interior	Stainless steel 304
Outer door	Single or double solid doors with lock & key
Inner door	Glass door to view samples
Shelves	3 to 12 (Height adjustable)
Safety	Audio / visual alarm for temperature deviation
Optional	Exterior made of stainless steel 304 / 316 PLC with HMI interface Data logger with USB interface Password protection for controller Caster wheels
Power supply	220 Volts / 50 Hz

STANDARD SIZE:

Model	Dimensions (mm)	Volume (Litres)	Volume (Cu. Ft.)
DR-SGC171	505 x 415 x 830	171	6
DR-SGC209	600 x 550 x 910	300	10
DR-SGC340	650 x 580 x 900	340	12
DR-SGC400	700 x 640 x 900	400	14
DR-SGC580	775 x 775 x 970	580	20

DR-SGC340

650 x 580 x 900

340

DR-SGC400

700 x 640 x 900

400

DR-SGC580

775 x 775 x 970

580
