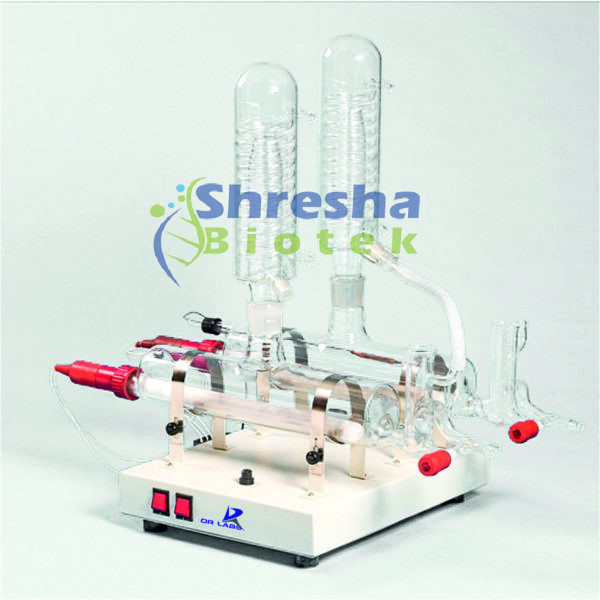

BOROSILICATE GLASS DOUBLE DISTILLATION UNIT

Product Code: DR-BGDSU

Categories: ANALYTICAL INSTRUMENTS, LABORATORY EQUIPMENTS

Features and Benefits

Borosilicate condenser and boiler are fitted with a removable silica sheathed heater and screw threaded connectors for ease of cleaning.
Distillate temperature is approx. between 25º to 45º C which is ensured by an efficient condenser.
The stand is powder coated for rust free operation and lustrous appearance.
The unit automatically switches off if water level in the boiler falls below heater.
Cooling water from the condenser is re-circulated into the boiling chamber, hence saving energy.
Drain nozzle/ Teflon Stop Cork is provided for easy cleaning and maintenance.
Electrical Power : 220/240 V, 50/60Hz, Single Phase Supply.

Technical Specifications

Model DR-BDDU
Parameters	Values
Specific Conductivity	0.8-1 μs/cm
Biological Activity (distillate quality)	Pyrogen Free
Organic Matter	Nil
Total Solids	0.1 mg/ltr
Silica	<0.01 mg/ltr
Output Capacity (Approx.)	2.5 – 4 Ltr/hr
Power Rating (Total)	6 KW
Cooling Water Consumption (Approx.)	150 Ltr/Hr

+91 82480 87694

info@shreshabiotek.com

@shreshabiotek

Item Name	CO2 Incubator
Model No.	DR-CO2-80UV	DR-CO2-80	DR-CO2-80+	DR-CO2-180UV	DR-CO2-180	DR-CO2-180+
Sterilization	UV	140°C	180°C	UV	140°C	180°C
Volume	80L	80L	80L	180L	180L	180L
Microprocessor-based controller	Proprietary algorithm to control CO2 and temperature
Display	LCD touch display
Temp control range	Ambient +5°C- 60°C
Temp stability	±0.1°C
Temp field uniformity	±0.3°C (at 37°C )
Timer function	0 – 999hr 59 min.
CO2 measurement principle	Infrared (IR) detection
CO2 control range	0-20%
CO2 display resolution	0.10%
CO2 supply	0.05~0.1MPa is recommended
Relative Humidity	Ambient humidity ~95% at 37°C
HEPA filtration	HEPA filters at the gas inlet, ISO 5 level, 5 minutes
Temperature recovery time	≤10 min (open door 30sec room temperature 25°C set value 37°C)
O2 concentration recovery time	≤5 min (open the door 30sec set value 5%)
MOC	The inner chamber is made up of stainless steel and outer chamber with MS with powder coating
Light	Florescent light
Historical data storage	250,000 messages
Data export interface	USB interface
Scalability	Up to 2 units can be stacked.
Working environment temperature	18~30°C
Power supply	230V±10%, 50~60Hz
Inner Dimensions (L x D x H) mm	450x450x450			550x600x600
Outer Dimensions (L x D x H) mm	650x650x750			750x800x850

Temperature Range	5°C to 60°C
Temperature accuracy	±1°C
Temperature controller	Microprocessor PID controller Display of SV & PV Low / High buzzer
Humidity Range	40% to 95% RH
Humidity accuracy	±3% RH
Humidity controller	Microprocessor PID controller Display of SV & PV Low / High buzzer
Chamber Illumination	Fluorescent white light
Construction	Double walled
Insulation	PUF insulation
Exterior	Powder coated GI sheet
Interior	Stainless steel 304
Door	Solid insulated door with lock and key
Inner door	Glass door fitted in steel frame
Shelves / trays	2 to 5 steel wire mesh trays (height adjustable)
Air Circulation	Axial fan / blower
Refrigeration	CFC Free compressor with condenser, motor and relay complete unit
Humidity system	SS tank with heater Low water buzzer Auto filling water system
Optional	Stainless steel exterior (GMP) PLC based HMI controller w/ USB interface RS 485 interface 21 CFR part 11 software UV light Storage racks Validation port Caster wheels with brake IQ, OQ and PQ documents
