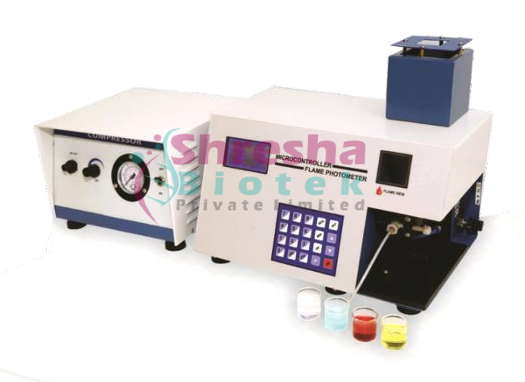

Microcontroller Flame Photometer (4 Filter)

Sale!

Product Code: DR-LI-1384

Categories: ANALYTICAL INSTRUMENTS, LABORATORY EQUIPMENTS

Original price was: ₹107,250.00.Current price is: ₹97,500.00.

Technical Specifications

Parameter	Specification
Model	LI-1384
Filters	4 filters: Na (Sodium), K (Potassium), Ca (Calcium), Li (Lithium) with compressor
General Range	Na: 0–100 ppm; K: 0–100 ppm; Ca: 0–100 ppm; Li: 0–100 ppm; Ba: 30–300 ppm
Serum Range	Na: 0–200 meq/l, 1:100 dilution; K: 0–10 meq/l, 1:100 dilution; Ca: 0–10 meq/l, 1:2 dilution; Li: 0–2 meq/l, 1:5 dilution
Urine Range	Na: 0–250 meq/l, 1:100 dilution; K: 0–100 meq/l, 1:100 dilution
Sensitivity – General Mode	Na: 0.5 ppm; K: 0.5 ppm; Li: 0.5 ppm; Ca: 15 ppm; Ba: 30 ppm
Filters	Na & K supplied; Ca, Li & Ba optional at extra cost; factory fitted only
Resolution	0.1 ppm / 0.1 meq
Reproducibility	< 1% coefficient of variation for 20 consecutive samples using 10 ppm Na set as Maximum Standard; up to 3% CV for 20 consecutive Ba samples between 50 to 199 ppm
Linearity	< 2% error when 3 ppm Na/K and 5 ppm Li are set as Maximum Standard
Curve-Fit Accuracy	± 2%
Display	128 × 64 graphical LCD
Average Time	In-built in software
Flame System	LPG & dry oil-free air
Detector	Photodiode
Calibration	Up to 25 user-selectable standards with curve-fitting software; 5 for each element; multiple calibration curves can be stored in memory
Aspiration Time	3 ml per minute
Gas Control	Adjustable with knob
Flame Failure	Auto detection
Gas Cutoff	Automatic
Ignition System	Auto ignition
Atomiser	Axial flow type
Dimensions	Instrument: 365 × 245 × 220 mm approx. (L × B × H)
PC Interface	USB; Main Unit: 8 kg approx.
Power Supply	230 V AC ±10%, 50 Hz
