₹324,500.00 Original price was: ₹324,500.00.₹295,000.00Current price is: ₹295,000.00.
Ultrasonic Processor – Technical Specifications
| Parameter | Specification |
| Output Power | 900 Watt |
| Frequency | 15–25 kHz, Auto Tracking |
| Frequency Tracking Accuracy | 1 Hz real-time tracking |
| Processing Capacity | 0.5 ml to 700 ml |
| Standard Probe | Ø 10 mm |
| Display | 7-inch Touch Screen |
| Display Function | Temperature, Power, Timer, Pulse ON/OFF Time |
| Temperature Range | 0–99°C |
| Power Supply | AC~220V, 50Hz |
| Timer | Yes, up to 99 hours, 59 minutes, 59 seconds |
| Optional Probe | 2 mm, 3 mm, 6 mm, 8 mm, 12 mm, 15 mm |
| Power Cord | Choice of 3 Pin Power Cord |
| Quality Checking | Three stages of quality checking before dispatch |
| Installation / Demonstration | Online installation/demonstration provided free of cost |
| Video CD | Demonstration/installation video CD provided free of cost |
| Optional Probe Price | Rs/- 26,900 per piece |
Caption

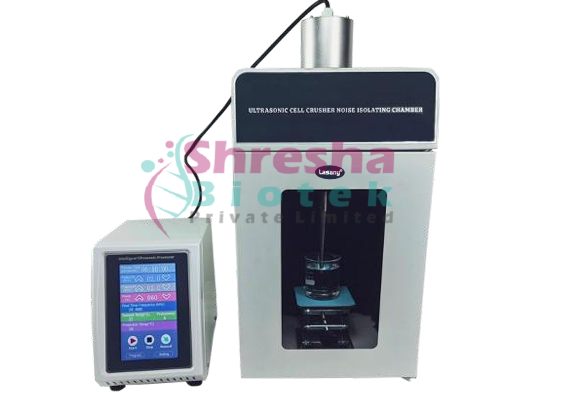

900 W Ultrasonic Processor with Touchscreen Control and Auto-Frequency Tracking
Description
A 900 W ultrasonic processor designed for laboratory sample processing with a frequency range of 15–25 kHz and automatic frequency tracking. It supports processing volumes from 0.5 ml to 700 ml, with a standard 10 mm probe and optional probes from 2 mm to 15 mm. The unit features a 7-inch touchscreen display for monitoring temperature, power, timer, and pulse ON/OFF functions, with a temperature range of 0–99°C and a programmable timer up to 99 hours, 59 minutes, 59 seconds.
SPECIFICATIONS:
| Temperature range | -10° C to -40°C |
|---|---|
| Temperature accuracy | ±0.5°C |
| Temperature Uniformity | ±0.1°C |
| Temperature controller | Dual display PID controller |
| Temperature sensor | PT100 |
| Inner chamber | SS 304 |
| External cabinet | Powder coated GI sheet |
| Insulation | Glass wool |
| Door | Insulated door Mechanical latch / clamp |
| Heaters | Resistance wire heaters |
| Shelves | SS wire mesh (removable) |
| Standard fittings | Mains on/off switch Load Indicator Fan on/off switch |
| Power supply | 220 Volts 50Hz |
| Optional | GMP construction (Inner & outer SS304) PLC + HMI controller w/ USB interface 21 CFR Part 11software Data logger w/ USB interface Thermal printer Inner chamber LED light |
| Air flow direction | Vertical and Horizontal |
|---|---|
| Air cleanliness | Class 100 |
| Construction | SS / Powder coated MS / GI sheet/ wooden with 18 gauge ss. |
| Sash (front door) | Manual/ Motorized sliding type (Acrylic transparent and tiffin glass) |
| Side panels | Acrylic /polycarbonate / SS |
| Air velocity | 0.4 m/s to 0.6 m/s/ 0.45m/sec |
| Illumination | Fluorescent or LED light/ UV light (800lux, glare-free) |
| Noise level | 65 ±5 dB |
| Power supply | 220 volts / 50 Hz |
| Air filtration |
|
| Air filtration |
|
| Optional |
|
SPECIFICATIONS:
| Model No. | DR-800D |
| Center Max. Temp. | 825°C |
| Low Level Temp. | 480°C |
| Heating Speed | 20min (to max. temp.) |
| Max. Sterilize Diameter | Φ35mm |
| Heating Element Length | 100mm |
| Adjustable Angle | 75°~120° |
| Voltage | AC 220V / AC 110V, 50/60Hz |
| Power | 400W |
| Fuse | 250V, 3A/5A, Ф5×20 |
| Dimension (WxDxH) | 92 x 101 x 170mm |
| Net Weight | 1.1kg |
SPECIFICATIONS:
| Temperature Range | 5°C to 60°C |
| Temperature accuracy | ±1°C |
| Temperature controller |
|
| Humidity Range | 40% to 95% RH |
| Humidity accuracy | ±3% RH |
| Humidity controller |
|
| Chamber Illumination | Fluorescent white light |
| Construction | Double walled |
| Insulation | PUF insulation |
| Exterior | Powder coated GI sheet |
| Interior | Stainless steel 304 |
| Door | Solid insulated door with lock and key |
| Inner door | Glass door fitted in steel frame |
| Shelves / trays | 2 to 5 steel wire mesh trays (height adjustable) |
| Air Circulation | Axial fan / blower |
| Refrigeration | CFC Free compressor with condenser, motor and relay complete unit |
| Humidity system |
|
| Optional |
|
| Volume (Liters) | Inner Chamber size (mm) | Trays | |
| 200 Liters | 600 x 600 x 600 | 2 | |
| 324 Liters | 600 x 600 x 900 | 2 | |
| 450 Liters | 600 x 600 x 1250 | 3 | |
| 600 Liters | 600 x 800 x 1250 | 3 | |
| 800 Liters | 800 x 800 x 1250 | 4 | |
| 1000 Liters | 800 x 800 x 1570 | 4 |
